- Product Details
- {{item.text}}
Quick Details
-
Color:
-
white, black
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
PID-SBD-088
-
Specification:
-
Stretch Digital Display, Shelf Edge Advertising Screen, Stretched Bar LCD Display, Stretched Bar LCD Screen
-
Brightness:
-
350 500 700 1000nits, 350 500 700 1000nits, 400 nits
-
Display Ratio:
-
16:9, 16:9
-
Response Time:
-
5s, 5s
-
Lifespan (hours):
-
3k/5k hours, 3k/5k hours
-
Installation Type:
-
Wall-mounted, Wall-mounted
-
HS Code:
-
8518591090
-
Resolution:
-
1080 P/ 2160P, 1920 *480
-
View Angle（H/V）:
-
178/178, 178/178
-
Product name:
-
Stretched Bar LCD Screens
-
Screen type:
-
LCD panel, WLED backlight
-
OS:
-
Android 7.1
-
Display size:
-
Standard and customized
-
Network:
-
WIFI2.4g/5.0g
-
CPU:
-
A40 (RK3288 optional )
-
Backlight:
-
WLED
-
Screen Size:
-
8.8 inch
Quick Details
-
Application:
-
Indoor
-
Type:
-
LCD
-
Brand Name:
-
PID
-
Color:
-
white, black
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
PID-SBD-088
-
Specification:
-
Stretch Digital Display, Shelf Edge Advertising Screen, Stretched Bar LCD Display, Stretched Bar LCD Screen
-
Brightness:
-
350 500 700 1000nits, 350 500 700 1000nits, 400 nits
-
Display Ratio:
-
16:9, 16:9
-
Response Time:
-
5s, 5s
-
Lifespan (hours):
-
3k/5k hours, 3k/5k hours
-
Installation Type:
-
Wall-mounted, Wall-mounted
-
HS Code:
-
8518591090
-
Resolution:
-
1080 P/ 2160P, 1920 *480
-
View Angle（H/V）:
-
178/178, 178/178
-
Product name:
-
Stretched Bar LCD Screens
-
Screen type:
-
LCD panel, WLED backlight
-
OS:
-
Android 7.1
-
Display size:
-
Standard and customized
-
Network:
-
WIFI2.4g/5.0g
-
CPU:
-
A40 (RK3288 optional )
-
Backlight:
-
WLED
-
Screen Size:
-
8.8 inch
Stretched bar LCD displays refer to a long strip liquid crystal display with an aspect ratio greater than that of ordinary displays. Due to its diverse sizes, clear displays, and rich functions, it is used in retail, transportation, banking, enterprises, and other industries, and its scope of use is expanding. . The combination of PID's LCD Stretched bar displays and the information release system(CMS) supports basic functions such as split-screen playback, time-sharing playback, and timing switch on and off ; supports terminal group management, account authority management, and system security management ; supports extended functions, such as object extraction and playback, Multi-screen synchronization, linkage playback , etc. Relying on excellent hardware quality, comprehensive software functions, and powerful system customization capabilities, PID's strip screens have been exported to more than 30 countries around the world. Application scenarios include retail shelves, subway platforms, bank windows, corporate elevators, and so on.
Content
can be uploaded to the internal Android media player manually from a USB stick or
remotely
by registering
them
to the cloud based software
(Via CMS publishing system)
CMS publishing system : Background server management software, set parameters, make the playlist, make split-screen files, support double videos, weather, streaming media, webpage, Word, Excel, PDF, PPT, text file display on one screen, download server video sources in real-time, autoplay after download completed.

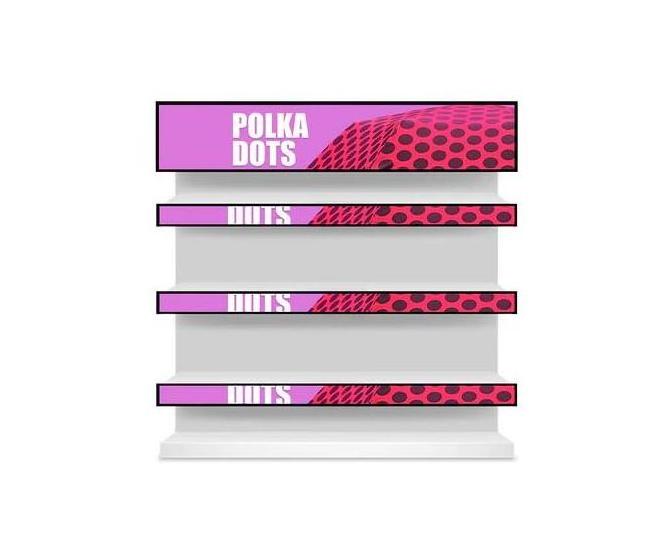

Multiple mounting options – wall mounting or shelf-edge mounting
Landscape and Portrait display mode can be freely switched
Application scenarios
Widely used in shops, shelf edges, museums, airports, hotels for products introduction and activity promotion.
Android Version's Configuration
| Screen Diagonal (Inch) | Available in a range of Screen Sizes from 16″ to 88″ |
| Resolution | Support 1080P HD |
| RAM | 2GB DDR3 (4G Optional) |
| Flash | 8GB eMMC (16G Optional) |
| WiFi | Wi-Fi 802.11.a |
| Display area | 698.4x196.4mm |
| I/O Interface | Micro USB ×1,TF card slot ×1, USB Type C ×1 |
| colors | 16.7M |
| Brightness (cd/m2) | 700 cd/m² |
| Contrast Ratio | 3000:1 |
| View Angels | 89/89/89/89 |
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours'Lifetime |
| Touch Options | PCAP (Customized) |
| tempered glass | Optional |
| CPU motherboard | Rockchip RK3288 Quadcore 2.0 GHz |
| OS | Android 7.1 |
| Picture format | Support JPG, BMP, PNG, GIF and other image formats |
| Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p, MP3/WMA/AAC etc. |
| Operating Temperature Range | 0~50°C |
| Placement | Landscape (24/7), Portrait (24/7) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
| Power Indicator | Green LED |
| Power Input | External Power Supply, DC 12V |
| Power Consumption | 22W |
| Build in Speakers | 4W * 2 |
| Product Weight | 6.5KG |
| Outlook Dimensions | 710*139*35mm |
| Color | Black or optional |
| Installation | Shelf mount, wall mountand stand on table are available |
| Materials | TFT LCD, aluminium profile, metal plate |
| Accessories: | Power adapter, manual, remote control, keys, tools, screws, warranty card |
| Packing Details: | Wooden/carton with foam inside |
Features
• Available in a range of Screen Sizes from 16″ to 88″.
• High Brightness Sunlight Readable LED Backlight
• Unique aspect ratio to catch viewers attention
• Available as enclosed monitors or component parts for integration
• Industrial grade LCD solutions for optimum performance and reliability
• PCAP Touch Screen options available
• Digital Signage / Monitors / Touch monitors design options available.
Production (Aging test)
1.We are your perfect
digital signage manufacturer
, offering the full package… everything you need to get your digital signage project off the ground.
2. Professional digital
signage specialists
and our focus is on providing the right solution for a project with an exceptional level of service.
You can choose to work with us entirely from start to finish or simply cherry-pick from our LCD/LED display products to compliment your project.
