Model No.
|
H500
|
|
|
Features
|
● Private Housing,
removable battery design
, can be charge by any Type C cable
|
|
|
|
● 1MP image(1280*800pixel), high perfermance on read 1D/2D barcodes.
|
|
|
|
● 3-in -1 transmission: Bluetooth/
NFC Pair
+2.4G USB dongle+
Type-C
Cable
|
|
|
|
●
600mAh
large-capacity lithium battery, battery can charge alone and replacable
|
|
|
|
● Multi Scan mode: Trigger mode,
touch scan
mode,auto trigger mode
|
|
|
|

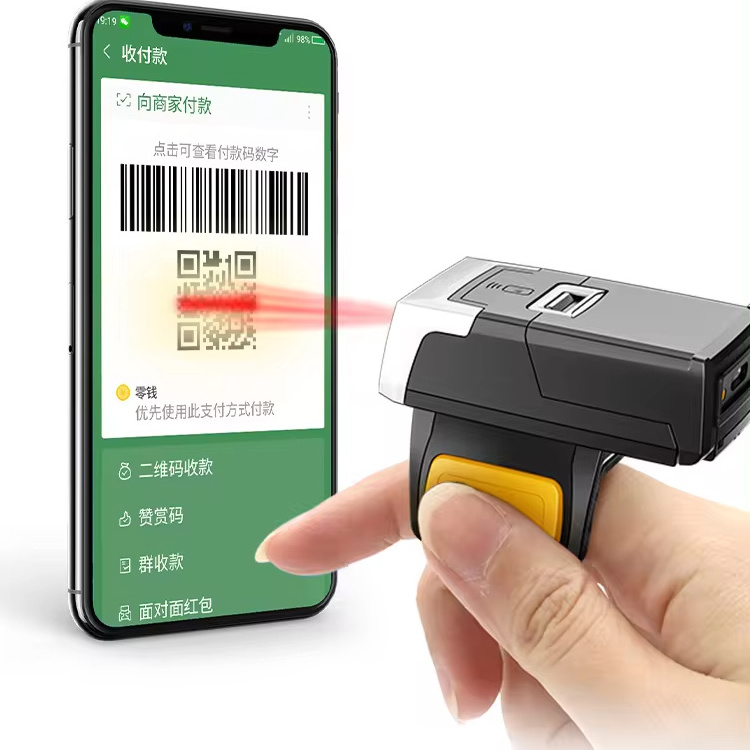

● Can wear in finger,glove and lanyard donning
|
|
|
|
● 180degree rotation,can be freely
handle by left and right hand
|
|
|
|
● Support double
firmware upgrade online:
wireless and decoding.
|
|
|
|
● 2m drop resistance,
IP54
Waterproof
|
|
|
Application
|
Mainly used in business, warehousing, express delivery, some industries etc
|
|
|
Operation Parameter
|
|
|
|
Image Sensor
|
CMOS
|
|
|
Image(Pixels)
|
1280 pixels(H)*800 pixels(v)
|
|
|
Light Source
|
Aiming: 617 nm LED; illumination:4500K LED
|
|
|
Frame Rate
|
60fps
|
|
|
Depth of Field
|
30-350mm @ UPC/EAN 13mil PCS=90%; 40-400mm @ QR 20mil PCS=100%
|
|
|
Rotation Angle
|
180°/can be freely handle by left and right hand
|
|
|
Field of view
|
34° horizontal, 28° vertical
|
|
|
Scan Mode
|
Trigger mode, touch scan mode,auto trigger mode
|
|
|
Firmware update
|
Decoder and wireless update online
|
|
|
Minimum Resolution
|
≥ 4mil (code39)
|
|
|
Print Contrast
|
≥ 25%
|
|
|
Visual Indicator
|
Blue LED Light,Red charge light, Buzzer and vibration
|
|
|
Interfaces
|
USB-TypeC, RS-232, 2.4G, blue BLE4.0(Optional) , Virtual serial Port
|
|
|
Transmission Mode
|
USB-typeB, 2.4G, Bluetooth BLE4.0(Optional)
|
|
|
Transmission Range
|
2.4G: 50meters, Bluetooth:40meters ( (on open air))
|
|
|
Memory
|
Up to 512000bits (38000 EAN 13 codes)
|
|
|
Paired Mode
|
one to one, or one to more (Optional)
|
|
|
Beeper Operation
|
Programmable tone & Volume
|
|
|
Decoding Capability
|
2D： QR Code, Data Matrix, PDF417,Aztec, Hanxin code, Maxicode,etc.
|
|
|
|
1D： UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN
128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5 IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded, OCR passport, ID card, aztec, driver license |
|
|
Physical Parameter
|
|
|
|
Dimension L x W x H
|
64.5mm(L)*34.5mm(W)*20.5mm(H) (scanner)
64.5mm(L)*40.5mm(W)*46.5mm(H) (scanner+finger set) |
|
|
Weight
|
69g
|
|
|
Cable
|
USB-Type-C charge cable
|
|
|
Case Material
|
ABS+PC+Metal
|
|
|
Power Parameter
|
|
|
|
Input Voltage
|
5VDC±10%
|
|
|
Working corrent
|
1000mA
|
|
|
Battery Parameters
|
|
|
|
Battery Capacity
|
600mAh
|
|
|
Charge Mode
|
Cable chage directly, charging time 2-3h, can work 8h continously
|
|
|
Laser Class
|
CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI
|
|
|
Environmental Parameters
|
|
|
|
Operating Temperature
|
"-20℃~+60℃
|
|
|
Working Humidity
|
5% to 95% relative humidity, non-condensing
|
|
|
Storage Temperature
|
"-40℃~+70℃
|
|
|
Light Levels
|
0~100,000Lux(Daylight)
|
|
|
Drop Durability
|
Designed to withstand 2 Meters drop
|
|
|
Certificate
|
CE,FCC,ROHS,LVD, EMC, COC, BIS etc.
|
|
