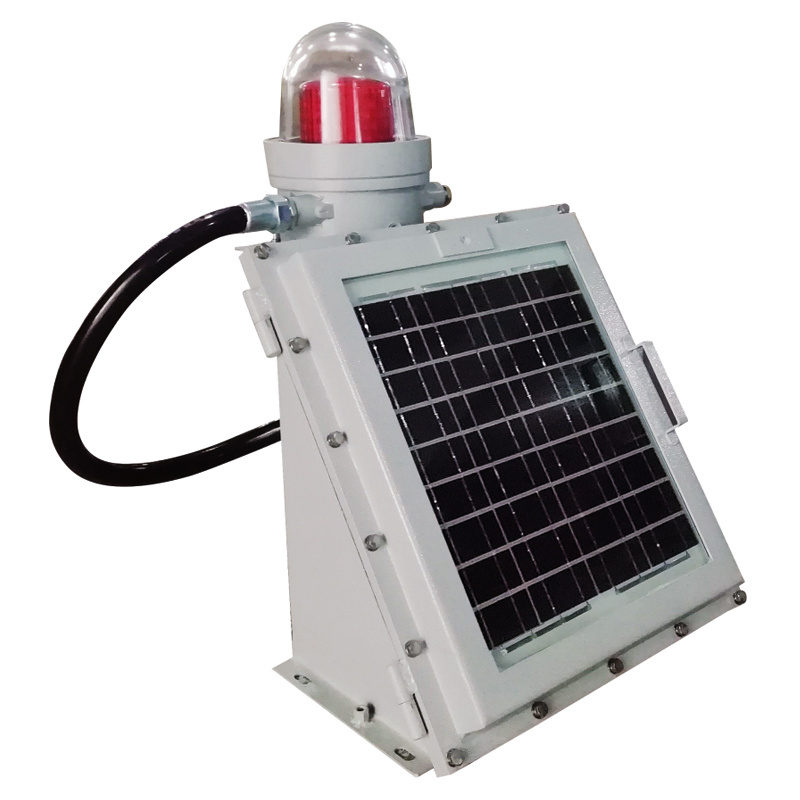

High Quality Explosion Proof Aviation Obstruction Light IP66 Safety Aircraft Warning Light Solar Explosion Proof Tower Light
High Quality Explosion Proof Aviation Obstruction Light IP66 Safety Aircraft Warning Light Solar Explosion Proof Tower Light
High Quality Explosion Proof Aviation Obstruction Light IP66 Safety Aircraft Warning Light Solar Explosion Proof Tower Light
High Quality Explosion Proof Aviation Obstruction Light IP66 Safety Aircraft Warning Light Solar Explosion Proof Tower Light
High Quality Explosion Proof Aviation Obstruction Light IP66 Safety Aircraft Warning Light Solar Explosion Proof Tower Light
High Quality Explosion Proof Aviation Obstruction Light IP66 Safety Aircraft Warning Light Solar Explosion Proof Tower Light
High Quality Explosion Proof Aviation Obstruction Light IP66 Safety Aircraft Warning Light Solar Explosion Proof Tower Light
High Quality Explosion Proof Aviation Obstruction Light IP66 Safety Aircraft Warning Light Solar Explosion Proof Tower Light

High Quality Explosion Proof Aviation Obstruction Light IP66 Safety Aircraft Warning Light Solar Explosion Proof Tower Light

FOB Reference Price: Get Latest Price
≥2 Pieces
US $386.1
≥200 Pieces
US $385.5
≥500 Pieces
US $381.8
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Light Source:
LED
Product Weight(kg):
54.6
Input Voltage(V):
AC/DC 24V,AC/DC 36V,AC 220V,AC 380V
Lamp Luminous Flux(lm):
1200-4800
CRI (Ra):
85
Beam Angle(°):
18
Place of Origin:
Zhejiang, China
Brand Name:
Shen Hai
Alias 1:
Explosion Proof Aviation Light,Explosion Proof Aviation Warning Light
Alias 2:
Explosion Proof Aviation Obstruction Light
Function:
Provide Safe Navigation And Warning For Aircraft
Place Of Use:
Industry,Gas Station,Refinery,Spray Booth,Hazardous Locations
Characteristic:
Waterproof,Dustproof And Corrosion-Resistant
Mounting Style:
Bracket Type,Boom Type,Wall Type,Guardrail Type,Flange Type
Security Level:
WF2,Ex d e mb IIC T6 Gb,Ex tD A21 IP66 T80℃
Applicable Scope:
Zone 1,Zone 2,Zone 21,Zone 22;IIA IIB IIC Explosive Gas Environments
Flash Rate(times/min):
20-60
Wattage Range Of This Series:
10W,20W,30W,40W

Quick Details

Warranty(Year):
1-Year
Color Temperature(CCT):
COOL WHITE
Lamp Body Material:
Aluminum Alloy
Light Source:
LED
Product Weight(kg):
54.6
Input Voltage(V):
AC/DC 24V,AC/DC 36V,AC 220V,AC 380V
Lamp Luminous Flux(lm):
1200-4800
CRI (Ra):
85
Beam Angle(°):
18
Place of Origin:
Zhejiang, China
Brand Name:
Shen Hai
Alias 1:
Explosion Proof Aviation Light,Explosion Proof Aviation Warning Light
Alias 2:
Explosion Proof Aviation Obstruction Light
Function:
Provide Safe Navigation And Warning For Aircraft
Place Of Use:
Industry,Gas Station,Refinery,Spray Booth,Hazardous Locations
Characteristic:
Waterproof,Dustproof And Corrosion-Resistant
Mounting Style:
Bracket Type,Boom Type,Wall Type,Guardrail Type,Flange Type
Security Level:
WF2,Ex d e mb IIC T6 Gb,Ex tD A21 IP66 T80℃
Applicable Scope:
Zone 1,Zone 2,Zone 21,Zone 22;IIA IIB IIC Explosive Gas Environments
Flash Rate(times/min):
20-60
Wattage Range Of This Series:
10W,20W,30W,40W
Product Parameters
Model and specification
Explosion proof sign
Light source
Power (W)
Average life (h)
Flash rate (times/min)
Weight (kg)
Ex db IIC T6 Gb
Ex tb IIIC T80℃ Db
LED
10~40
50000
20~60
4.6
AC380V
40~60
4800~7200
42
Rated voltage/frequency
Inlet thread
Cable outer diameter
Degree of protection
Anti corrosion grade
220V/50Hz
G3/4
Φ10~Φ14mm
IP66
WF2
Product Description
1. Aluminum alloy die-casting shell, with high voltage electrostatic spraying on the surface, is corrosion resistant and aging resistant; 2. The transparent parts are made of imported engineering resin, which is UV resistant and anti glare, and the light is soft, which can effectively avoid discomfort and fatigue caused by light; 3. Exposed stainless steel fasteners have high anti-corrosion performance; 4. All external detachable parts of the lamp shall be provided with anti falling measures; 5. The joint surface adopts high temperature resistant silicone rubber sealing ring, with the protection performance up to IP66, which can be used indoors and outdoors 6. Special terminal blocks are set inside, with reliable wire connection and convenient maintenance; 7. The new energy-saving and environment-friendly LED light source has small light attenuation and a service life of up to 100000 hours; 8. Special constant current power supply, low power consumption, constant output power, open circuit, short circuit, overheating protection functions, high power factor up to 0.9 or more; 9. This series of lamps are equipped with cable clamping sealing device, which can be used for steel pipe or cable wiring.
1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment; 2. It is applicable to the places in Zone 21 and 22 of combustible dust environment; 3. Suitable for IIA, IIB and IIC explosive gas environment; 4. Applicable to T1~T6 temperature groups; 5. It is applicable to energy-saving transformation projects and places where maintenance and replacement are difficult; 6. It is widely used on fixed buildings, structures and airport moving objects such as oil exploration, oil refining, chemical industry, gas station, textile, food processing, offshore oil platforms and oil tankers.
