- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Gold
-
Model Number:
-
WCZ Proton Magnetometer
-
Key Word:
-
Proton Magnetometer
-
Product name:
-
Proton Magnetometer
-
Function:
-
Proton Magnetometer
-
Weight:
-
1.5Kg (including battery)
-
Working temperature:
-
-10 °C~+50 °C
-
Port:
-
USB standard serial port
-
Certification:
-
fluxgate magnetometer
Quick Details
-
Warranty:
-
3 years
-
Power:
-
Electronic
-
Customized support:
-
Proton Magnetometer
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Gold
-
Model Number:
-
WCZ Proton Magnetometer
-
Key Word:
-
Proton Magnetometer
-
Product name:
-
Proton Magnetometer
-
Function:
-
Proton Magnetometer
-
Weight:
-
1.5Kg (including battery)
-
Working temperature:
-
-10 °C~+50 °C
-
Port:
-
USB standard serial port
-
Certification:
-
fluxgate magnetometer
WCZ Mineral Engineering Prospecting Proton Magnetometer

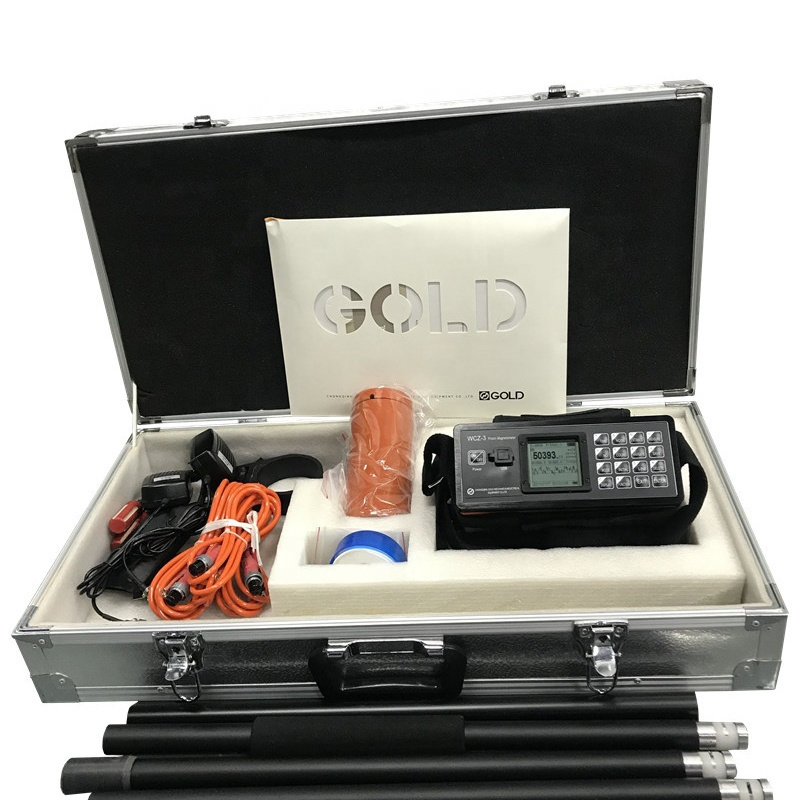

1. Equipment Show:
2. Technical Specification:
|
Channels |
1. channel(standard configuration, for separate gradient measurement) |
|
2. channels(optional, for simultaneous gradient measurement) |
|
|
Measuring range |
20,000 nT ~ 100,000nT |
|
Accuracy |
±1nT |
|
Resolution |
0.1nT |
|
Gradient permitted |
≤8,000nT/m |
|
Measuring speed |
larger than 2s/reading |
|
Station measuring interval |
2~60s, optional |
|
Data stored |
large than 2 billion points readings, with power-off protection |
|
GPS Positioning accuracy |
higher than 2.5m CEP |
|
LCD display |
160×160, with backlight |
|
Keyboard input |
16 keys |
|
Port |
USB standard serial port |
|
Power source |
Rechargeable lithium battery (for 4000 times reading), external power supply optional (12V) |
|
Console dimension |
206mm × 85mm ×155mm |
|
Weight |
1.5Kg (including battery) |
|
Sensor size |
φ75mm×155mm |
|
Sensor weight |
0.8 Kg |
|
Working temperature |
-10 °C~+50 °C |
3. Application and Feature:
1. Mineral survey, such as iron ore, lead-zinc ore, copper ore
2.Mineral prospecting as mineral ore depth, orientation, continuity and ore shape, size and scale
3.Oil, natural gas survey, related geological structure
4.General survey, local survey and geological mapping
5.Base station for aerial or marine magnetic survey
6.Fault detection
7. Archaeology
8. Hydrogeology
9. Engineering survey, such as pipe prospecting
10. Monitoring earthquake auspice, volcano and other environmental disasters.
11.Small ferromagnetic material prospecting.
4. Why Choose Us?
(1) Gold Supplier on Alibaba —— Reliable Supplier with Good Reputation
(2 ) Factory Direct Sale —— Competitive Price & Full Stock
(3) Quality Control —— High Quality
(4) Low MOQ —— Accept 1 Piece
(5) Accept OEM —— Supply Products as Customers' Requirements
(6) Fast Delivery —— Delivery within 1-5 Working Days
(7) Various Payment Terms —— T/T, Wstern Union, L/C ……
(8) Changing or Refunding —— Accept Returns
5. Warmly Welcome to Visit Our Company and Factory!!
