1.6KWH Solar Panel Kit 400 Watt 12Volt for RV Off Grid with Battery and Inverter Portable 400W Solar Panels

1.6KWH Solar Panel Kit 400 Watt 12Volt for RV Off Grid with Battery and Inverter Portable 400W Solar Panels

FOB Reference Price: Get Latest Price

≥2 Pieces

US $660

≥100 Pieces

US $655

≥1000 Pieces

US $650

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Controller Type:: MPPT

Special Features:: RV Port, External Battery

Model Number:: 12v100ah

Place of Origin:: Guangdong, China

Brand Name:: Rong ke or custom your logo

Product name:: 1.6KWH Solar Panel Kit 400W 12Volt

Keywords:: Engery Storage Lifepo4 Battery

Material:: Tempered Glass Aluminum

Size:: 38.6 * 21.1 * 1.4 inches

Nominal Voltage:: 12volt

Amperage Capacity:: 3.76 Amps

Connector Type:: MC4

Included Components:: Solar Panel

Type:: Li-Ion/lithium/lifepo4

Maximum Power:: 100 Watts

Quick Details

Power Source:: Solar Panel, Other

Battery Type:: LiFePO4

Inverter Type:: Pure Sine Wave

Controller Type:: MPPT

Special Features:: RV Port, External Battery

Model Number:: 12v100ah

Place of Origin:: Guangdong, China

Brand Name:: Rong ke or custom your logo

Product name:: 1.6KWH Solar Panel Kit 400W 12Volt

Keywords:: Engery Storage Lifepo4 Battery

Material:: Tempered Glass Aluminum

Size:: 38.6 * 21.1 * 1.4 inches

Nominal Voltage:: 12volt

Amperage Capacity:: 3.76 Amps

Connector Type:: MC4

Included Components:: Solar Panel

Type:: Li-Ion/lithium/lifepo4

Maximum Power:: 100 Watts

Product Description

whole house solar power system whole house solar power system solar power system 5kw solar power station portable solar power station portable solar battery lifepo4 portable solar power systems portable solar power systems portable power station with solar panels on grid solar power systems on grid solar power systems off-grid solar power systems lithium lifepo4 battery lithium iron phosphate battery cells lithium iron phosphate battery cells lithium iron phosphate battery 48v lithium iron phosphate battery 48v lithium iron phosphate battery 12v lithium iron phosphate battery 12v lithium ion battery pack 48v lithium battery lifepo4 lithium battery lifepo4 lifepo4 solar battery lifepo4 solar battery lifepo4 lithium battery lifepo4 battery solar lifepo4 battery solar lifepo4 battery price lifepo4 battery canada lifepo4 battery canada lifepo4 battery 24v lifepo4 battery lithium batteries 12v 12v lithium battery lifepo4 lithium battery solar battery lithium batteries 100ah lifepo4 battery marine battery 12v battery

Products Description

100W Solar Panel

* Rated power: 100W
* Open-Circuit Voltage (Voc): 21.6V
* Short circuit current (Isc): 6.13A
* Working current (Iop): 5.78A
* Output Tolerance: ±3%
* Temperature range: -40℃to +80℃
* Size: 985*535*35mm（38.8*21.0*1.4 inch）
* Weight:18.96 pounds

40A MPPT Charge Controller

* Nominal Battery Voltage: 12/24 Vdc
* Battery Voltage Range: 9 ~ 30Vdc
* Max.Battery Current: 40A
* Max.PV Open-Circuit Voltage: 100V
* Load Current Rating: 20A
* Dimensions: 8.66x5.83x2.52 inch
* Weight: 3.31 lbs
* IP (Ingress protection): IP42

12V 100AH Lithium Battery

* Battery Capacity: 100AH
* Battery Voltage: 12.8V
* Maximum Charge/ Discharge Current: 50A/100A
* Maximum Charge Voltage/Discharge Cut-Off Voltage: 14.6V/10V
* Battery Size: 10.2*6.6*8.2inch
* Weight: 26.5 Ibs

1000W 12V Pure Sine Wave Inverter

* Output Continuous Watts(W): 1100W + 18W USB
* Surge Capacity (PeakPower): 2200W
* Rated Input DC (V,A): 12V Battery, 100A
* Rated Frequency (Hz): 60Hz±1
* Rated Output AC (V,A): 115Vac±10%, 9.5A
* Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max)
* Fuse (A): 30A*4
* Dimensions (L*W*H): 13.5*9.8*4.1 in
* Assembled Weight (kg): 8.05 lbs

Specification

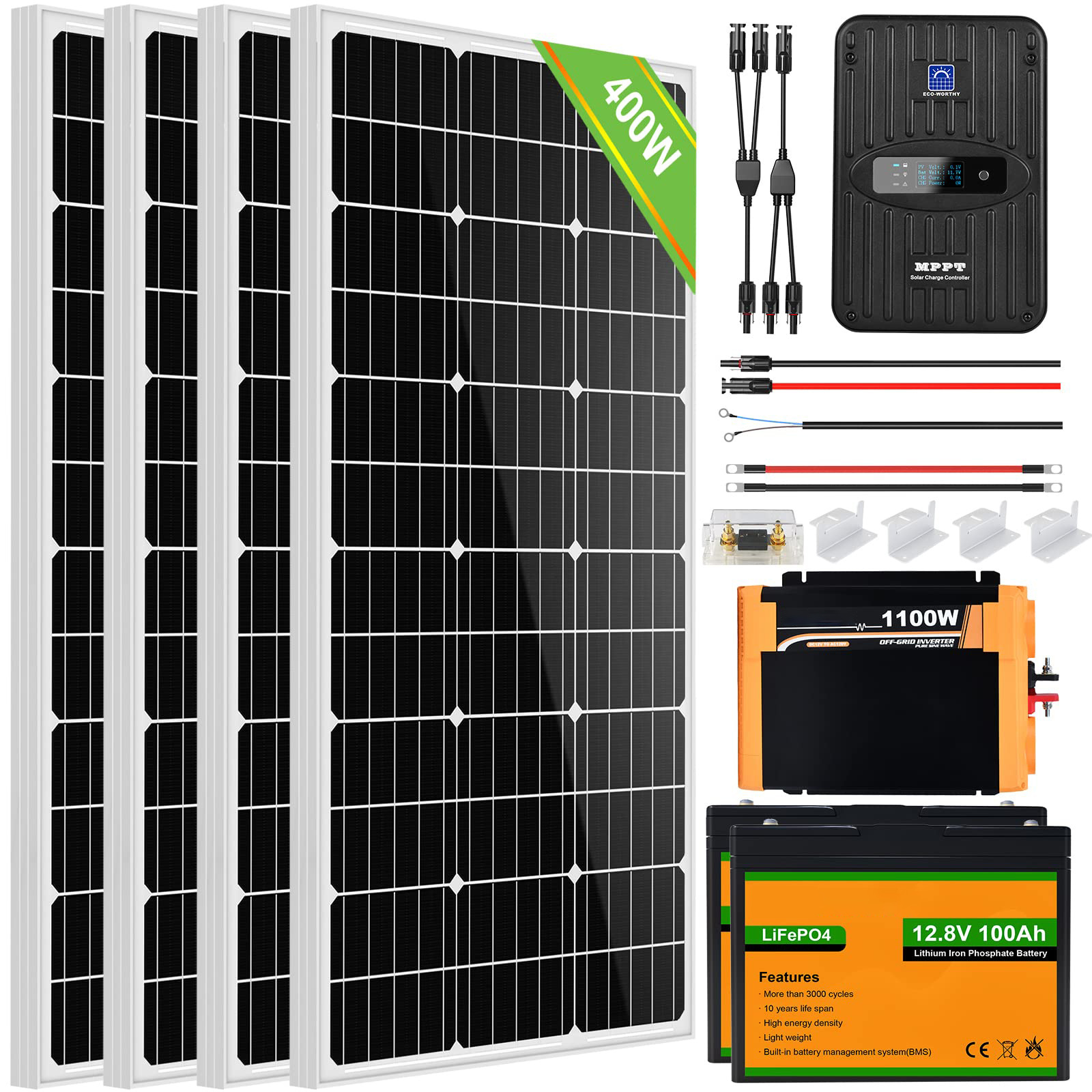

1.6KWH Solar Panel Kit 400W 12Volt for RV Off Grid with Battery and Inverter: 400W Solar Panels + 40A MPPT Charge Controller + 12V 200Ah Lithium Battery + Upgraded 1100W Power Inverter

	200W Solar Kit	400W Solar Kit	800W Solar Kit	1200W Solar Kit	2000W Solar Kit
Light -- 20w	32 Hrs	68 Hrs	124 Hrs	124 Hrs	244 Hrs
Fans -- 50w	16 Hrs	26 Hrs	52 Hrs	52 Hrs	100 Hrs
Laptop -- 60w	16 Hrs	24 Hrs	44 Hrs	44 Hrs	84 Hrs
