Automatic High Efficient Hamburger Patty And Meat Pie Forming Machine Chicken Nugget Production Line

Automatic High Efficient Hamburger Patty And Meat Pie Forming Machine Chicken Nugget Production Line

FOB Reference Price: Get Latest Price

≥1 Sets

US $25000

≥5 Sets

US $20000

≥10 Sets

US $19800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: OrangeMech

Voltage:: 380V/220V

Power:: 6.5KW

Dimension(L*W*H):: 109500*11800*15500mm

Weight:: 4000 KG

Marketing Type:: Hot Product2022

Name:: Chicken Nugget Production Line

Material:: 304 Stainless Steel Chicken Nugget Production Line

Meat chopper volume:: 120L cutlet making machine

Capacity of meat mixing machine:: 225kg/min

Oven temperature:: 20-300℃

Capacity of oven:: 80-200kg/h

Raw material:: Meat Chicken Fish Pork Beef Mutton

Final product:: Chicken Pork Mutton Beef Ball

MOQ:: 1 Set Chicken Nugget Production Line

Function:: Hamburger Patty Molding

Quick Details

Application:: making meat products

Production Capacity:: 100-1000kg/h

Place of Origin:: Henan, China

Brand Name:: OrangeMech

Voltage:: 380V/220V

Power:: 6.5KW

Dimension(L*W*H):: 109500*11800*15500mm

Weight:: 4000 KG

Marketing Type:: Hot Product2022

Name:: Chicken Nugget Production Line

Material:: 304 Stainless Steel Chicken Nugget Production Line

Meat chopper volume:: 120L cutlet making machine

Capacity of meat mixing machine:: 225kg/min

Oven temperature:: 20-300℃

Capacity of oven:: 80-200kg/h

Raw material:: Meat Chicken Fish Pork Beef Mutton

Final product:: Chicken Pork Mutton Beef Ball

MOQ:: 1 Set Chicken Nugget Production Line

Function:: Hamburger Patty Molding

Automatic High Efficient Hamburger Patty And Meat Pie Forming Machine Chicken Nugget Production Line

Product Description

◆ Details Description ◆

Meat Blender

Production capacity: 225 kg/min Rotating speed of auger: 75 r/min Voltage: 38v Hopper capacity: 300l Motor power: 2.2kw Discharge method: Automatic discharge

Meat Chopper

Capacity: 90 kg/times

Volume: 120l Voltage: 380v/50Hz (3 phase)

Total Power: 21.85kw Knife Quantities: 6 pcs Knife Speed: 0-4000 r/min Dimension: 2135*1460*1420 mm

Weight: 1800kg

Patty Forming Machine

Power: 15kw Capacity: 500~1000 kg/h Speed: 15~60 b atch /min Product Thickness: 6~40mm Weight Error: ≤1% Diameter: max 130mm Pressure: 3~15Mpa

Mesh belt speed: 3-15m/min Input and output height: 1050±50mm Dimension: 3150*1180*2430 mm

Lifting machine

Lifting weight: 250kg Lifting height: 2200mm (max) Dimensions: 1510*1550*3200mm Power: 1.5KW

Meat Starching Machine

Power: 0.62kw Conveyor speed: 3-15m/min(adjustable) lnput: 1000±50mmOutput: 1000±50mm Conveyor Width: 200mm
Dimension: 1390*550*1320mm

Crumb Breading Machine

Power: 1.1kw Conveyor speed: 3-15m/min(adjustable) lnput: 870-970mm Output:1000±50mm Conveyor Width: 200mm Dimension: 1680*550*1400mm

◆ Specification ◆

1. Multi- purpose, Wide Range Of Applicable Raw Materials And Abundant Products

2. Various Shapes Of Products Can Be Made According To Customer Requirements

3. Low Power Consumption And Cost Saving

4. It Is Quick To Change The Product, Just Change The Template

5. The Whole Machine Is Made Of Stainless Steel And Other Food Materials, Which Meets Hygienic Standards And Is Easy To Clean Without Dead Corners

6. The Whole Machine Adopts European Safe Electrical Design

7. The Weight Of The Product Is Easy To Adjust, And The Thickness Of The Product Is 6-30mm

8. The Patty Production Line Is Easy To Operate And Has A High Degree Of Automation.

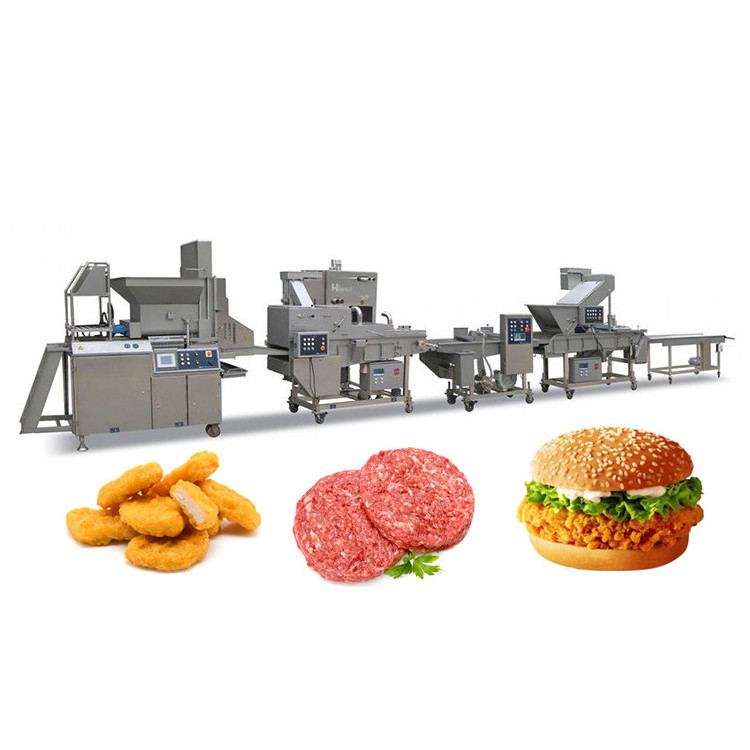

The Hamburger Patty Production Line Is A Machine To Produce Different Thicknesses And Specifications Of Burgers By Forming, Battering, Coating, Deep Frying And Freezing The Mixed Ingredients. The Template Can Be Changed To Produce Different Shapes (round, Triangular, Oval, Cartoon Chicken Nugget, Irregular Shapes). The Meatloaf Line Is Suitable For Meat, Fish, Vegetables, Cheese And Their Mixes. The Fish Cake Line Is Equipped With Pre-treatment And Post-treatment Equipment: Grinding, Mixing, Frying, Packaging, Etc. The Fully Automatic Meat Cake Line Completes A Complete Line For Fast Food Preparation.
