Quick Details
-
Weight:
-
500-1000kg
-
Size:
-
Varies with model
-
Power:
-
0.55-1.5kw
-
Productivity:
-
Varies with model
-
Weight (KG):
-
500 kg
-
Application:
-
Wastewater Tertment
-
Certification:
-
CE, BV, ISO
-
Color:
-
As Client Request
-
Type:
-
Circular
-
Delivery Time:
-
15-30 Working Days
-
Voltage:
-
As Per Order
-
Screen Size:
-
300*500mm-1000*1500mm
-
Drum Length:
-
600-2400mm
-
Water Flowrate:
-
80-250m3/h
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Water Master
-
Material:
-
Plywood case, SS304/316
-
Weight:
-
500-1000kg
-
Size:
-
Varies with model
-
Power:
-
0.55-1.5kw
-
Productivity:
-
Varies with model
-
Weight (KG):
-
500 kg
-
Application:
-
Wastewater Tertment
-
Certification:
-
CE, BV, ISO
-
Color:
-
As Client Request
-
Type:
-
Circular
-
Delivery Time:
-
15-30 Working Days
-
Voltage:
-
As Per Order
-
Screen Size:
-
300*500mm-1000*1500mm
-
Drum Length:
-
600-2400mm
-
Water Flowrate:
-
80-250m3/h
Products Description
Micro Screen Drum Filter
Operation mode of the equipment is continuous filtration. When water enters into the drum, drum starts working under the control of auto-control system along with the backwash pump.
Filtrate is pumped by backwash pump to backwash the filter screen. The particles generated by backwash is gathered into collection tank and removed from the equipment through discharge.
Filtration operating along with the backwash.When no water runs through the equipment, the
Filtrate is pumped by backwash pump to backwash the filter screen. The particles generated by backwash is gathered into collection tank and removed from the equipment through discharge.
Filtration operating along with the backwash.When no water runs through the equipment, the
equipment will stop automatically.
Product Paramenters
|
Model
|
Item
|
Specification
|
|
|
|
|||
|
|
|
WMMF-5000
|
WMMF-10000
|
WMMF-20000
|
WMMF-30000
|
|||
|
1
|
Capacity (m3/d)
|
5000
|
10000
|
20000
|
30000
|
|||
|
2
|
Dimension (mm) L*W*H
|
2650*1000*2200
|
2950*1700*2200
|
3900*1700*2200
|
5100*1700*2200
|
|||
|
3
|
Filter Diameter (mm)
|
1000
|
1290
|
|
|
|||
|
4
|
Filter Length (mm)
|
1200
|
1200
|
2400
|
3600
|
|||
|
5
|
Filter Mesh (um)
|
5-100
|
|
|
|
|||
|
6
|
Inlet Pipe Diameter(mm)
|
DN300
|
DN500
|
DN600
|
DN700
|
|||
|
7
|
Outlet Pipe Diameter(mm)
|
DN300
|
DN700
|
|
|
|||
|
8
|
Discharge Pipe Diamter(mm)
|
DN150
|
|
|
|
|||
|
9
|
Motor (kw)
|
Reducer 0.75; Backwash pump 2.2
|
|
|
|
|||
|
10
|
Flushing Pressure(mH2O)
|
60
|
|
|
|
|||
|
11
|
Flushing Flow Rate(m3/d)
|
20
|
30
|
60
|
90
|
|||
|
12
|
Headloss (cm)
|
<30
|
|
|
|
|||
|
13
|
Equipment Weight(t)
|
1.2
|
1.6
|
2
|
2.2
|
|||
The equipment consists of five parts:
main structure, filter screen, driving motor, driving gear, backwash pump,
backwash nozzle, auto-control system.
backwash nozzle, auto-control system.
Application
Features
* Long service life of the filter screen
The service life of Filter screen can be up to 10 years
* Easy to replace the filter screen
Separate meshes can be removed independently without affecting other filters.
* Strong impact load
Equipment can be operated when the inlet SS is not higher than 40mg/L.
* Filtering can run continuously
Backwashing and filtering do not affect each other.
* Small water head loss
Water head loss is less than 30cm.
* The discharge water quality is good
Outlet water SS is less than 10mg/L
* Fully automated control
* Small footprint
With the same amount of treated water, the area of precision filtration equipment is much
smaller than other filtration equipment.
* Back washing consumes less water
Impurities are not easy to accumulate on the filter, the backwash high-pressure water can
remove the impurities easily.
The water is taken from the filtrate, and the water consumption is 0.3%, much lower than other
similar filters 3%-5%.
Reduce the burden of post-processing of backwash wastewater
* Low operating energy consumption The power consumption is 1/4 of other similar filter screens.
The service life of Filter screen can be up to 10 years
* Easy to replace the filter screen
Separate meshes can be removed independently without affecting other filters.
* Strong impact load
Equipment can be operated when the inlet SS is not higher than 40mg/L.
* Filtering can run continuously
Backwashing and filtering do not affect each other.
* Small water head loss
Water head loss is less than 30cm.
* The discharge water quality is good
Outlet water SS is less than 10mg/L
* Fully automated control
* Small footprint
With the same amount of treated water, the area of precision filtration equipment is much
smaller than other filtration equipment.
* Back washing consumes less water
Impurities are not easy to accumulate on the filter, the backwash high-pressure water can
remove the impurities easily.
The water is taken from the filtrate, and the water consumption is 0.3%, much lower than other
similar filters 3%-5%.
Reduce the burden of post-processing of backwash wastewater
* Low operating energy consumption The power consumption is 1/4 of other similar filter screens.

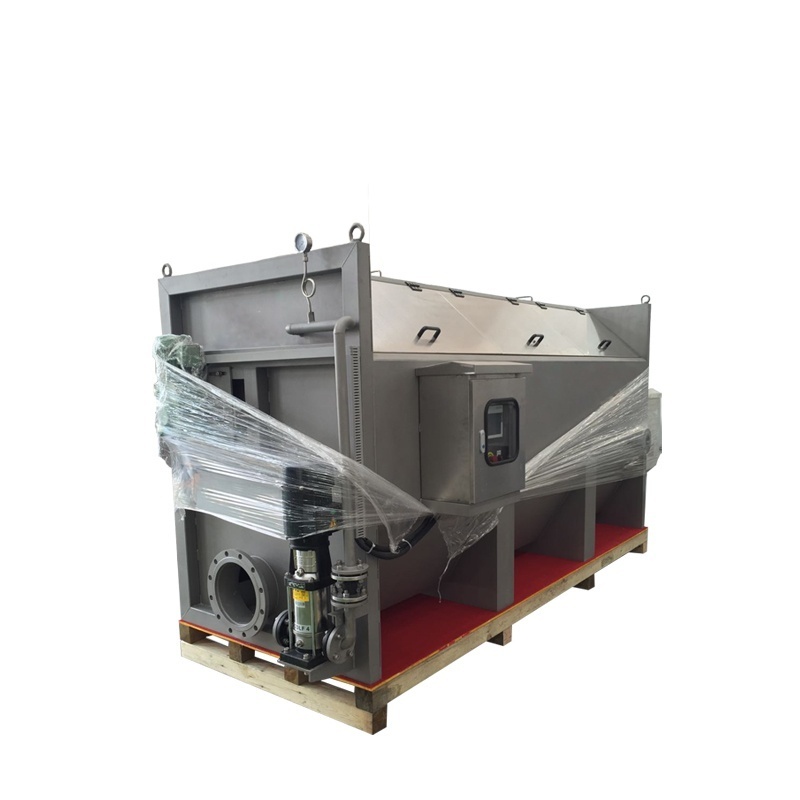

Product packaging
