Quick Details
-
Model Number:
-
2V025-08, 2V025-08
-
Brand Name:
-
VPC
-
Stem:
-
aluminum
-
Working Temperature:
-
-10-80
-
Working pressure:
-
0-0.1Mpa
-
ways:
-
2Port 2Position
-
Working medium:
-
Clean Air
-
Certificate:
-
ISO9001 CE ROHS
-
Coil Type:
-
Din type/flying leads
Quick Details
-
Port Size:
-
1/8'' 1/4''
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
2V025-08, 2V025-08
-
Brand Name:
-
VPC
-
Stem:
-
aluminum
-
Working Temperature:
-
-10-80
-
Working pressure:
-
0-0.1Mpa
-
ways:
-
2Port 2Position
-
Working medium:
-
Clean Air
-
Certificate:
-
ISO9001 CE ROHS
-
Coil Type:
-
Din type/flying leads

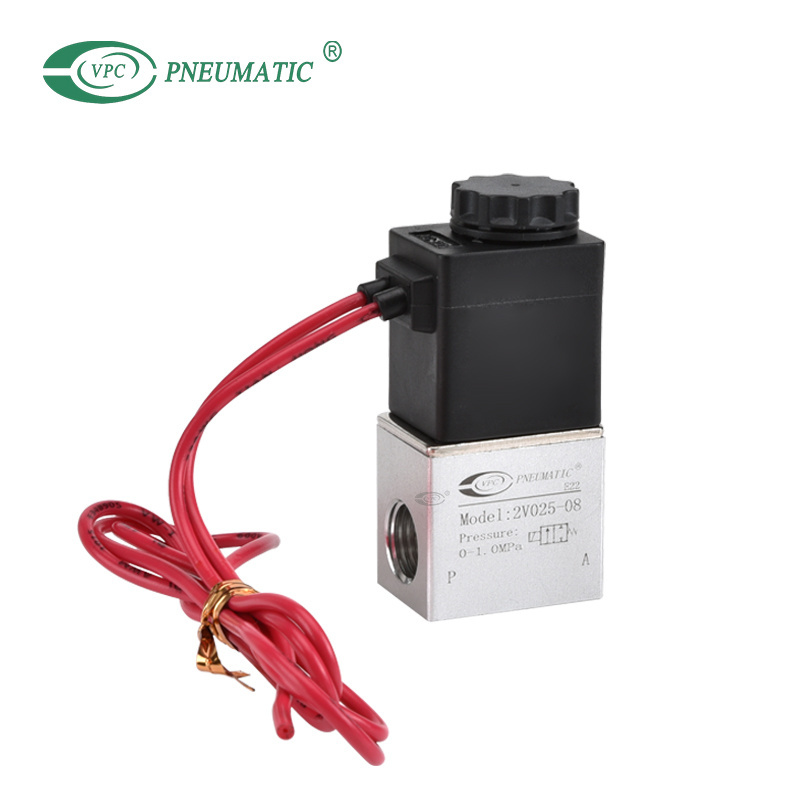

2V025-08 Air Ride Suspension Valve 1/4" NPT Pneumatic Electric Solenoid Valve
* 2V series is direct acting or pilot type normally closed (NC) 2/2 way solenoid valve;
* Wide size rnage from 1/8" to 1" connection,available body:brass;
* Multiple seals are available for different medium;
* Availability of fluid type:steam,oil,water,gas;
* To reduce the power consumpiton of 80% energy-saving.
* Wide size rnage from 1/8" to 1" connection,available body:brass;
* Multiple seals are available for different medium;
* Availability of fluid type:steam,oil,water,gas;
* To reduce the power consumpiton of 80% energy-saving.
|
Model
|
2V025-08
|
2V130-15
|
2V250-25
|
||
|
Working Medium
|
Air、Water、Oil、Gas
|
|
|
||
|
Acting Type
|
Direct Acting Type
|
Pilot Type
|
|
||
|
Control Style
|
Normal Close
|
|
|
||
|
Orifice
|
2.5mm
|
13mm
|
25mm
|
||
|
CV Value
|
0.23
|
6.2
|
23
|
||
|
Joint Size
|
G1/4"
|
G1/2''
|
G1''
|
||
|
Medium Viscidity
|
≤20CST
|
|
|
||
|
Working Pressure
|
0~0.8Mpa
|
0.05~0.7Mpa
|
|
||
|
MAX.Pressure
|
1.2Mpa
|
1.05Mpa
|
|
||
|
Working Temperature
|
-5°C to 80°C
|
|
|
||
|
Voltage Range
|
±10%
|
|
|
||
|
Valve Body
|
Brass, Aluminum alloy
|
|
|
||
|
Seal Material
|
NBR, VITON
|
NBR
|
|
||
|
Shortest Activate Time
|
0.05S
|
|
|
||
HOW TO ORDER
Ordering Code
2V Series Solenoid Valve
2V 025 - 06
AC110V
2V→Type Code
2V: 2V Series Solenoid Valve
025→Orifice
025: 2.5mm 130: 13mm 250: 25mm
025→Orifice
025: 2.5mm 130: 13mm 250: 25mm
06→Joint Size
06: 1/8" 08: 1/4" 10: 3/8"
15:1/2" 20: 3/4" 25: 1"
AC110V→Standard Voltage
DC12V DC24V
AC24V 50/60H
Z
AC110V 50/60H
Z
AC220V 50/60H
Z
AC380V 50/60H
Z
