Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
2.2Kw
-
Dimension(L*W*H):
-
1450*700*1450mm
-
Weight:
-
360Kg
-
Certification:
-
CE
-
Name:
-
Roti/Chapati/Tortilla/Arabic Bread/Pita Bread Production Line
-
Material:
-
304 Stainless Steel
-
Capacity:
-
300-500pcs/h
-
Dough Mixer:
-
50L/75L
-
Dough Sheeter:
-
Belt Width 330/500mm
-
Forming machine:
-
Belt Width 330/500mm
-
Oven Type:
-
Tunnel
Quick Details
-
Production Capacity:
-
300-500pcs/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Volland
-
Voltage:
-
220V/380V
-
Power:
-
2.2Kw
-
Dimension(L*W*H):
-
1450*700*1450mm
-
Weight:
-
360Kg
-
Certification:
-
CE
-
Name:
-
Roti/Chapati/Tortilla/Arabic Bread/Pita Bread Production Line
-
Material:
-
304 Stainless Steel
-
Capacity:
-
300-500pcs/h
-
Dough Mixer:
-
50L/75L
-
Dough Sheeter:
-
Belt Width 330/500mm
-
Forming machine:
-
Belt Width 330/500mm
-
Oven Type:
-
Tunnel
1. Introduction of Naan Bread machine line
The full flour tortilla/arabic bread/pita bread/chapati/roti production line mainly includes 4 machines: dough mixer, dough sheeter, pita bread maker, baking oven. And the cooling tunnel is an option for the whole line.
Dough Mixer
Operation:
1.Turn on the power supply, switch on, starting up to make the machine run normally;
2.Put the flour and other materials and water into the dough bucket to stir, after stirring to the requirement, pull out the plug, tilt the bucket down 90 degrees and pour out dough.
|
Model |
VLD-50 |
VLD-75 |
|
Capacity |
50L/batch |
75L/batch |
|
Motor Power |
3kw/380v |
4kw/380v |
|
Weight of Machine |
150kg |
170kg |
|
Dimension |
1050*680*950 |
1130*720*1150 |
Dough Sheeter
Operation:
1.Check whether the fasteners are loose before use. Turn on the power, rotate 5-10 minutes according to the arrow on the belt guard.
2.Sprinkle the flour on the dough at the entrance. Adjust the upper and lower roll gaps to roll the dough between the two rolls.
3.The dough is rotated and repeated several times until the desired hardness of the dough is reached.The thickness of the dough can be adjusted.
4. After each use, the machine should be cleaned, the edible oil should be coated on the surface of the roller.
|
Model |
VLD-350 |
|
Width of dough roller |
350mm |
|
Capacity |
350kg/h |
|
Power |
3kw |
|
Weight of Machine |
150kg |
|
Dimension |
1330*615*1060mm |
Pita Bread Maker
Put the dough wrapper into the hopper, roll it through roller, and convey it from the conveyor belt. The powder box sprinkles flour on the dough, and then formed by the mold roll. The scrap is transferred from the belt to the original hopper.
|
Model |
VLD-330 |
VLD-380 |
|
Width of dough wrapper |
330mm |
380mm |
|
Speed |
210-300piece/minutes |
1000piece/h |
|
Motor Power |
3kw/220v |
3kw 220/380v |
|
Weight of Machine |
280kg |
350kg |
|
Dimension |
1200*730*1200 |
1700*780*1200 |
Pita Baking Oven(Tunnel type)
Conveyor the dough wrapper formed by mold to the oven, it is roasted in the tunnel uniformly. The oven can be customized to two layers, three layers to make sure two sides of dough wrapper will be oven well.
|
Model |
VLD-275 |
|
Power |
1.2kw |
|
Voltage |
220v/50HZ |
|
Weight |
560kg |
|
Dimension |
2750*930*1200mm |
2. Features of Naan Bread machine line
1. Thickness adjustable,Maximum thickness:10mm, minmum thickness:0.6mm.
2. Bread diameter can be customized as your requirements
3. Easy operation,moulds can be changed easily within 5 minutes
4. Watse recycling system,the waste can be used twice directly.
5. Stainless steel roller ,PU conveyor,makes the production hygienically.
the below data is only for the reference, since different clients ask the different size, the machine size is not same, need to confirm with us for the final.

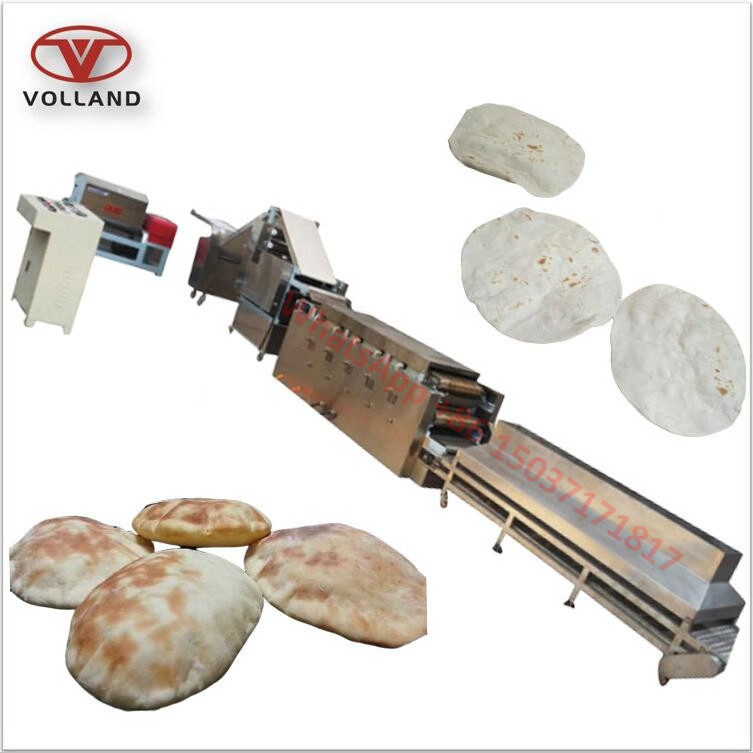

3. Photos of Naan Bread machine line
4. Final Products
