Quick Details
-
Filling Accuracy:
-
±0.5-1%
-
Packaging Type:
-
Strong Wooden Case
-
Voltage:
-
220V/380V 50/60Hz
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Solidpack
-
Dimension(L*W*H):
-
2000*900*2200mm (L*W*H)
-
Weight:
-
450 KG
-
Product name:
-

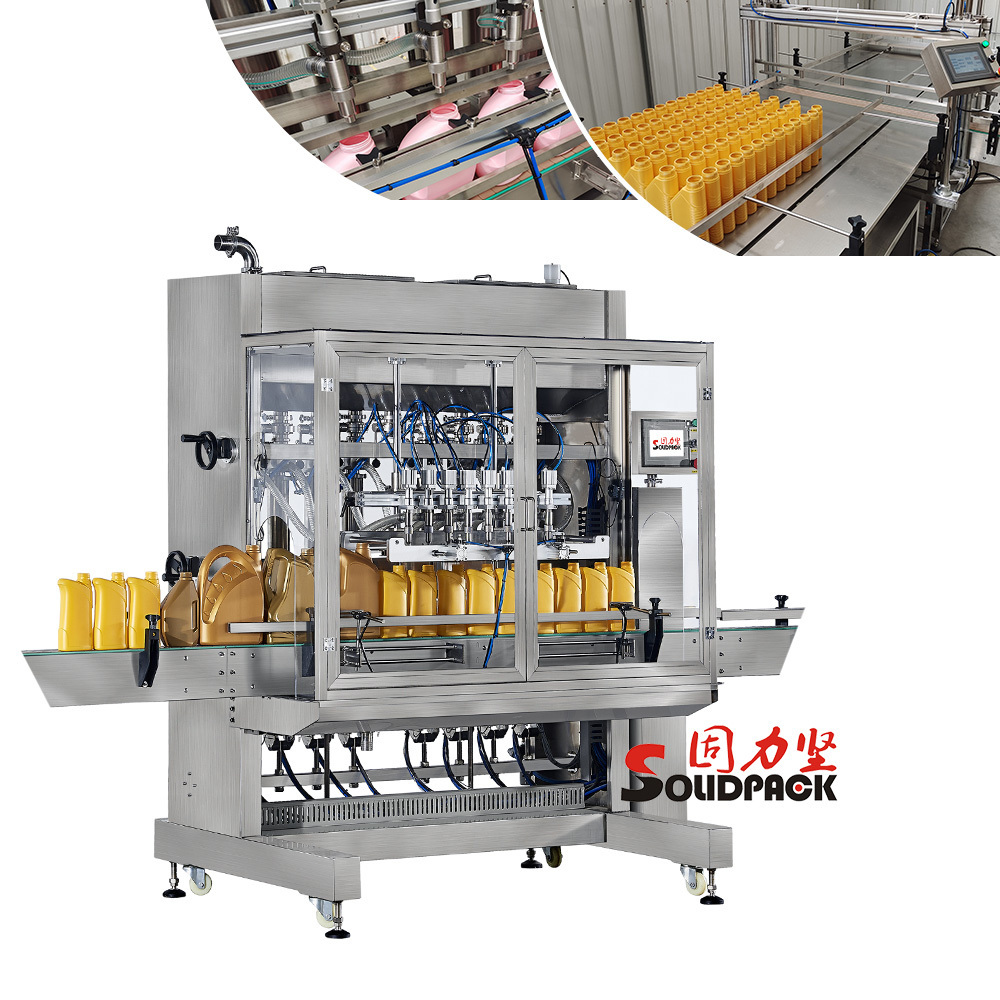

Piston Filling Machine
-
Keywords:
-
Filling Machine
-
Suitable for:
-
High Viscous Products
-
Usage:
-
Filling Capping Labeling Packaging
-
Material:
-
Stainless Steel 304/316
-
Feature:
-
High Precision Filling Level
-
Certification:
-
CE
-
Control:
-
PLC+touch screen
-
Advantage:
-
15 Years Experiences
-
Operation:
-
Automatic Operation
Quick Details
-
Machinery Capacity:
-
Other, 2000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Other, Oil
-
Filling Accuracy:
-
±0.5-1%
-
Packaging Type:
-
Strong Wooden Case
-
Voltage:
-
220V/380V 50/60Hz
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Solidpack
-
Dimension(L*W*H):
-
2000*900*2200mm (L*W*H)
-
Weight:
-
450 KG
-
Product name:
-
Piston Filling Machine
-
Keywords:
-
Filling Machine
-
Suitable for:
-
High Viscous Products
-
Usage:
-
Filling Capping Labeling Packaging
-
Material:
-
Stainless Steel 304/316
-
Feature:
-
High Precision Filling Level
-
Certification:
-
CE
-
Control:
-
PLC+touch screen
-
Advantage:
-
15 Years Experiences
-
Operation:
-
Automatic Operation
Our Advantages
Product Description
Introduction :
This machine adopts piston pump and rotary valve, suitable for filling all kinds of thick & sticky material:
In food industry like edible oil, yogurt, tomato paste, chilli sauce, honey, butter, ketchup lunch meat etc.
In cleaning liquid and cosmetic industry, like shampoo, liquid soap, hand sanitizer, laundry detergent, shower gel, cream, lotion, hair gel, etc.
In car products industry, like motor oil, lube oil, antifreeze, brake fluid, fuel additive, screen cleaning liquid etc
In pharmaceutical industry, like syrup, oral liquid , alcohol etc.
The machine can be made with 4 filling heads/ 6 filling heads/ 8 filling heads/ 10 filling heads/ 12filling heads ,16 filling heads, 18 filling heads etc, according to the filling capacity customers needed.
Specification
|
Material
|
SUS304 and SUS316L
|
|
|
|
|
||||
|
Filling heads
|
4
|
6
|
8
|
10
|
12
|
||||
|
Filling range
|
10-100ml/ 30-300ml/ 50-500ml/ 100-1000ml/ 250-2500mml/ 300-3000ml/ 500-5000ml
(600-6000ml can be tailor made) |
|
|
|
|
||||
|
Filling speed
(bottles/ hour & based on 500ml bottle)
|
2000-2500
|
2500-3000
|
3000-3500
|
3500-4000
|
4000-4500
|
||||
|
Filling precision
|
±0.5-1%
|
|
|
|
|
||||
|
Power
|
220/380V 50/60Hz 1.5Kw (Can be tailor made to suit different countries)
|
|
|
|
|
||||
|
Air pressure
|
0.4-0.6Mpa
|
|
|
|
|
||||
|
Machine size
(L*W*Hmm)
|
2000*900*2200
|
2400*900*2200
|
2800*900*2200
|
3200*900*2200
|
3500*900*2200
|
||||
|
Weight
|
450Kg
|
500Kg
|
550Kg
|
600Kg
|
650Kg
|
||||
