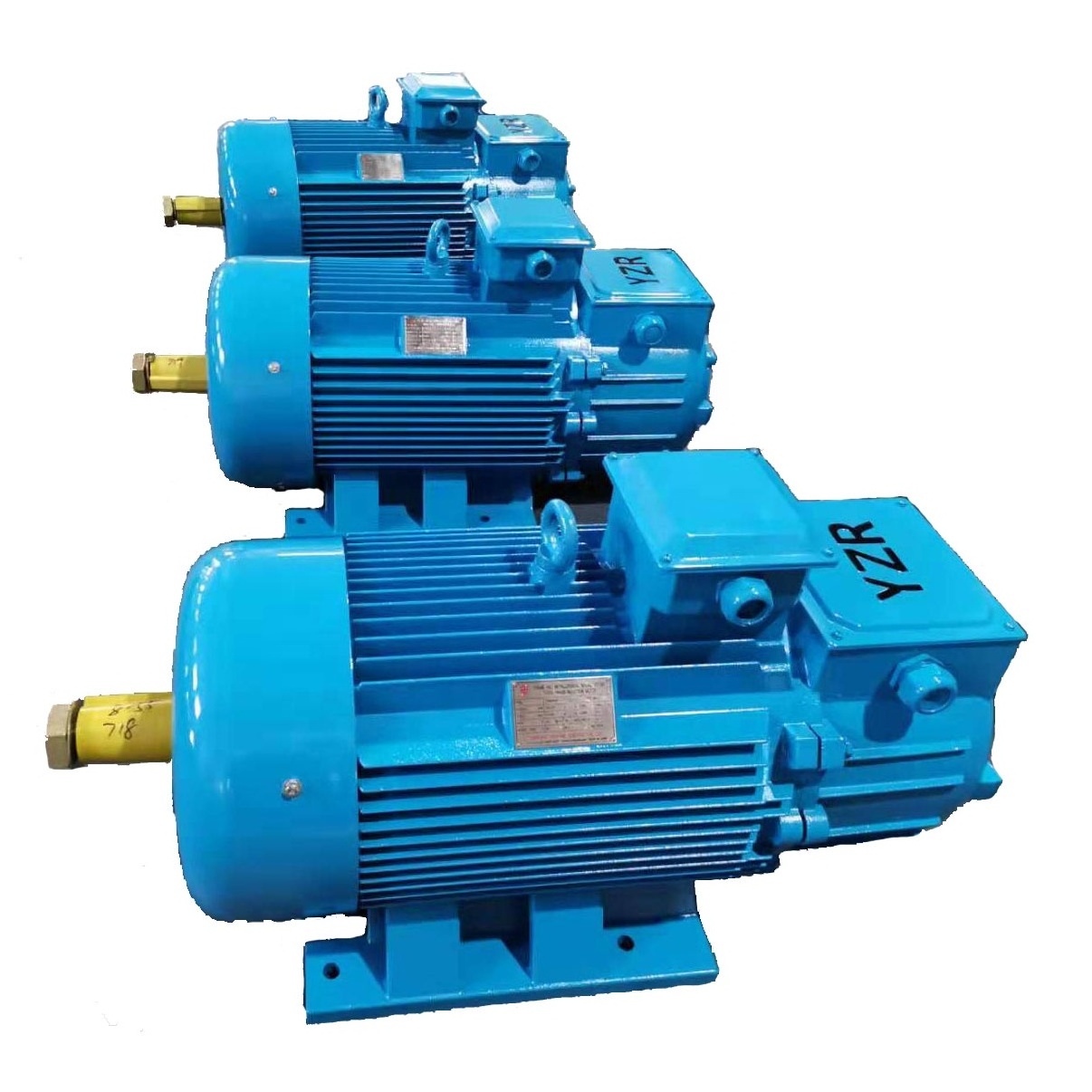

Crane and Metallurgical AC Asynchronous Electric Motor
YZR. YZ. Series motor for crane and metallurgical uses, featured with large overload capacity and adequate mechanical strength, is specially suitable for driving various types of crane and metallurgical machine or other similar equipment.
YZR series motor is of wound rotor type, while YZ series motor is of squirrel cage type.
1. Rated volttage: 380v/50hz, or as required
2. Protection class: IP44, IP54, IP55
3. Cooling method: IC411, IC410
4. Insulation class: F, H
5. Working conditions:
Ambinet temperature: <40 o C
Altitude: <1000m
There are eight types of duty type for these series motors, S2,S3,S4,S5,S6,S7,S8 and S9. The basic duty type is S3-40% (duty type is S3, cyclic duration factor is 40%, each cyclic is 10min). The following duty types are most useful to these series motors.
1.Short-time duty type (S2)
Operation of constant load during a given time, less than that required to reach thermal equilibrium, followed by a rest and de-energized period of sufficient duration to re-establish machine temperature within 2 deg K of the coolant.
2. Intermittent periodic duty type (S3)
A sequence of identical duty cycles, each including a period of operation at constant load and a rest and de-energized period but the operation period are so short that it is not sufficient for the machine to reach thermal equilibrium In this duty type, the cycle is such that the starting current does not significantly affect the temperature rise.
3. Intermittent periodic duty type with starting (S4)
A sequence of identical duty cycles, each including a significant period of starting, a period of operation of constant load and a rest and de-energized period, but the operation period are so short that it is not sufficient for the machine to reach thermal equilibrium.
4. Intermittent periodic duty type with electric braking (S5)
A sequence of identical duty cycles, each consisting of a period of starting, a period of operation at constant load and a rest and de-energized period, but the operation period are so short that it is not sufficient for the machine to reach thermal equilibrium.
5. The motor will operate satisfactorily under following conditions:
(1) Ambient temperature not exceeding 40
o
C (for crane uses) or 60
o
C (for metallurgical uses).
(2) Not above sea-level 1000m.
(3) Frequent and significant mechanical vibration and shocks.
(4) Frequent starting, braking (electrical or mechanical) or reversing.
6. The rated frequency of the motor is 50Hz and rated voltage is 380V.
7. Connection: The stator winding is connected in Y for 132kW and below and in Δ for the rest. In Y with zero lead is also supplied.
1. YZ series motors under S3(40%) duty
| YZ series | |||||||||
| Working method | S3 40% | ||||||||
| Frame size | Rated output | Rated current | Rated speed | Tmax/Tn | Tst/Tn | Ist/In | Eff. | Power factor | Jm |
| Kw | A | rpm | % | cosφ | Kg.m 2 | ||||
| synchronous speed: 1000rpm | |||||||||
| 112M | 1.5 | 4.25 | 920 | 2.7 | 2.44 | 4.47 | 69.5 | 0.765 | 0.02 |
| 132M1 | 2.2 | 5.9 | 935 | 2.9 | 3.1 | 5.16 | 74 | 0.745 | 0.053 |
| 132M2 | 3.7 | 8.8 | 912 | 2.8 | 3 | 5.54 | 79 | 0.79 | 0.058 |
| 160M1 | 5.5 | 12.5 | 933 | 2.7 | 2.5 | 4.9 | 80.6 | 0.83 | 0.105 |
| 160M2 | 7.5 | 15.9 | 948 | 2.9 | 2.4 | 5.52 | 83 | 0.84 | 0.133 |
| 160L | 11 | 24.6 | 953 | 2.9 | 2.7 | 6.17 | 84 | 0.85 | 0.178 |
| synchronous speed: 750rpm | |||||||||
| 160L | 7.5 | 18 | 705 | 2.7 | 2.5 | 5.1 | 82 | 0.74 | 0.178 |
| 180L | 11 | 25.8 | 694 | 2.5 | 2.6 | 4.9 | 80.9 | 0.811 | 0.33 |
| 200L | 15 | 33.1 | 710 | 2.8 | 2.7 | 6.1 | 85 | 0.8 | 0.58 |
| 225M | 22 | 45.8 | 712 | 2.9 | 2.9 | 6.2 | 84 | 0.83 | 0.75 |
| 250M1 | 30 | 63.3 | 694 | 2.54 | 2.7 | 5.47 | 85 | 0.84 | 1.33 |
