Quick Details
-
Weight (KG):
-
400 KG
-
Place of Origin:
-
China
-
Brand Name:
-
Farfly
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
customized
-
Power (kW):
-
5.5 kW
-
After-sales Service Provided:
-
High Speed Disperser
-
Name:
-
Chemical hydraulic lifting high speed paint disperser
-
Function:
-
Mixing Liquid-Solidoid Materials
-
Motor:
-
Explosion-proof
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
CE ISO9001:2000
-
Usage:
-
Mixing Proucts
Quick Details
-
Barrel Volume (L):
-
200
-
Max. Loading Volume (L):
-
200 L
-
Range of Spindle Speed(r.p.m):
-
1 - 1450 r.p.m
-
Weight (KG):
-
400 KG
-
Place of Origin:
-
China
-
Brand Name:
-
Farfly
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
customized
-
Power (kW):
-
5.5 kW
-
After-sales Service Provided:
-
High Speed Disperser
-
Name:
-
Chemical hydraulic lifting high speed paint disperser
-
Function:
-
Mixing Liquid-Solidoid Materials
-
Motor:
-
Explosion-proof
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
CE ISO9001:2000
-
Usage:
-
Mixing Proucts

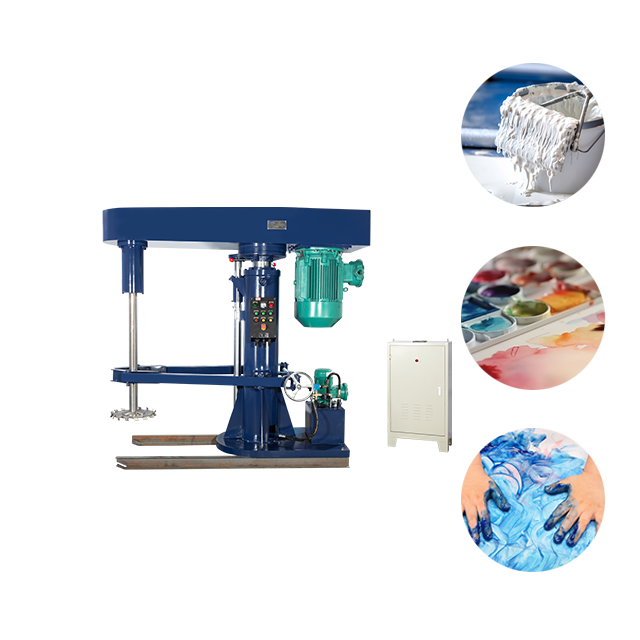

The series of FDG high speed mixers are suitable for producing paint, ink, coating, dyestuff, paper making, etc... in chemical industry. The mixers are used for wet dispersing and mixing liquid-solid material. On-grade speed adjustment by frequency converters, hydraulic elevating, steady work, good dispersing effect, easy maintenance.
|
type/parameter
|
power kW
|
speed rpm
|
disc diameter
mm |
lifting height mm
|
pump power
kW |
handling
capcity kg/h |
weight
kg |
size mm
L*W*H |
|
FDG1.5/2.2
|
1.5/2.2
|
0-1450
|
150
|
600
|
0.55
|
50-100
|
120
|
940*350*1400
|
|
FDG4/5.5
|
4/5.5
|
0-1450
|
200
|
800
|
0.55
|
100-200
|
400
|
1300*600*1700
|
|
FDG7.5/11
|
7.5/11
|
0-1450
|
250
|
900
|
0.55
|
400-600
|
800
|
1800*900*1750
|
|
FDG22/30
|
22/30
|
0-1450
|
350
|
1200
|
0.75
|
600-1200
|
1500
|
2100*900*1750
|
|
FDG37/45
|
37/45
|
0-1200
|
400/450
|
1300
|
1.1
|
1200-2000
|
2000
|
2300*1000*2250
|
|
FDG55/75
|
55/75
|
0-1200
|
500/550
|
1600
|
1.5
|
2000-3000
|
2500
|
2500*1200*2500
|
|
FDG90/110
|
90/110
|
|
|
|
|
|
|
customize
|
|
FDG132/160
|
132/160
|
|
|
|
|
|
|
customize
|
|
FDG200/220
|
200/220
|
|
|
|
|
|
|
customize
|
|
FDG250
|
250
|
|
|
|
|
|
|
customize
|
