Product name:
-
4 in 1 QAM Modulator
-
Input Version 1:
-
8 DVB-C/T/T2/ISDBT/S/S2/S2X/ATSC FTA Tuner + 6 ASI input+256 IP input
-
Input Version 2:
-
4 DVB-C/S/S2/ATSC Tuner with CAM + 6 ASI
-
Remote management:
-
Web NMS
-
Language:
-
English and Chinese
-
QAM Channel:
-
4
-
Dimension (W*D*H):
-
482mmx300mmx44.5mm
-
Temperature:
-
0~45℃(Operation) ; -20~80℃(Storage)
-
Power:
-
AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOFTEL
-
Model Number:
-
SFT3343D
-
Product name:
-
4 in 1 QAM Modulator
-
Input Version 1:
-
8 DVB-C/T/T2/ISDBT/S/S2/S2X/ATSC FTA Tuner + 6 ASI input+256 IP input
-
Input Version 2:
-
4 DVB-C/S/S2/ATSC Tuner with CAM + 6 ASI
-
Remote management:
-
Web NMS
-
Language:
-
English and Chinese
-
QAM Channel:
-
4
-
Dimension (W*D*H):
-
482mmx300mmx44.5mm
-
Temperature:
-
0~45℃(Operation) ; -20~80℃(Storage)
-
Power:
-
AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ
Product Description
Version 1
Version 2

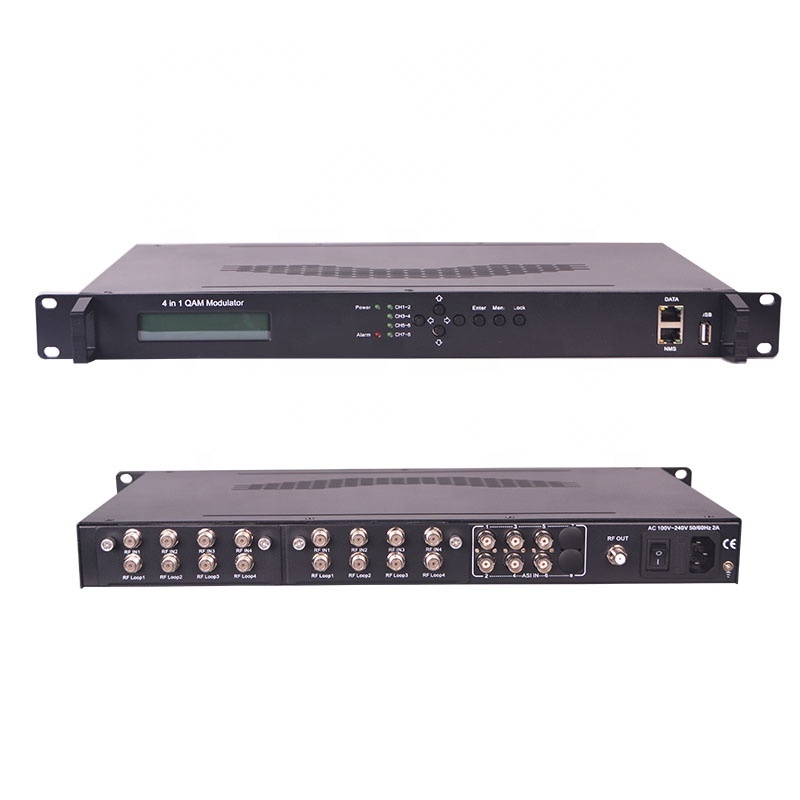

SFT3343D
is a high performance and cost-effective mux-scrambling QAM modulator designed by SOFTEL. It has multiple input ports optional. After multiplexing, scrambling and QAM modulating process, then it gives 4 RF output.
To meet customers’ various requirements, this device is also equipped with IP port to output 4 MPTS over UDP. Its
pluggable
structure design greatly facilitates the change of modules (demodulator) as needed.
The four CAMs/CIs (Optional) accompanied and BISS modules can descramble the programs input from 4 Tuner inputs. Its pluggable structure design greatly facilitates the change of modules (demodulator) as needed.
The four CAMs/CIs (Optional) accompanied and BISS modules can descramble the programs input from 4 Tuner inputs. Its pluggable structure design greatly facilitates the change of modules (demodulator) as needed.
SFT3343D is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.
Features
* Multiple Input ports optional:
8 DVB-C/T/T2/ISDBT/S/S2/S2X/ATSC FTA Tuner + 6 ASI input ports+256 IP input (Version 1)
4 DVB-C/S/S2/ATSC Tuner with CAM+6 ASI input ports (Version 2)
* Support 4 channels multiplexing+4channels scrambling+4 channels QAM modulating
* Fully support DVB-C (EN300 429) and ITU-T J.83A/B/C
* Fully support DVB general scrambling system description ETR289, simulcrypt standard ETSI 101 197 and ETSI 103 197
* Support accurate PCR adjusting
* Support PSI/SI editing and inserting
* Excellent RF output performance index, MER≥40db
* Support 4*MPTS output over UDP
* 4 CAM decrypt multiple programs from 4 Tuner input(Optional)
* Support BISS descrambling(only for Version 2)
* Support LCD display and keyboard
* Support Web management,Updates via web and USB
8 DVB-C/T/T2/ISDBT/S/S2/S2X/ATSC FTA Tuner + 6 ASI input ports+256 IP input (Version 1)
4 DVB-C/S/S2/ATSC Tuner with CAM+6 ASI input ports (Version 2)
* Support 4 channels multiplexing+4channels scrambling+4 channels QAM modulating
* Fully support DVB-C (EN300 429) and ITU-T J.83A/B/C
* Fully support DVB general scrambling system description ETR289, simulcrypt standard ETSI 101 197 and ETSI 103 197
* Support accurate PCR adjusting
* Support PSI/SI editing and inserting
* Excellent RF output performance index, MER≥40db
* Support 4*MPTS output over UDP
* 4 CAM decrypt multiple programs from 4 Tuner input(Optional)
* Support BISS descrambling(only for Version 2)
* Support LCD display and keyboard
* Support Web management,Updates via web and USB
Specification
|
Input
|
8 DVB-C/T/T2/ISDBT/S/S2/S2X/ATSC FTA Tuner + 6 ASI input+256 IP input ------Version 1
|
|
|
|
|
||||
|
|
4 DVB-C/S/S2/ATSC Tuner with CAM + 6 ASI -------Version 2
|
|
|
|
|
||||
|
Tuner Section
|
For Version 1：
Multi-mode tuners switchable (New Type) |
DVB-C
|
Input Frequency
|
60 ~890 MHz
|
|
||||
|
|
|
|
Standard
|
J.83A, J.83C
|
J.83B
|
||||
|
|
|
|
Constellation
|
16/32/64/128/256 QAM
|
64/256 QAM
|
||||
|
|
|
DVB-T/T2
|
Input Frequency
|
60 ~890 MHz
|
|
||||
|
|
|
|
Bandwidth
|
5/6/7/8 M
|
|
||||
|
|
|
ISDB-T
|
Input Frequency
|
60 ~890 MHz
|
|
||||
|
|
For Version 1
(New Type) |
DVB-S
|
Input Frequency
|
950~2150MHz
|
|
||||
|
|
|
|
Symbol rate
|
0.5~45Msps
|
|
||||
|
|
|
|
Signal Strength
|
- 65- -25dBm
|
|
||||
|
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
||||
|
|
|
|
Constellation
|
QPSK
|
|
||||
|
|
|
|
Max input bitrate
|
≤120 Mbps
|
|
||||
|
|
|
DVB-S2X
|
Input Frequency
|
950~2150MHz
|
|
||||
|
|
|
|
Symbol rate
|
QPSK/8PSK /16APSK :0.5~45 Msps
32APSK: 0.5~40Msps; |
|
||||
|
|
|
|
FEC
|
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK:
3/4, 4/5, 5/6, 8/9, 9/10 |
|
||||
|
|
|
|
Constellation
|
QPSK, 8PSK, 16APSK, 32APSK
|
|
||||
|
|
|
|
Max input bitrate
|
≤120 Mbps
|
|
||||
|
|
|
DVB-S2X
|
Input Frequency
|
950~2150MHz
|
|
||||
|
|
|
|
Symbol rate
|
QPSK/8PSK /16APSK :0.5~45 Msps
8APSK: 0.5~40Msps 32APSK: 0.5~40Msps |
|
||||
|
|
|
|
FEC
|
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 |
|
||||
|
|
|
|
Constellation
|
QPSK, 8PSK, 8APSK, 16APSK, 32APSK
|
|
||||
|
|
|
|
Max input bitrate
|
≤120 Mbps
|
|
||||
|
|
For Version 2
|
DVB-C
|
Standard
|
J.83A(DVB-C), J.83B, J.83C
|
|
||||
|
|
|
|
Input Frequency
|
30~1000Mhz
|
|
||||
|
|
|
|
Constellation
|
16/32/64/128/256 QAM
|
|
||||
|
|
|
DVB-S
|
Input Frequency
|
950~2150MHz
|
|
||||
|
|
|
|
Symbol rate
|
2-45Msps
|
|
||||
|
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
||||
|
|
|
|
Signal Strength
|
-65~-25dBm
|
|
||||
|
|
|
|
Constellation
|
QPSK
|
|
||||
|
|
|
DVB-S2
|
Input Frequency
|
950~2150MHz
|
|
||||
|
|
|
|
Symbol rate
|
QPSK/8PSK 1~45 Msps
|
|
||||
|
|
|
|
FEC
|
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
|
|
||||
|
|
|
|
Constellation
|
QPSK, 8PSK
|
|
||||
|
|
|
ATSC
|
Input Frequency
|
54~858MHz
|
|
||||
|
|
|
|
Bandwidth
|
6M
|
|
||||
|
|
|
|
Constellation
|
8VSB
|
|
||||
|
Multiplexing
|
Maximum PID Remapping
|
128per input channel
|
|
|
|
||||
|
|
Function
|
PID remapping (automatically or manually)
|
|
|
|
||||
|
|
|
Accurate PCR adjusting
|
|
|
|
||||
|
|
|
Generate PSI/SI table automatically
|
|
|
|
||||
|
Scrambling
|
Maximum simulcrypt CA
|
4
|
|
|
|
||||
|
|
Standard
|
ETSI 101 197, ETSI 103 197
|
|
|
|
||||
|
|
Connection
|
Local/remote connection
|
|
|
|
||||
|
Modulation
|
QAM Channel
|
4
|
|
|
|
||||
|
|
Standard
|
EN300 429/ITU-T J.83A/B/C
|
|
|
|
||||
|
|
MER
|
≥40db
|
|
|
|
||||
|
|
RF frequency
|
30~999MHz, 1KHz step
|
|
|
|
||||
|
|
RF output level
|
-10~0dbm,0.1db step ------Version 1
-20~0dbm,0.1db step ------Version 2 |
|
|
|
||||
|
|
Symbol Rate
|
5.0Msps~9.0Msps, 1ksps stepping
|
|
|
|
||||
|
|
|
J.83A
|
J.83B
|
J.83C
|
|
||||
|
|
Constellation
|
16/32/64/128/256QAM
|
64/256 QAM
|
64/256 QAM
|
|
||||
|
|
Bandwidth
|
8M
|
6M
|
6M
|
|
||||
|
System
|
Local interface
|
LCD + control buttons
|
|
|
|
||||
|
|
Remote management
|
Web NMS
|
|
|
|
||||
|
|
Stream Out
|
4*MPTS over UDP out (RJ45, 1000M, Unicast/Multicast)
|
|
|
|
||||
|
|
Language
|
English and Chinese
|
|
|
|
||||
|
|
Software Upgrading
|
Web and USB
|
|
|
|
||||
|
General
|
Dimension
(W*D*H) |
482mm×300mm×44.5mm
|
|
|
|
||||
|
|
Power
|
AC 100V±1050/60Hz;
AC 220V±10%, 50/60HZ |
|
|
|
||||
