Quick Details
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
YD22-10E/S
-
Material:
-
Stainless Steel
-
Mounting Hole:
-
22mm
-
Operation type:
-
Momentary Tactile Switch
-
Terminal type:
-
4 Wiring
-
Head shape:
-
Flat Round
-
Function:
-
Electronic Control System
-
Keyword:
-
Tact Switch Touch Switch Tactile Switch
-
Application:
-
General-Purpose
-
Operating temperature:
-
-40C ~ +70C
-
Certification:
-
ROHS CE
Quick Details
-
Protection Level:
-
IP68, IP68
-
Max. Current:
-
2A
-
Max. Voltage:
-
24V DC
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
YD22-10E/S
-
Material:
-
Stainless Steel
-
Mounting Hole:
-
22mm
-
Operation type:
-
Momentary Tactile Switch
-
Terminal type:
-
4 Wiring
-
Head shape:
-
Flat Round
-
Function:
-
Electronic Control System
-
Keyword:
-
Tact Switch Touch Switch Tactile Switch
-
Application:
-
General-Purpose
-
Operating temperature:
-
-40C ~ +70C
-
Certification:
-
ROHS CE

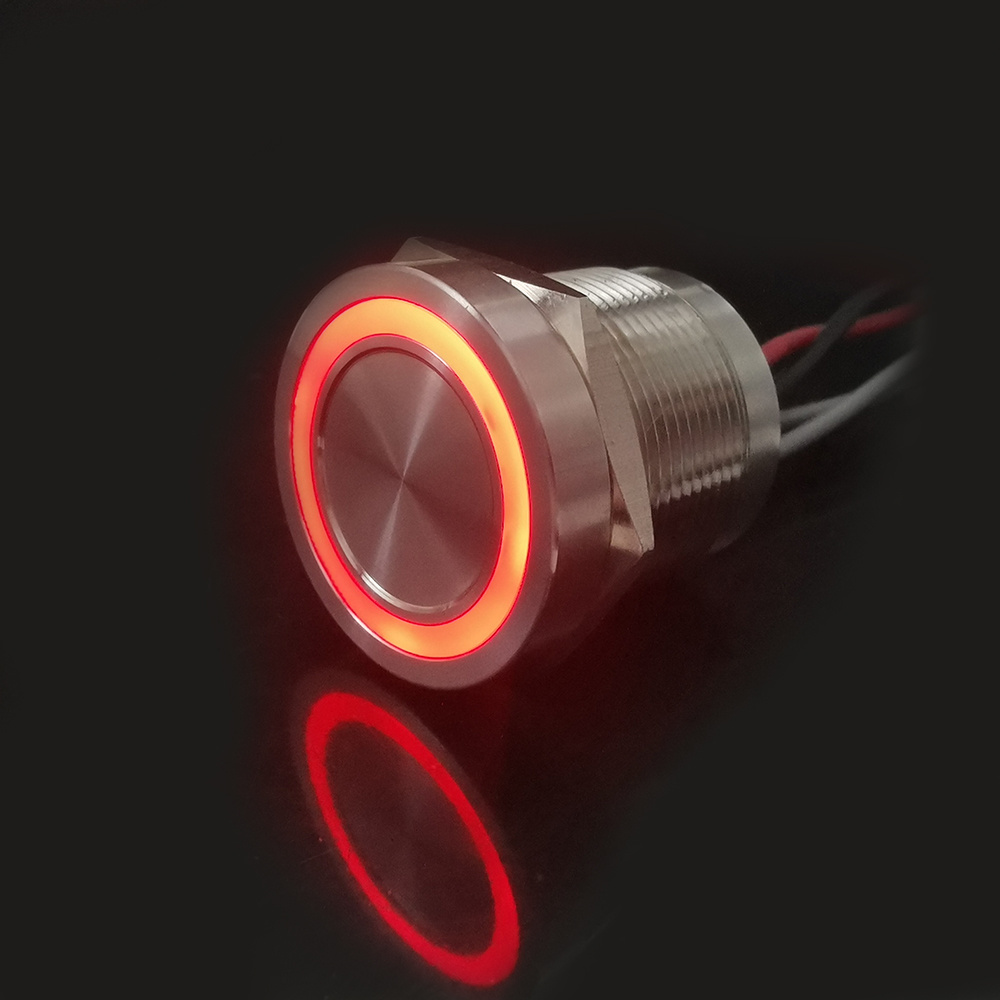

19mm 22mm sealed 12v 24v piezoelectric waterproof push button switch led light touch capacitive switch
Quick Description
22mm illuninated Piezo switch
Mounting Size : 22 mm;
Switch Rating : 2A , 24VDC
IP Class : IP68
Function :
When you push it, it has short pulse contact about 50mS and will off soon no matter how long you push it!
Material ：Stainess steel
Operating Type : Momentary
|
PRODUCT FEATURES
|
|
|
|
Install Diameter
|
22 mm
|
|
|
Operation Type
|
Momentary
|
|
|
Head Shape
|
Flat Round Head
|
|
|
Terminal Type
|
4 wires of 0.22 square,30mm ( Wire length can be customized.)
|
|
|
Panel Thickness
|
1-8mm
|
|
|
Pulse Time
|
Less than or equal to 50ms
|
|
|
PRODUCT MATERIALS
|
|
|
|
Body Material
|
Stainess steel
|
|
|
Button Material
|
Stainess steel
|
|
|
LED PARAMETERS
|
|
|
|
|
||||
|
Led Type
|
Ring Symbol
|
|
|
|
||||
|
Led Voltage
|
3v-24v
|
|
|
|
||||
|
Led life
|
More Than 40,000 hours
|
|
|
|
||||
|
Led color
|
Red Green Blue Yellow White
|
|
|
|
||||
|
ELECTRICAL SPECIFICATIONS
|
|
|
|
2Max Switch Rating
|
2A / 24V DC
|
|
|
Contact Resistance
|
≤ 50mΩ
|
|
|
Insulation Resistance
|
≥ 10000mΩ
|
|
|
Dielectric Strength
|
2000VAC
|
|
|
Operating Life
|
More than 200000 cycles
|
|
|
ENVIRONMENTAL SPECIFICATIONS
|
|
|
|
IP Degree
|
IP68 IEC529
|
|
|
Operation Temperature
|
-40℃～+70℃
|
|
|
Operating Pressure
|
About 3-5N
|
|
|
Operation Humidity
|
10%-90%
|
|
Why Choose Us
Waterproof ,D
ustproof ,V
andal Resistant
It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
Mechanical Life more than 100,0000 times,with long service life.
All our products have passed the CE, CCC, ROHS etc. certifications
Exquisite Workmanship
Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.The push
buttons use 95% silver contacts,with good contactperformance.
High Quality Shell Material
High quality metal shell, durable and strong corrosion resistance,
not easy to fade, excellent performance, IP67 protection level
are great for all kinds of first level equipments.
Easy To Install
Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use
ILLUMINATED
High bright solid color LED light, beautiful not dazzling. Built-in buck resistor. Customized LED light sign. 7 colors optional,
can be customized Bi-colors, Tri-colors.
can be customized Bi-colors, Tri-colors.
