Quick Details
-
Brand Name:
-
KDZD
-
Model Number:
-
KD2670J
-
Output voltage:
-
AC: 0-5/10KV DC: -5/10KV
-
Leakage current range:
-
AC: 0-2/20/100mA DC: 0-2/20mA
-
Output power:
-
1500VA
-
Output waveform:
-
50Hz/60Hz sine waveform using power supply
-
Voltage display accuracy:
-
± 5%
-
Current display accuracy:
-
± 5%
-
Timing range (display meter):
-
1-99 seconds ± 1%
-
Power supply:
-
AC 220V ± 10% 50Hz/60Hz
-
Power consumption:
-
≤ 30W (static power consumption
-
Weight:
-
25kg
Quick Details
-
Warranty:
-
1 YEAR
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
KDZD
-
Model Number:
-
KD2670J
-
Output voltage:
-
AC: 0-5/10KV DC: -5/10KV
-
Leakage current range:
-
AC: 0-2/20/100mA DC: 0-2/20mA
-
Output power:
-
1500VA
-
Output waveform:
-
50Hz/60Hz sine waveform using power supply
-
Voltage display accuracy:
-
± 5%
-
Current display accuracy:
-
± 5%
-
Timing range (display meter):
-
1-99 seconds ± 1%
-
Power supply:
-
AC 220V ± 10% 50Hz/60Hz
-
Power consumption:
-
≤ 30W (static power consumption
-
Weight:
-
25kg
Product Description
|
Output voltage (digital display meter KV) AC
|
0 ～ 5/10KV DC
|
|
Leakage current range (digital display meter mA) AC
|
0 ～ 2/20/100mA DC
|
|
Output power
|
1500VA
|
|
Output waveform
|
50Hz/60HZ sine waveform using power supply
|
|
Voltage display accuracy
|
± 5%
|
|
Current display accuracy
|
± 5%
|
|
Timing range (digital display meter)
|
1 ～ 99 seconds ± 1%
|
|
Power supply
|
AC 220V ± 10% 50Hz/60HZ
|
|
Power consumption
|
≤ 30W (static power consumption)
|
Product Parameters

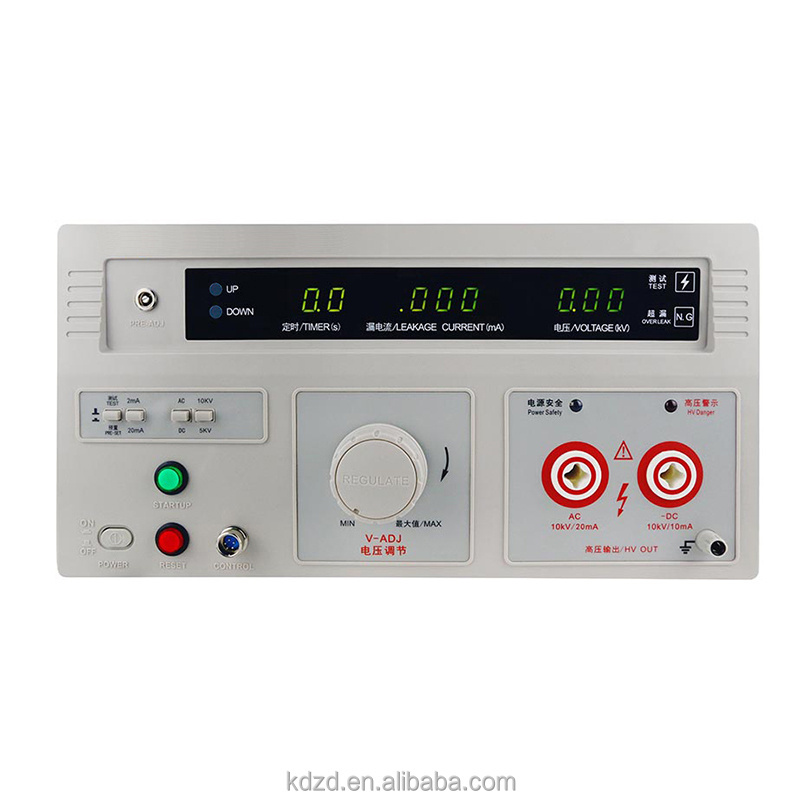

KD2670J voltage breakdown tester can be called electrical insulation strength tester, dielectric strength tester, etc. according to its functions.
It is widely used for the breakdown voltage and withstand voltage test of electrical equipment, bakelite appliances, transformers, power lines, electricity meters, motors, power plug sockets, cables, etc., as well as the breakdown voltage test of various insulating materials. With the establishment of national safety standards, the voltage breakdown tester has become an indispensable voltage breakdown tester for various wireless power plants, electronic products and other manufacturers.
KD2670J voltage breakdown tester meets the requirements of GB/T 1408.1-2006 standard (made of brass). Optional: two sheet electrodes ￠ 25mm, one sheet electrode ￠ 75mm; Two enamelled wire electrodes; Two electrodes for tubes. Due to the variety of samples of experimental solid insulating materials such as wire casing, resin and glue, impregnated fiber products, mica and its products, plastics, film composite products, ceramics, glass and other media, the standard configuration of the breakdown voltage electrode is a set of cylindrical electrodes with a diameter of 25 mm, and a set of spherical and cylindrical composite electrodes. Other sample electrodes are optional, please contact us before ordering.
Performance Characteristics
AC/DC 10KV universal withstand voltage tester
The output voltage is regulated by the voltage regulator, featuring high reliability and durability
High brightness LED digital tube is used to display the test time, voltage, current, and breakdown current and voltage in real time
The alarm current value can be preset continuously and arbitrarily
The test time is displayed by three digit nixie tube
The optional signal input and output interfaces required by PLC can easily form a comprehensive test system with PLC
Application Area
Components: diodes, triodes, high-voltage silicon stacks, various electronic transformers, connectors, high-voltage electrical appliances
Household appliances: TV, refrigerator, air conditioner, washing machine, dehumidifier, electric blanket, charger, etc
Insulation materials: heat shrinkable bushing, capacitor film, high-voltage bushing, insulating paper, insulating shoes, insulating rubber gloves, PCB circuit board, etc
Instruments: oscilloscope, signal generator, DC power supply, switching power supply and other complete machines
Lighting appliances: ballasts, road lamps, stage lamps, portable lamps and other lamps
Electric heating appliances: electric drill, pistol drill, gas cutting machine, grinder, grinder, electric welding machine, etc
Wires and cables: high-voltage lines, cables, silicone rubber cables, etc
