Quick Details
-
Dimensions(L*W*H):
-
L680 x W460 x H1310 mm
-
Weight:
-
68 KG
-
Description of product:
-
4 color pad printing machine
-
Plate size:
-
100x250mm
-
Front back working stroke:
-
150mm
-
Drive:
-
pneumatic
-
Key words:
-
Tampografia pad printer
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
After sales Service Provided:
-
Online support
-
Certification:
-
CE Certification
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ENGY
-
Voltage:
-
220V/110V
-
Dimensions(L*W*H):
-
L680 x W460 x H1310 mm
-
Weight:
-
68 KG
-
Description of product:
-
4 color pad printing machine
-
Plate size:
-
100x250mm
-
Front back working stroke:
-
150mm
-
Drive:
-
pneumatic
-
Key words:
-
Tampografia pad printer
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
After sales Service Provided:
-
Online support
-
Certification:
-
CE Certification

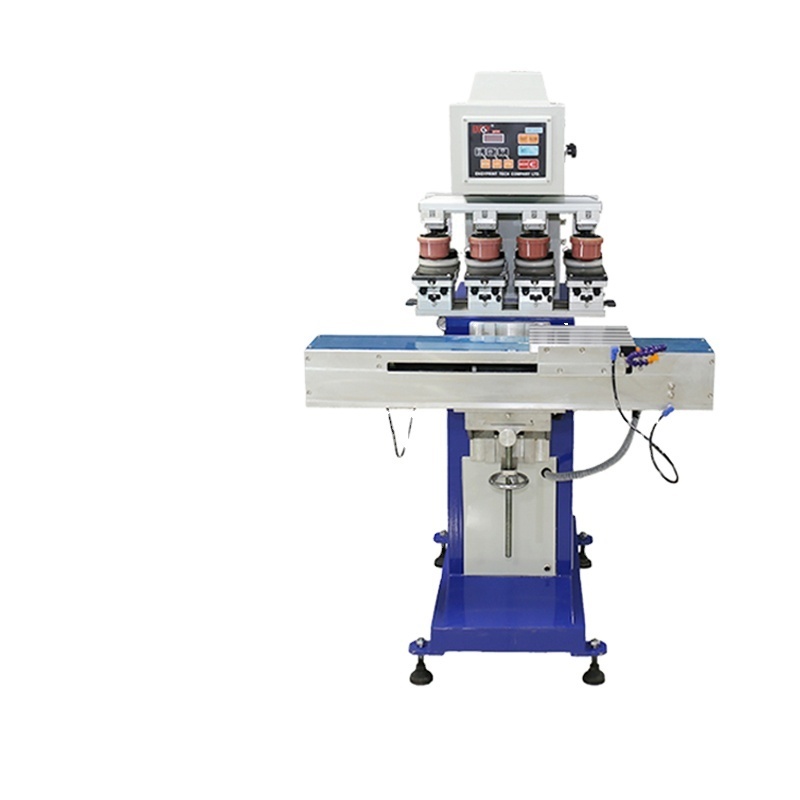

Tampografia pad printer tampo pad printer 4 colour pad printing machine for shoes
|
Standard Features:
Sealed cup is more environmental protection and ink saving.
Convenient ink cup installation,cleaning,and ink loading 1 color ink cup pad printing machine.
Foot pedal operation allows the hands to place objects on the work table at the same time thus speeding up production and simplifying the work process.
|
|
Specifications:
| Model No | EN-Y125/1 | EN-Y150/1J | EN-Y160/4S | EN-Y200/4A | EN-Y250/2S |
| Print color | Single color | Single color | Four colors | Four colors | Two colors |
| Type | Open well | Big open well | Well with shuttle | Well with conveyor | Well with shuttle |
| Plate size | 100x100mm | 150x150mm | 100x150mm | 100x200mm | 100x200mm |
| Max. Print size | 80x80mm | 120x120mm | 80x120mm | 80x160mm | 80x160mm |
| Printing capacity | 2600pcs/hr | 1800pcs/hr | 800pcs/hr | 1300pcs/hr | 900pcs/hr |
| Machine weight | 68KG | 85KG | 138KG | 210KG | 200KG |
| Main voltage | 110V/220V 60/50Hz 40W | ||||
| Machine size(mm) | 680x460x1310 | 780x500x1350 | 950x980x1430 | 1000x1050x1450 | 1100x700x1500 |
| Model No | EN-C125/1 | EN-C125/2S | EN-C160/4S | EN-C200/4A | EN-C200/6A |
| Print color | Single color | Two color | Four colors | Four colors | Six colors |
| Type | Ink cup | cup with shuttle | cup with shuttle | cup with conveyor | cup with conveyor |
| Plate size | 100x200mm | 100x200mm | 100x250mm | 100x300mm | 100x300mm |
| Max. Print size | Dia. 90mm, Dia. 100mm, Dia. 120mm, Dia. 140mm | ||||
| Printing capacity | 2500pcs/hr | 1600pcs/hr | 800pcs/hr | 1300pcs/hr | 1200pcs/hr |
| Machine weight | 70KG | 80KG | 140KG | 220KG | 240KG |
| Main voltage | 110V/220V 60/50Hz 40W | ||||
| Machine size(mm) | 680x460x1310 | 680x460x1310 | 950x980x1430 | 1000x1050x1450 | 1000x1050x1450 |
Detail Pictures:
Application:
Pad printer is widely applied in many industries including toys, plastic, electronic, glass, metal, electrical appliances, ceramics, die-casting products, optical, sporting goods, stationery, etc.
For example, rulers, pens, golf balls, ping-pong, eyes of doll, cap of bottle, watches, cameras, ceramic, pharmaceutical and medical equipment, rackets, tapes, electronic components, IC, CPU, DRAM, keyboard, mouse, cell phone shell, decorative signs, etc.
