Quick Details
-
Applicable Models:
-
Universal Model
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
autel
-
Model Number:
-
ps100
-
Warranty:
-
12 Months
-
Certification:
-
CE FCC ROHS
-
Product Name:
-
Autel PowerScan PS100
-
Accessories:
-
Carrying Case, Clamps, Probes, User Guide
-
Display:
-
TFT color display (160 x 128 dpi)
-
Sub-type:
-
Electrical System Diagnostics Tool
-
Feature:
-
Analog Display, Continuity Testing,tester automotive
-
Features1:
-
Digital Display, Relay Component Testing, Voltmeter
-
Model Name:
-
PS100
Quick Details
-
Car Fitment:
-
Mercedes Benz
-
Voltage:
-
12V &24V
-
Power:
-
24W
-
Applicable Models:
-
Universal Model
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
autel
-
Model Number:
-
ps100
-
Warranty:
-
12 Months
-
Certification:
-
CE FCC ROHS
-
Product Name:
-
Autel PowerScan PS100
-
Accessories:
-
Carrying Case, Clamps, Probes, User Guide
-
Display:
-
TFT color display (160 x 128 dpi)
-
Sub-type:
-
Electrical System Diagnostics Tool
-
Feature:
-
Analog Display, Continuity Testing,tester automotive
-
Features1:
-
Digital Display, Relay Component Testing, Voltmeter
-
Model Name:
-
PS100
Products Description

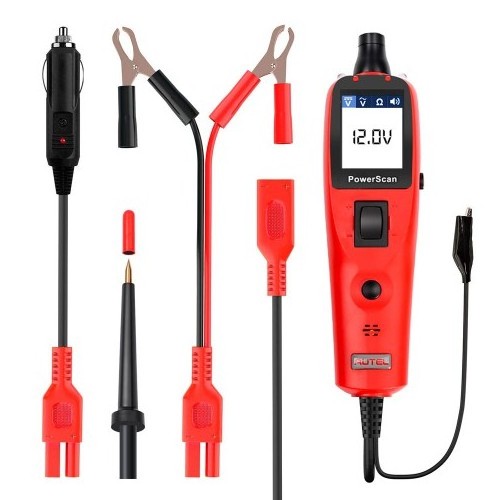

Autel PowerScan PS100
Electrical System Diagnostics
Autel PowerScan PS100 Generation Description: Autel PowerScan PS100 is the best electrical tester for reducing diagnostic time in all 6- to 30-volt vehicle electrical systems. After a simple hook-up of the tool to the vehicle's battery, you can:
Autel PowerScan PS100 Generation Description: Autel PowerScan PS100 is the best electrical tester for reducing diagnostic time in all 6- to 30-volt vehicle electrical systems. After a simple hook-up of the tool to the vehicle's battery, you can:
1.Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another.
2.Test for continuity with its built-in auxiliary ground lead.
3.By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
4.Test for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected; its internal circuit breaker will trip if it becomes overloaded.
5.Follow and locate short circuits without wasting fuses. The tool's long cable allows
you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.
you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.
Autel PowerScan PS100 Specifications:
Display: TFT color display (160 x 128 dpi) Operating Temperature: 0 to 60°C (32 to 140°F) External Power: 12.0 or 24.0 V power
provided via vehicle battery Length/Width/Height: 126mm(4.96'')/46.5mm(1.83'')/35mm(1.38'') NW: 0.105kg (0.23lb),GW: 0.726
kg(1.6lb)
Display: TFT color display (160 x 128 dpi) Operating Temperature: 0 to 60°C (32 to 140°F) External Power: 12.0 or 24.0 V power
provided via vehicle battery Length/Width/Height: 126mm(4.96'')/46.5mm(1.83'')/35mm(1.38'') NW: 0.105kg (0.23lb),GW: 0.726
kg(1.6lb)
Autel PowerScan PS100
Work Mode:
There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through
each one.
DC Voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution
of 0.1 volt.
There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through
each one.
DC Voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution
of 0.1 volt.
AC Voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min.
voltage, frequency and duty cycle.
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min.
voltage, frequency and duty cycle.
Resistance
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and
auxiliary ground lead.
Tone On/Off
While the tool in this mode, just do a quick press of the mode button to toggle the tone on or off. While quickly pressing (a
quick press and release) the mode button, if a short high beep is heard, this means the audio tone is turned on. If a short low
beep is heard, the audio tone is turned off.
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and
auxiliary ground lead.
Tone On/Off
While the tool in this mode, just do a quick press of the mode button to toggle the tone on or off. While quickly pressing (a
quick press and release) the mode button, if a short high beep is heard, this means the audio tone is turned on. If a short low
beep is heard, the audio tone is turned off.
This function is invaluable when working in bright areas where LED illumination alone is not sufficient. The audio feature may be
disengaged when desired, such as for applications where the tool will be connected to circuits for long periods of time and the
audio could become annoying.
disengaged when desired, such as for applications where the tool will be connected to circuits for long periods of time and the
audio could become annoying.
Specifications
|
Product Name
|
Autel PowerScan PS100
|
|
|
|
|||
|
Accessories
|
Carrying Case, Clamps, Probes, User Guide
|
|
|
|
|||
|
Operating Temperature
|
0 to 60C (32 to 140F)
|
|
|
|
|||
|
Sub-type
|
Electrical System Diagnostics Tool
|
|
|
|
|||
|
Features
|
Digital Display, Relay Component Testing, Voltmeter
|
|
|
|
|||
|
Features 2
|
Analog Display, Continuity Testing,tester automotive
|
|
|
|
|||
|
Power
|
12.0 or 24.0 V power provided via vehicle battery
|
|
|
|
|||
|
Material Type
|
plastic
|
|
|
|
|||
Certifications
