Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
JCZ EZCAD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Maven Laser
-
Weight (KG):
-
84 KG
-
Core Components:
-
Laser Source
-
Product name:
-

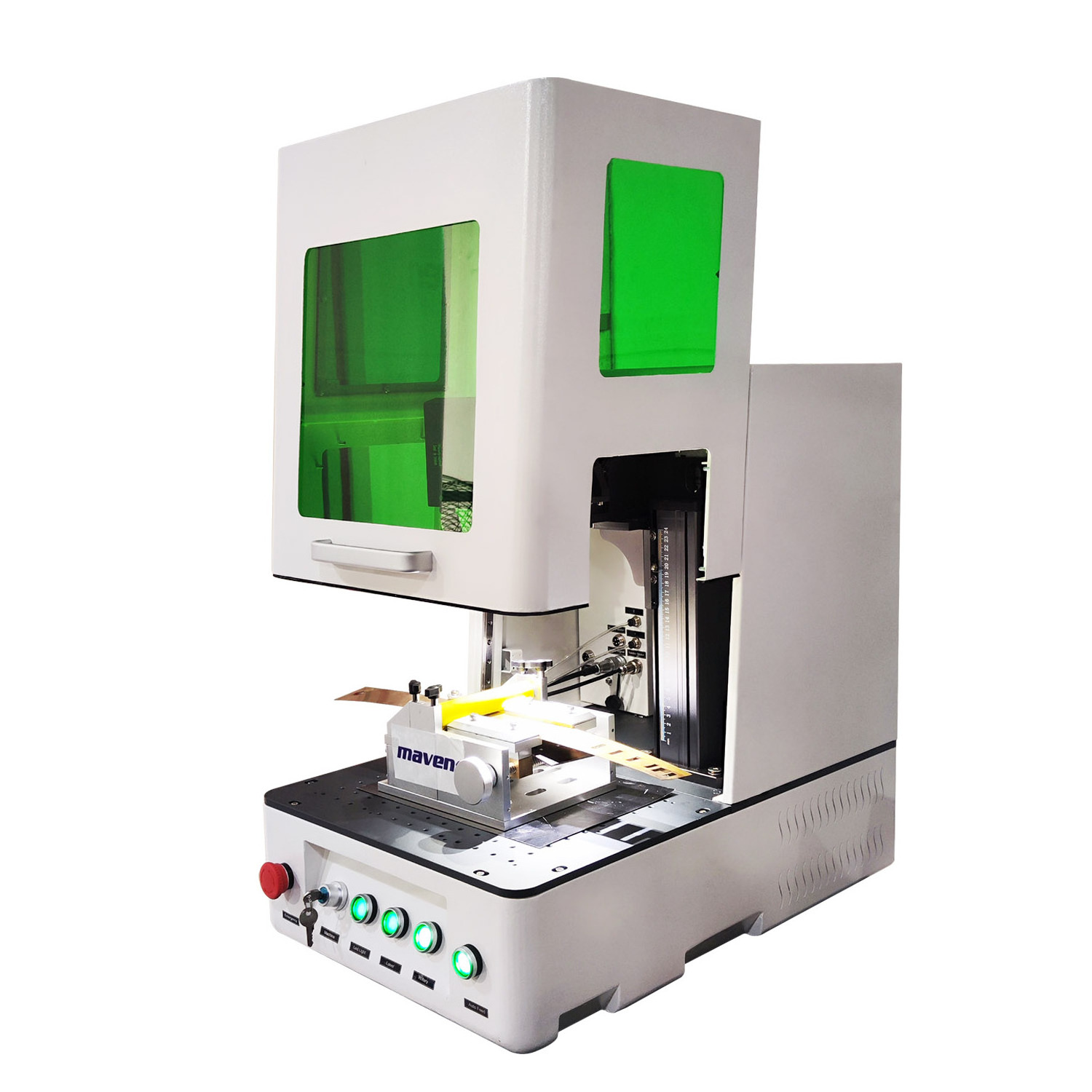

Fiber Laser Marking Machine Desktop
-
Applicable Material:
-
Metal Materials
-
Laser source:
-
IPG Raycus MAX JPT
-
Laser power:
-
50W 60W 80W 100W
-
Cooling system:
-
Air Cooling
-
After-sales Service Provided:
-
Online Support
-
Working area:
-
175*175 mm
-
Software:
-
EZCAD Software
-
Dimension(L*W*H):
-
710*420*810 mm
Quick Details
-
Working Accuracy:
-
0.01 mm-2 mm
-
Graphic Format Supported:
-
PLT, DXF, Dst, Dwg
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
JCZ EZCAD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Maven Laser
-
Weight (KG):
-
84 KG
-
Core Components:
-
Laser Source
-
Product name:
-
Fiber Laser Marking Machine Desktop
-
Applicable Material:
-
Metal Materials
-
Laser source:
-
IPG Raycus MAX JPT
-
Laser power:
-
50W 60W 80W 100W
-
Cooling system:
-
Air Cooling
-
After-sales Service Provided:
-
Online Support
-
Working area:
-
175*175 mm
-
Software:
-
EZCAD Software
-
Dimension(L*W*H):
-
710*420*810 mm
Product Details
Specification
|
Name
|
Function Description
|
|
Emergency Stop Switch
|
Emergency stop of machine operation
|
|
Electric Column Control Switch 1
|
The electric column moves in the upward direction
|
|
Electric Column Control Switch 2
|
The electric column moves in the downward direction
|
|
Laser Source Switch
|
Turn on/off Laser Source
|
|
LED Light Switch
|
Turn on/off LED light
|
|
Power Switch
|
Laser Marking Machine Power Switch
|
|
Name
|
Function Description
|
|
Foot Switch
|
Laser Shooting Physical Button
|
|
AC 220V
|
220V AC power input
|
|
USB
|
Connect to a computer for work
|
|
Smoke Extraction Hole
|
Installation and placement of smoker tube
|
|
Gas
|
Auto Feeder (Optional)
|
|
Power Supply
|
220V AC/ AC110V
|
Product Parameter
|
Name
|
Parameters
|
|
Laser Power
|
20W/30W/50W/60W/100W/120W
|
|
Laser Wavelength
|
1064 nm
|
|
Laser Source
|
Raycus Max IPG JPT
|
|
Optical Quality
|
M
2
≤1.2
|
|
Marking Field (MAX)
|
175 mm*175 mm
|
|
Minimum Line Width
|
0.03 mm
|
|
Minimum Character
|
0.2 mm
|
|
Marking Speed
|
0~7000 m/s
|
|
Cooling System
|
Air Cooling
|
|
Repeat Accuracy
|
0.01 mm
|
|
Input Power
|
AC 220V/110V 50Hz/60Hz
|
|
Power of Machine
|
≤1000W
|
|
Up/Down Control(2D)
|
Switch Button
|
|
Up/Down Control(2.5D/3D)
|
Auto Control by EZCAD3
|
|
Auto Feeder
|
Optional
|
|
Machine Size
|
710*420*820 mm
|
|
Life-Span of Fiber Laser Module
|
100,000 hours
|
|
Communication Interface
|
USB
|
|
Gross Weight
|
84 KG
|
Advantages
Fume Extractor
Fume extractor is a necessary part for enclosed fiber laser marking and engraving machine to suck smoke and small particles from your machine.
OD 7+ Class Laser Protective Window
OD 7+ Class laser protective window. Protect workers eyes against 1064nm wavelength fiber laser radiation.
Protecting effect is better than market OD5+ laser protective goggles.
High Quality Push Buttons
Excellent quality of push buttons with clear label.Can quickly master the MLA-M-003 laser marking machine button use function.
Automatic Clamp
Automatic clamp can be controlled by Ezcad software, it is good for thin metal sheet laser marking and cutting.Sheet hole left on laser protective window.
High Quality Galvo Scanner (2.5D)
The control card is in the vibrating lens, it can set the height of the vibrating lens directly in the system, can import stl files, marking 3D patterns, deep carving function.
LED Light helps to check Marking Effect
LED light helps workers to easily check marking effect when door is closed.
Led light can be adjust alone which are perfect whenever focus lighting.
High Quality Opex F-theta Lens (2D)
High quality F-theta lens makes laser less loss and more concentrated. That result in thiner laser spot higher power compared with normal brand F-theta lens
High Speed Scanner with dual Focus Finder (2D)
High quality scanner makes marking effect much better than normal low quality one, lower failure rate.laser marking engraving machine to find laser focus spot easily.
Using Guide
|
Package List
|
|
|
||
|
Name
|
Standard/Optional
|
Quantity
|
||
|
MLA-M-003 Machine (Laser Source is Optional)
|
Standard
|
1
|
||
|
Fixed Bar
|
Standard
|
2
|
||
|
LED Light
|
Standard
|
1
|
||
|
USB Line
|
Standard
|
1
|
||
|
Foot Switch
|
Standard
|
1
|
||
|
Power Cable
|
Standard
|
1
|
||
|
USB Flash Drive
|
Standard
|
1
|
||
|
Rotary Device
|
Optional
|
/
|
||
|
Auto Feeder
|
Optional
|
/
|
||
|
Smoke Extractor
|
Optional
|
/
|
||
|
Manual Clamps
|
Optional
|
/
|
||
Sample & Applicaton
|
100W Copper Cutting Test
|
|
|
|
|
||||
|
Material
|
Thickness
|
Size
|
Shape
|
Time
|
||||
|
Copper
|
0.5 mm
|
10*10 mm
|
Square
|
10s
|
||||
|
Copper
|
0.6 mm
|
10*10 mm
|
Square
|
40s
|
||||
|
Copper
|
1.0 mm
|
10*10 mm
|
Square
|
90s
|
||||
|
Copper
|
1.5 mm
|
10*10 mm
|
Square
|
300s
|
||||
|
Copper
|
2.0 mm
|
10*10 mm
|
Square
|
600s
|
||||
