Quick Details
-
Keypad Button Material:
-
Polyester or Polycarbonate
-
Product name:
-
Tactile button membrane switch keypad with rubber keys and leds
-
Structure:
-
Metal domes
-
Back adhesive:
-
3M9471
-
Operating force:
-
90g
-
Color:
-
Pantone and RAL
-
QC:
-
100% function test
-
Printing:
-
Silk Screen Printing and Laser
-
Thickness:
-
3.9mm
-
Circuit:
-
PCB
-
Material:
-
Silicone+PCB+Connector+metal domes+LED+3M9471
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ETOUCH
-
Model Number:
-
ET-MK-037
-
Keypad Button Material:
-
Polyester or Polycarbonate
-
Product name:
-
Tactile button membrane switch keypad with rubber keys and leds
-
Structure:
-
Metal domes
-
Back adhesive:
-
3M9471
-
Operating force:
-
90g
-
Color:
-
Pantone and RAL
-
QC:
-
100% function test
-
Printing:
-
Silk Screen Printing and Laser
-
Thickness:
-
3.9mm
-
Circuit:
-
PCB
-
Material:
-
Silicone+PCB+Connector+metal domes+LED+3M9471

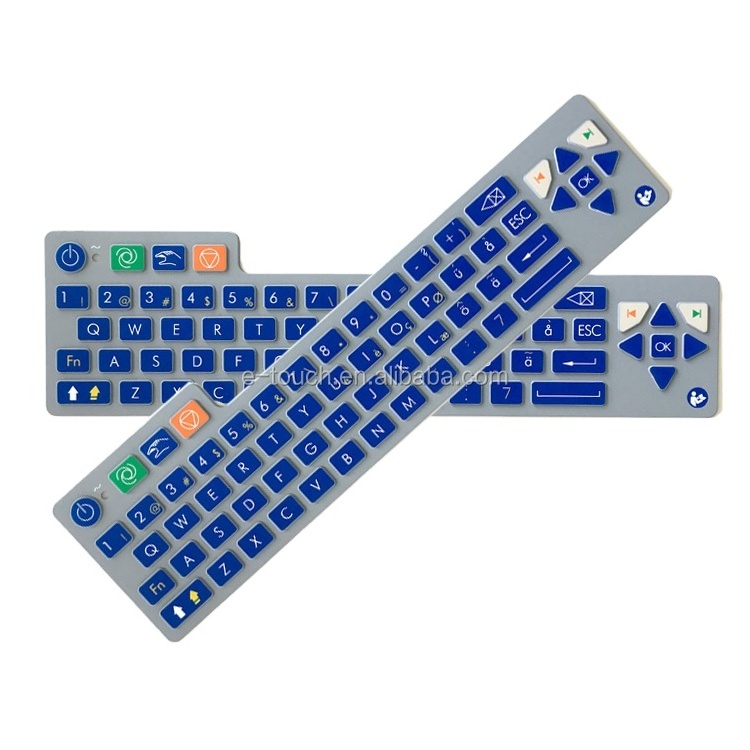

Tactile button membrane switch keypad with rubber keys and leds Front View
PCB+Connector+LED+Silicone Keyboard
Back Adhesive 3M9471
Tactile button membrane switch keypad with rubber keys and leds Back View
|
1.Electrical Properties
|
|
|
|
||
|
Electrical Level:
|
|
35V(DC), 100mA,1W
|
|
||
|
Contact Resistance:
|
|
10Ω~500 Ω
|
|
||
|
Insulation Resistance:
|
|
100MΩ/100V
|
|
||
|
Dielectrics Voltage-resistance:
|
|
250VRms（50~60Hz 1min）
|
|
||
|
Chattering Time:
|
|
≤ 5ms
|
|
||
|
Life Time:
|
|
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
|
|
||
|
Tail Folding:
|
|
R>1,180
|
|
||
|
|
|
|
|
||
|
2.Mechanical Properties
|
|
|
|
||
|
Operating Force:
|
|
Flat type 57~280g(2~10oz); Tactile type 150~400g(6~14oz)
|
|
||
|
Switch Stroke:
|
|
Planar type 0.1~0.5mm; Tactility type 0.6~1.5mm
|
|
||
|
|
|
|
|
||
|
3.Environmental and Storage Conditions
|
|
|
|
||
|
Operation Temperature:
|
|
-40°C ~ +80°C
|
|
||
|
Storage Temperature：
|
|
-40°C ~ +70°C
|
|
||
|
Humidity:
|
|
40°C, 90%~95%, 240 hours
|
|
||
We have the capacity to provide New custom 3M adhesive remote control membrane keypad, membrane switch panel with other special requirements, such as Shielding, Windows/Lens Coating, Embossed button, Embossed LEDs, UV glossy/matte/textured, EL,LED backlight,rubber keypad etc.
