- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YH
-
Model Number:
-
GBDE
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
3.2*1.2*1.7m
-
Weight:
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field installation, commissioning and training
-
Certification:
-
CE
Quick Details
-
Machine Type:
-
SEALING MACHINE
-
Bag Type:
-
Garment Bags
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YH
-
Model Number:
-
GBDE
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
3.2*1.2*1.7m
-
Weight:
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field installation, commissioning and training
-
Certification:
-
CE
Machine Introduction
Garment Bags Making Machine (By Rolling or not)
1. The whole machine adopts microcomupter control and step motor for material feeding .
2. Arbitrary fixed length accurate and stable step photo electric tracking .stopp automatically when the any mark is lost .
3. Automatic pressure synchronous punching and synchronous sealing .
4.automatic counting ,automatic alarming when reaching preset number .
5. Heat sealing decrative border ,automatic constant temperature ,firm and smooth sealing .
Main technical parameters
| Max.bag width(mm) | 800 |
| Max.bag length(mm) | 1500 |
| speed(pcs/min) | 5-80 |
| Film thickness(mm) | 0.01-0.1 |
| Photocell(pcs) | 1 |
| Main motor(kw) | 1.5kw |
| Feeding motor(w) | 300 |
| Rewinding motor(w) | 300 |
| Heating power(w) | 900X2 |
| Working power | 50HZ 220V+10%-15% |
| Outline dimension(mm) | 4000X1400X1700 |
| Weight(kg) | 900 |

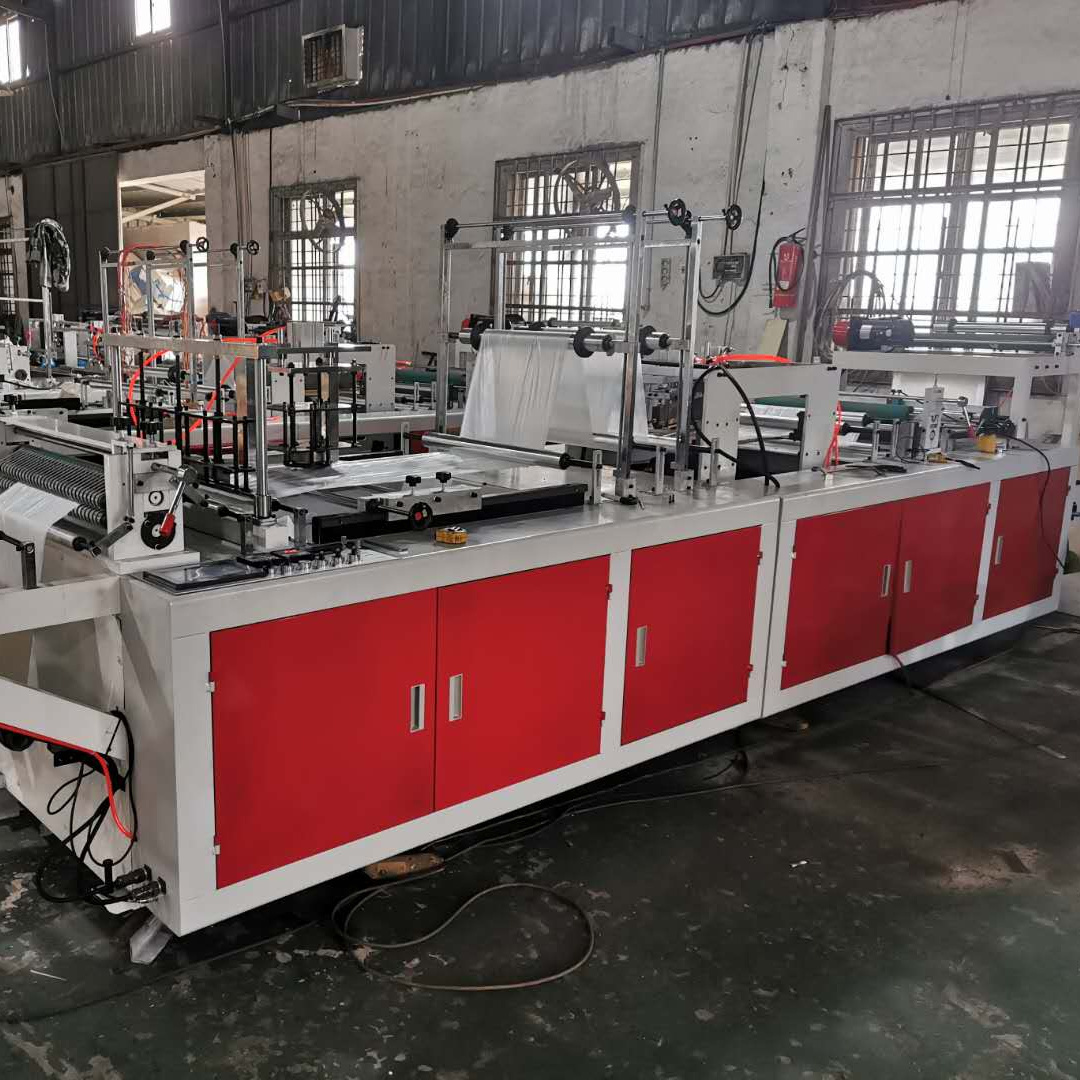

Machine Photos:
Our Service :
1. Purchase Service
We have a specialized and efficiency working team. If you are new on the Plastic Machinery area, Some samples of your products could be show to us will be appreciated ,we will give you specialized suggestion of whole work .
2. Shipping Service
We have a specialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T, L/C Items very well. All Exported documents could be made perfectly.
We cooperated with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.
3.Installation and Training Services
Installation Services are available with all machines. We will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to supply the round trip tickets ,food ,hotel and other cost.
Training on our factory also be welcome.
4.After Sales Service
Our machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken, Just a pictures or a videos.Then new free parts will reach within 3-7 Express working days .
If need know more about our machines/price/service:
Mobile/Whatsapp: +86-13396972488
Wechat: 65295224
