Quick Details
-
Warranty:
-
25 Years
-
Brand Name:
-
Flagsun
-
Model Number:
-
SS-S160WP
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
1585*540*3 mm
-
OEM Order:
-
Acceptable
-
Number of Cells:
-
52 (4 x 13)
-
Dimension:
-
1585*540*3 mm
-
Weight:
-
2.8kgs
-
Front:
-
PET
-
Frame:
-
N/A
-
Junction Box:
-
IP67 Rated
-
Maximum Series Fuse Rating:
-
20A
-
Maximum System Voltage:
-
1000V DC(IEC)/ 600V DC(UL)
-
Certificate:
-
CE/TUV/ISO
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-

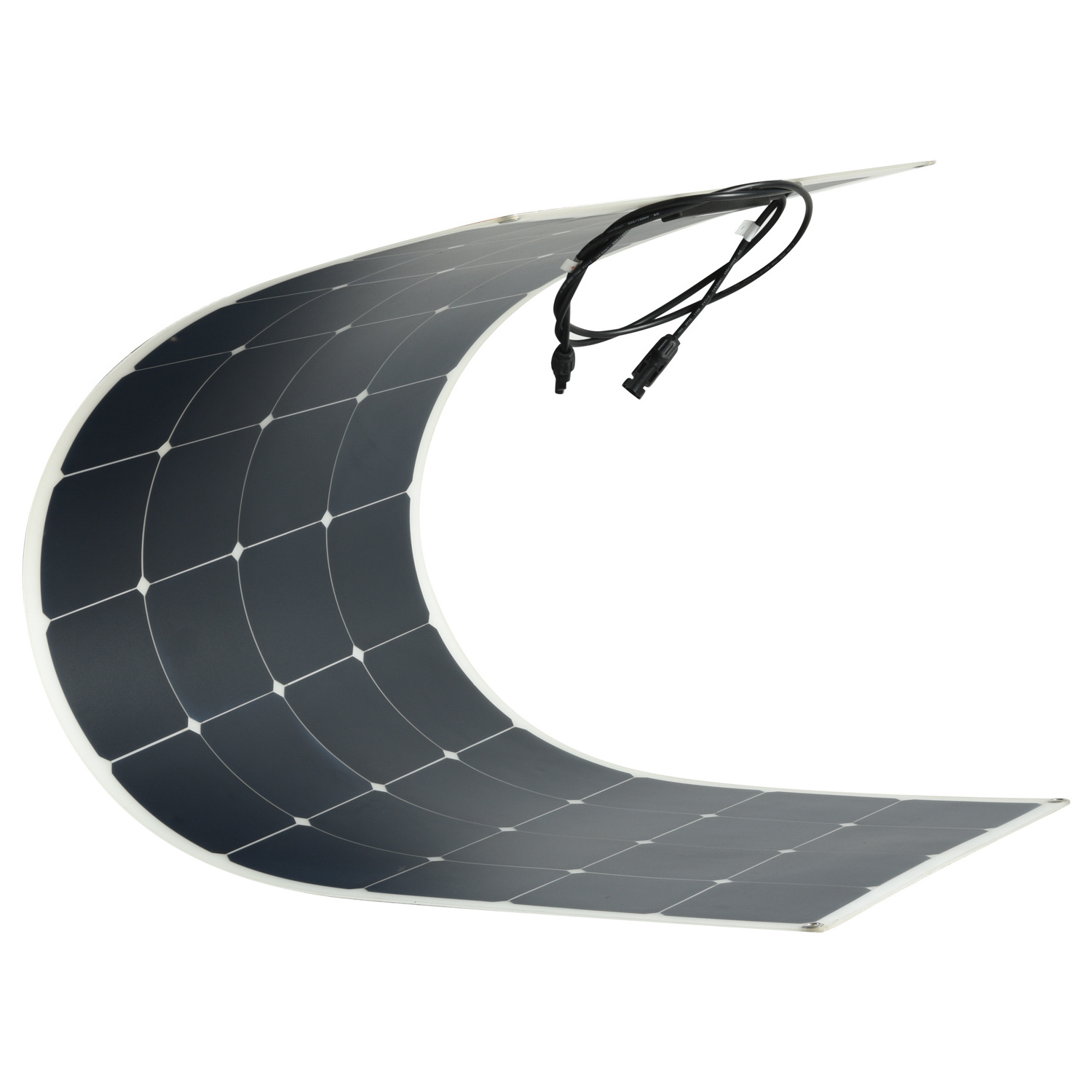

Type:
-
Flexible, Mono-crystalline
-
Panel Efficiency:
-
160 W
-
Warranty:
-
25 Years
-
Brand Name:
-
Flagsun
-
Model Number:
-
SS-S160WP
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
1585*540*3 mm
-
OEM Order:
-
Acceptable
-
Number of Cells:
-
52 (4 x 13)
-
Dimension:
-
1585*540*3 mm
-
Weight:
-
2.8kgs
-
Front:
-
PET
-
Frame:
-
N/A
-
Junction Box:
-
IP67 Rated
-
Maximum Series Fuse Rating:
-
20A
-
Maximum System Voltage:
-
1000V DC(IEC)/ 600V DC(UL)
-
Certificate:
-
CE/TUV/ISO
Product Description
|
Electrical Characteristics
|
|
|
|
Model
|
SS-S160WP
|
|
|
Maximum Power at STC (Pmax)
|
160 W
|
|
|
Optimum Operating Voltage (Vmp)
|
26.40 V
|
|
|
Optimum Operating Current (Imp)
|
5.68A
|
|
|
Open - Circuit Voltage (Voc)
|
31.20V
|
|
|
Short - Circuit Current (Isc)
|
6.28A
|
|
|
Cell Efficiency
|
22.0%
|
|
|
Power Tolerance
|
±5%
|
|
|
Operating Module Temperature
|
-20℃ to +65℃
|
|
|
Maximum System Voltage
|
1000V DC(IEC)/600V DC(UL)
|
|
|
Maximum Series Fuse Rating
|
20A
|
|
|
Mechanical Characteristics
|
|
|
|
Solar cell
|
Sunpower
|
|
|
No.of Cells
|
48 (4 x 12)
|
|
|
Dimensions
|
1585× 540× 3 mm
|
|
|
Weight
|
2.8kg
|
|
|
Front Glass
|
PET
|
|
|
Frame
|
N/A
|
|
|
Junction Box
|
IP67 rated
|
|
|
Output Cables
|
TUV(2Pfg1169:2007), UL 4703,UL 44
Optional
4.0 mm²,symmetical lengths(-)1000mm and (+)1000mm |
|
|
Connectors
|
SOLAR MC4
integrated twist locking connectors
|
|
|
Temperature Characteristics
|
|
|
|
Nominal Operating Cell Temperature (NOCT
|
25±2°℃
|
|
|
Temperature Coefficient of Pmax
|
-0.44 %/°℃
|
|
|
Temperature Coefficient of Voc
|
-0.33 %/℃
|
|
|
Temperature Coefficient of lsc
|
0.055 %/℃
|
|
|
Warranty
|
|
|
|
25-year limited power output warranty:
1 years/95%,3 years/90%,10 years/85%,20 years/80% Based on nominal power
1 years material and workmanship warranty
|
|
|
