- Product Details
- {{item.text}}
Quick Details
-
Mold Height(mm):
-
150 - 380 mm
-
Ejector Stroke(mm):
-
100 mm
-
Ejector Force(kN):
-
38 kN
-
Theoretical Shot Volume(cm³):
-
151 cm³
-
Injection Rate (g/s):
-
350 g/s
-
Injection Weight (g):
-
136 g
-
Screw Speed (rpm):
-
0 - 200 rpm
-
Screw diameter (mm):
-
36 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
360x360 mm
-
Weight (KG):
-
3000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
320 mm
-
Model Number:
-
MG98
-
Brand Name:
-
MOVG
-
Power (kW):
-
11 kW
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
360mm
-
Distance between Tie Bars(Height)(mm):
-
360mm
-
Plasticizing Capacity(g/s):
-
189
-
Mold Height(mm):
-
150 - 380 mm
-
Ejector Stroke(mm):
-
100 mm
-
Ejector Force(kN):
-
38 kN
-
Theoretical Shot Volume(cm³):
-
151 cm³
-
Injection Rate (g/s):
-
350 g/s
-
Injection Weight (g):
-
136 g
-
Screw Speed (rpm):
-
0 - 200 rpm
-
Screw diameter (mm):
-
36 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
360x360 mm
-
Weight (KG):
-
3000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
320 mm
-
Model Number:
-
MG98
-
Brand Name:
-
MOVG
-
Power (kW):
-
11 kW
Product Description
Specification
|
item
|
value
|
|
Plastic Processed
|
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, HDPE, MLLDPE, PA, Polystyrene, PE, LDPE, HDPE/PP, ABS/PP, PE/PP
|
|
Condition
|
New
|
|
Style
|
Horizontal
|
|
|
360mm
|
|
|
360mm
|
|
Plasticizing Capacity(g/s)
|
10.4
|
|
Mold Height(mm)
|
|
|
Ejector Number
|
1
|
|
Ejector Stroke(mm)
|
100mm
|
|
Ejector Force(kN)
|
38kN
|
|
Theoretical Shot Volume(cm³)
|
119cm³
|
|
Injection Rate (g/s)
|
350g/s
|
|
Machine Type
|
Hydraulic
|
|
Injection Weight (g)
|
107g
|
|
Screw Speed (rpm)
|
|
|
Screw diameter (mm)
|
32mm
|
|
Screw L/D Ratio
|
22.5
|
|
Distance between Tie Bars
|
360x360 mm
|
|
Weight (KG)
|
3000kg
|
|
Type
|

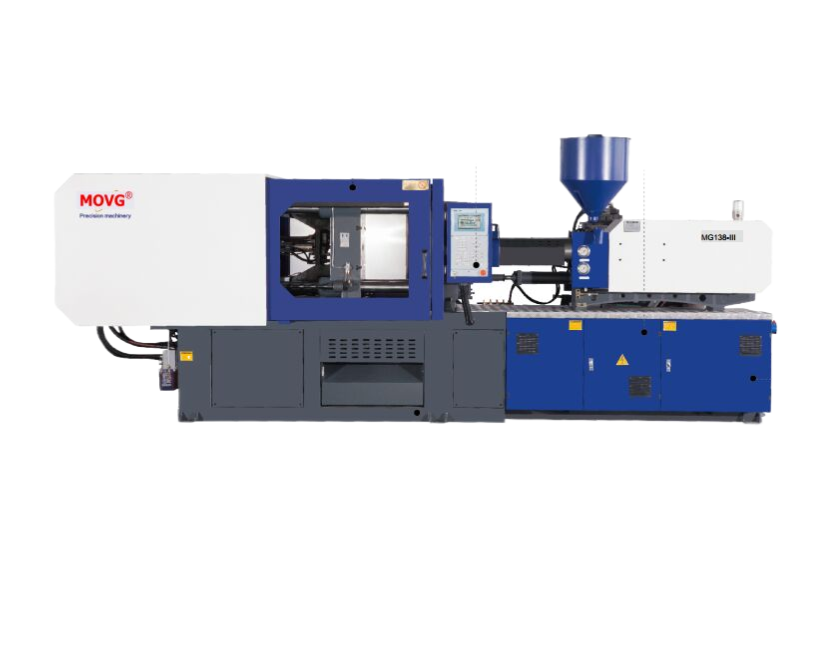

Injection molding machine
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Open Stroke(mm)
|
320mm
|
|
Model Number
|
MG98
|
|
Brand Name
|
MOVG
|
|
Power (kW)
|
11kW
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
High Productivity
|
|
Applicable Industries
|
Manufacturing Plant
|
|
Showroom Location
|
None
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Bearing, Motor, Pump, PLC, Pressure vessel, Engine, Screw
|
|
|
|
Product Description
Specification
In order to ensure that the product is not damaged during transportation, we will choose to use high-hardness cardboard boxes or wooden boxes to package the product according to the volume of the product, and adopt protective measures such as foam anti-collision and wooden frame fixing to ensure the safe and non-destructive delivery of the goods to the greatest extent
Q: Delivery time
A: Normally Machine Delivery from the factory in 0-60 weekdays after receiving the down payment.
Q: Are you trading company or manufacture?
A: We are factory
A: Normally Machine Delivery from the factory in 0-60 weekdays after receiving the down payment.
Q: Are you trading company or manufacture?
A: We are factory
Q:
What types of machines can factories manufacture
A:
High speed bottle embryo machine, high-speed lunch box machine, fruit basket machine, pipe joint machine, dual color machine
