Quick Details
-
Model Number:
-
TB370
-
Max. Current:
-
16A
-
Power Reserve:
-
150hours
-
Operating Voltage:
-
AC 110V-250V
-
Frequency:
-
50/60 Hz
-
Switch Capacity:
-
AC 250V 16A
-
Installation type:
-
DIN-rail
-
Time accuracy:
-
≤±2S/day (25℃)
-
Program:
-
Daily program
-
Set-up times:
-
96Times
-
Dimension:
-
92*52.5*71mm
-
Ambient Temperature:
-
-10℃~+50℃
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Elsine
-
Model Number:
-
TB370
-
Max. Current:
-
16A
-
Power Reserve:
-
150hours
-
Operating Voltage:
-
AC 110V-250V
-
Frequency:
-
50/60 Hz
-
Switch Capacity:
-
AC 250V 16A
-
Installation type:
-
DIN-rail
-
Time accuracy:
-
≤±2S/day (25℃)
-
Program:
-
Daily program
-
Set-up times:
-
96Times
-
Dimension:
-
92*52.5*71mm
-
Ambient Temperature:
-
-10℃~+50℃

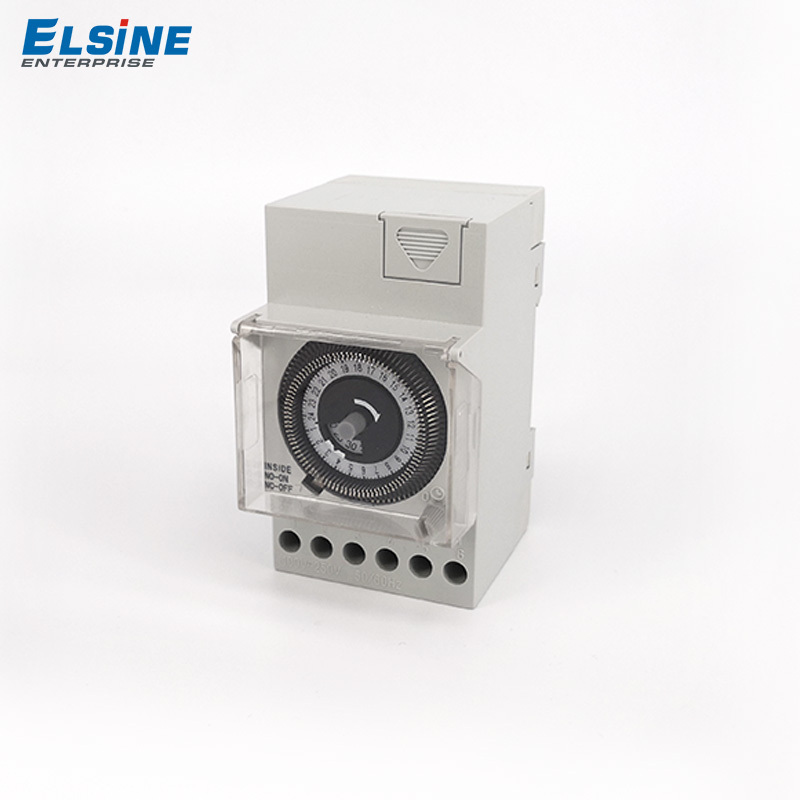

TB370 industrial time clock switch mechanical battery powered timer switch AC 250V 16A
It can setting 8 programs to control ON and OFF of electric appliance in 24 hours or setting 48 programs in one week. It can be programmed to avoid the peak of power, and it can distribute power in time limit to saving energy. This timer is a kind of module for DIN guide rail, it is easy to install in distribute box, and its so compact size with pretty form. Its time base component adopt synch pulse motor and it is strong anti-jamming with performance stabilization.
BASIC FEATURES
- 1 Channel
- With Power Reserve ( Rechargeable Battery )
- Clock Hands for Time Display
- Dally/Weekly Program
- Installation: DIN Rail / Plug
CAUTIONS
For the first time, please charge battery first till running (hear DI DA sound) it will take about 10 mins to 3hrs before use.
To set the correct time, turn the dial in the direction of the arrow (clockwise) and set the present time.
Please observe the rated voltage and voltage tolerance of the time switches for adequate use.
If the load capacity exceeds the rating, an electromagnetic switch is required.
Do not use the time switch where:
. the ambient temperature gose below -10℃ or above +50 ℃
. there is much dust.
. there is much moisture.
. outdoors or where it will be exposed to rain or water.
. there is much vibration.
TECHNICAL DATA
|
|
1 CIRCUIT |
1CIRCUIT |
|
Movement type |
Quartz |
Synchron. motor |
|
Back-up time |
150 hours |
|
|
Charge time |
72hours |
|
|
Rated voltage |
100-250V |
230V |
|
Frequency |
50/60Hz |
50Hz |
|
Power consumption |
230V~1W |
230V~1W |
|
Switching contact |
1 changeover |
1 changeover |
|
Contacts material |
Sliver/Cadmium |
Sliver/Cadmium |
|
Resistive load |
μ16A 250V |
μ16A 250V |
|
Inductive load |
μ2A 250V |
μ2A 250V |
|
Time precision |
<=0.5 sec/day at 25℃ |
Depending upon the current frequency |
|
Protection class |
II according to VDE 0633 |
|
|
Type of automatic operation |
1 B-S-T-U |
1B-R |
|
State of environment pollution |
Normal |
Normal |
|
Weight |
Approx.gr.200 |
Approx.gr.200 |
PRODUCT SIZE
WIRING CONNECTION
STAND WORKSHOP
Q 1. What's the payment term?
A. We accept T/T, L/C, Western Union, Cash
Q 2. What's the delivery time ?
A. Usually it would take about 25 days for production
Q 3. What is the standard of package?
A. Export standard package or special package according to customer requirement
Q 4. What kind of product quality your factory offer?
A. We offer most competitive prices with best quality, copper coil with silver contact.
Q 5. Do you accept OEM and ODM business?
A. We do,for OEM service please send us your authorization, also your quantity should large enough.
Q 6. Could you offer certificate of origin?
A. We can prepare relative documents to foreign affairs office or other office to apply the certificate.
Q7. What kind of certificate you have ?
A. Our company already achieve ISO, and for products, we have CE, SEMKO,CB, BSI, GS, TUV, VDE.
