Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
220v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Mars
-
Dimension(L*W*H):
-
2900x2200x2850mm
-
Weight:
-
5500 KG
-
Keywords:
-
Water Aqua Filling Machine
-
washing heads:
-
24
-
filling heads:
-
24
-
capping heads:
-
8
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
Indonesia
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
ISO CE
-
Material:
-
Stainless Steel 304/316
Quick Details
-
Machinery Capacity:
-
6000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Water
-
Filling Accuracy:
-
99%
-
Voltage:
-
220v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Mars
-
Dimension(L*W*H):
-
2900x2200x2850mm
-
Weight:
-
5500 KG
-
Keywords:
-
Water Aqua Filling Machine
-
washing heads:
-
24
-
filling heads:
-
24
-
capping heads:
-
8
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
Indonesia
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
ISO CE
-
Material:
-
Stainless Steel 304/316

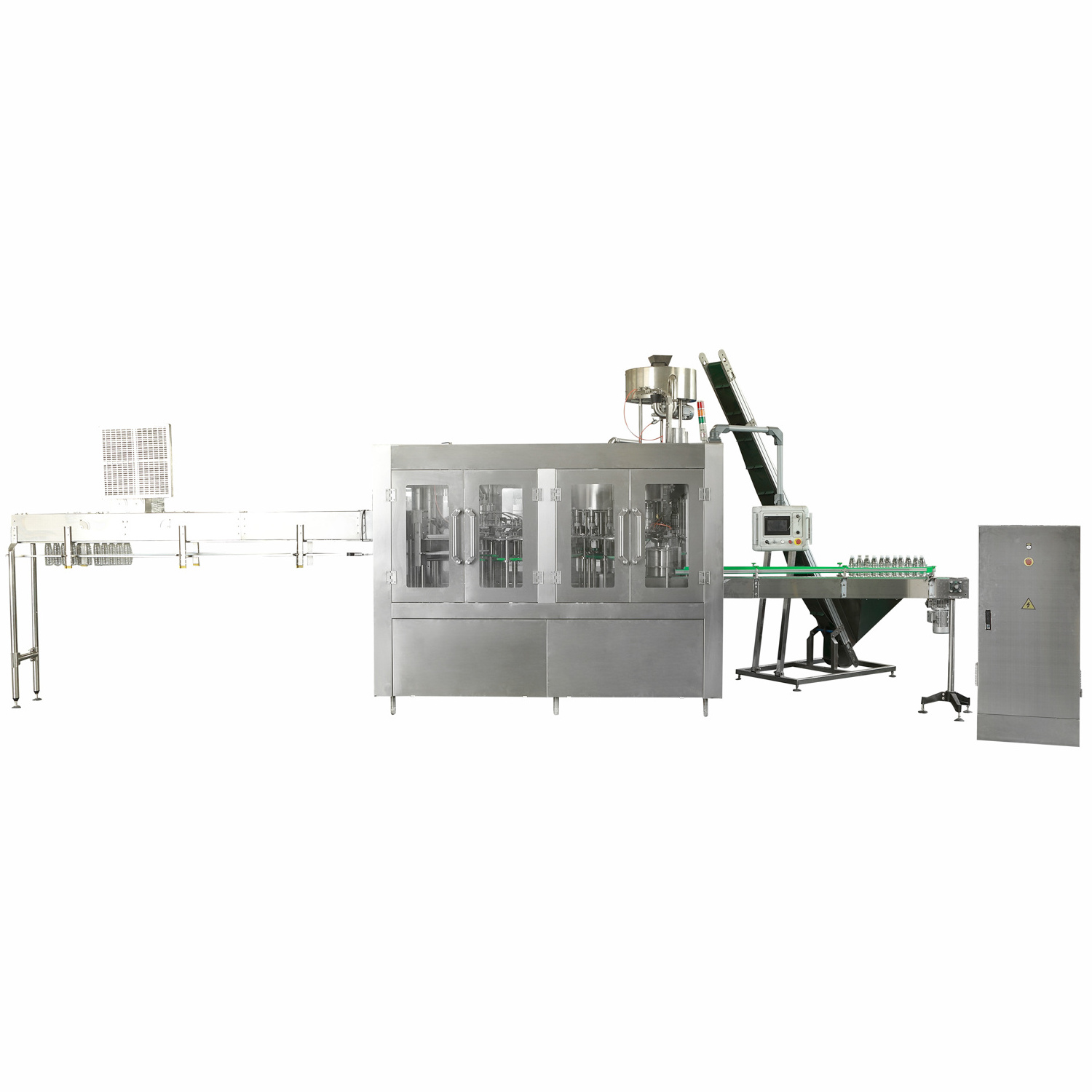

Small Bottle Jinrong Drinking Water Aqua Filling Machine Automatic Bottling Production Line
volume:200-2000ml
product capacity:3000-36000bph (500ml)
filling temperature:normal temperature
General Description for Water Aqua Filling Machine
This washing-filling-capping integrate machine, 3-in-1 monoblock is designed and produced by our company. It has stable performance, advanced technology, beautiful appearance, and full function.
The machine is mainly used for PET bottle water washing-filling-capping.
Technical Parameter for Water Aqua Filling Machine
|
Technical parameters |
CGF18-18-6 |
CGF24-24-8 |
CGF32-32-10 |
CGF40-40-12 |
CGF50-50-15 |
CGF60-60-15 |
CGF72-72-18 |
CGF80-80-20 |
|
Production capacity (500ml)(B/H) |
6000 |
10000 |
14000 |
18000 |
24000 |
30000 |
35000 |
40000 |
|
Bottle washing station |
2.5 |
5 |
6 |
8 |
11 |
15 |
20 |
20 |
|
Drying station |
3.5 |
6 |
10 |
12 |
14 |
25 |
27 |
32 |
|
PET bottle size (mm) |
D=60~97mm |
|||||||
|
H=150~320mm |
||||||||
|
Capping torque (N.m) |
0.6~2.8 |
0.6~2.8 |
0.6~2.8 |
0.6~2.8 |
0.6~2.8 |
0.6~2.8 |
0.6~2.8 |
0.6~2.8 |
|
Installed capacity (Kw) |
2.38 |
4.18 |
4.18 |
4.37 |
5.87 |
5.87 |
9.57 |
9.57 |
|
Compressed Air consumption (0.6Mpa)Nm3/min |
0.5 |
0.6 |
0.8 |
0.8 |
1 |
1.5 |
1.5 |
2 |
|
Washing bottles water consumption (0.2-0.25Mpa)m3/h |
1.5 |
1.5~2 |
1.5~2 |
1.5~2 |
2~2.5 |
2~2.5 |
2.5~3 |
2.5~3 |
|
Dimension(L*W*H)(mm) |
2500×2000×2750 |
2800×2200×2750 |
4150×2560×2750 |
4400×2800×2750 |
5350×3400×2750 |
5520×4750×2750 |
7100×6250×2750 |
7700×6750×2750 |
|
Weight(t) |
3.5 |
4 |
7 |
8 |
9.5 |
13 |
15 |
16 |
Main composition for Water Aqua Filling Machine
|
Description |
Supplier |
|
PLC |
Mitsubishi, Siemens |
|
Touch screen |
Mitsubishi, Siemens, PROFACE |
|
Frequency converter |
Mitsubishi, Siemens, Danfoss |
|
Air switch |
Schneider |
|
Breaker |
Siemens |
|
Contactor |
Siemens |
|
Photoelectric switch |
Omron, Keyence, P+F |
|
Approach switch |
Truck |
|
Main bearing |
NTN |
|
Lubrication bearing |
IGUS |
|
Sealing |
Sealtech |
|
Pneumatic components |
Camozzi |
We are specialized in manufacturing beverage production line.
optional equipments as follows,
1. bottle loading machine (the bottles can be unscrambled manual or automatically)
2. air conveyor
3. rinsing/filling/capping 3-in-1 machine
4. CIP system
5. cap loading machine
6. date code printer
7. stressless conveyor and filled bottle conveyor system
8. labeling machine
9. film wrapping or carton packaging machine
10. electric control system
11. purified air workshop
