Quick Details
-
Size of main trailer body:
-
2345*1903*811mm
-
Tire:
-
off-road tires *3, Mag-wheels*3
-
Surface treatment:
-
Powder coating
-
Water supply:
-
304 stainless steel 100L under body water tank
-
Tent:
-
Foldable tent
-
Holder:
-
Jerry can holder and gas holder
-
Sink and kitchen:
-
Stainless steel sink & kitchen
-
Color:
-
As your requirment
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Function:
-
Movable with handrail, rravel trailer, caravan, camper trailer
-
Material:
-
Cold rolled steel, aluminium, stainless steel, iron, etc
-
Size of main trailer body:
-
2345*1903*811mm
-
Tire:
-
off-road tires *3, Mag-wheels*3
-
Surface treatment:
-
Powder coating
-
Water supply:
-
304 stainless steel 100L under body water tank
-
Tent:
-
Foldable tent
-
Holder:
-
Jerry can holder and gas holder
-
Sink and kitchen:
-
Stainless steel sink & kitchen
-
Color:
-
As your requirment

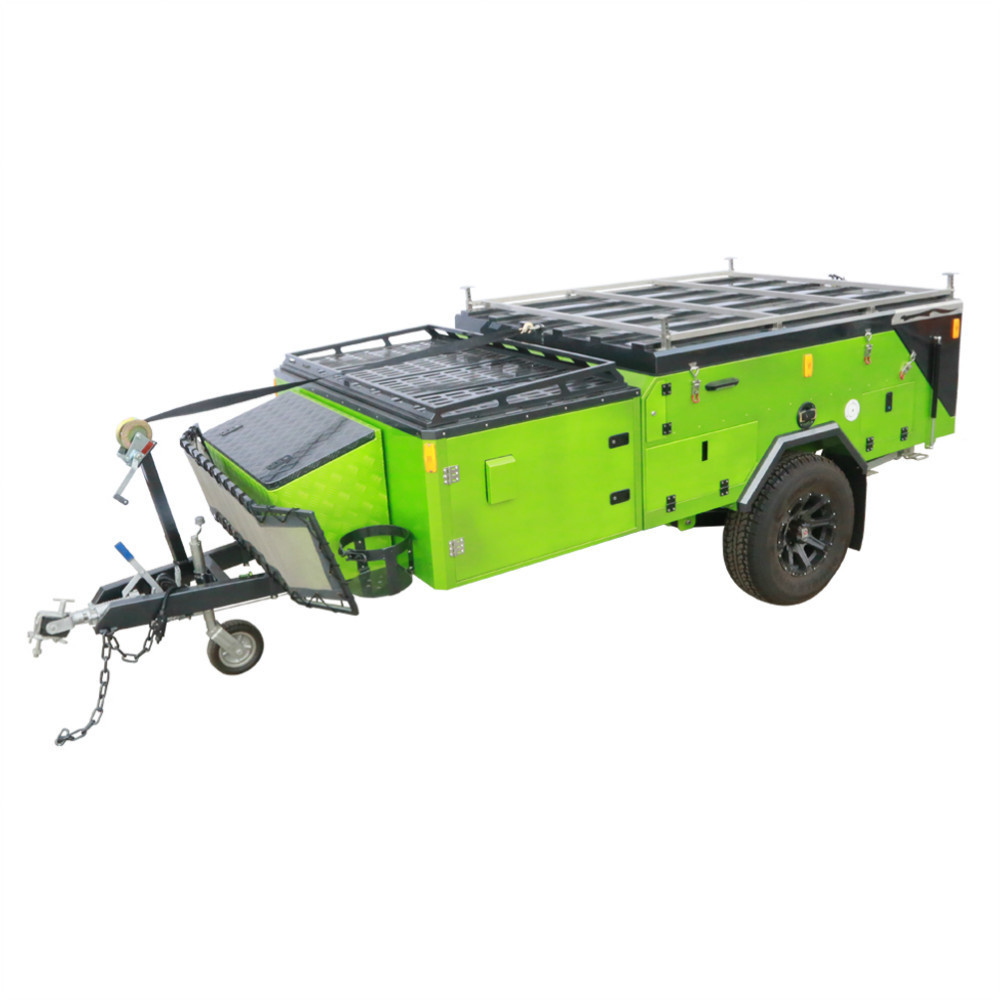

The Newest Rear Folding Off Road Camper Trailer Tent For Sale
|
BASIC SPECIFICATION |
|
|
Dimensions |
4873*1903*1567mm |
|
Size of main trailer body |
2345*1903*811mm |
|
Net Weight |
1450KG |
|
ATM |
2000KG |
|
GTW |
1860KG |
|
Surface |
powder coating as custom colors |
|
Storgae space |
large storage space of 1230L |
|
CHASSIS PART |
|
|
Chassis |
square tube of 75*50*3.0, 175*50*3.0 |
|
Suspension |
off road independent suspension with four shock absorbers |
|
Draw bar |
square tube of 100*50*3.0 |
|
Coupling |
load bearing 2000KG, 360 degree off road coupling,galvanized surface |
|
Winch |
load bearing of 1200BL, self-lock model, galvanized |
|
Safety chain |
304 stainless steel |
|
Axels |
45mm solid square |
|
Jockey Wheel |
10" swing-up, heavy duty solid jockey wheel |
|
Brake |
American standard electric brake with hand brake (Available to modify to other standards) |
|
TRAILER BODY |
|
|
Storage box |
front storage box for gas bottles, large middle storage box |
|
Flap |
SS304 & Aluminum |
|
Kitchen |
slide out kitchen full stainless steel 304 |
|
Wheels |
off-road tires *3, Mag-wheels*3, Fender*2 |
|
Stabilizer leg |
4 legs with adjustable height |
|
Jockey wheel |
load bearing 2000KG, swing up and foldable model,height can be adjusted from 580 to 830mm, galvanized surface |
|
Step/stair |
aluminum checker plate |
|
Water tank |
100L, can upgrade to 120L or 150L |
|
Cover tyre |
16 inch |
|
Tent |
including main tent, annex and galvanized steel poles, shower room is available, can update to stainless steel poles |
|
Jerry Can |
304 stainless steel |
|
Signal connectors |
13 holes or 7 holes |
|
Consign frame |
for disassembled trailer delivery |
|
Tail light |
LED,Turning light, brake light and reversing light |
|
Brackets and Holders |
Brackets for gas bottle, Jerry Can, holder for spare tyre |
