Quick Details
-
Dimension(L*W*H):
-
1640x1670x1920mm
-
Weight (KG):
-
1000
-
Power (kW):
-
1.5
-
Product Name:
-
Cylinder Honing Machine
-
Functions:
-
Honing Engine Cylinders
-
Application:
-
Cylinder Holes
-
Usage:
-
Cylinder Head Boring
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
INTEGRITY
-
Voltage:
-
Customer's Request
-
Dimension(L*W*H):
-
1640x1670x1920mm
-
Weight (KG):
-
1000
-
Power (kW):
-
1.5
-
Product Name:
-
Cylinder Honing Machine
-
Functions:
-
Honing Engine Cylinders
-
Application:
-
Cylinder Holes
-
Usage:
-
Cylinder Head Boring
PRODUCT DESCRIPTION

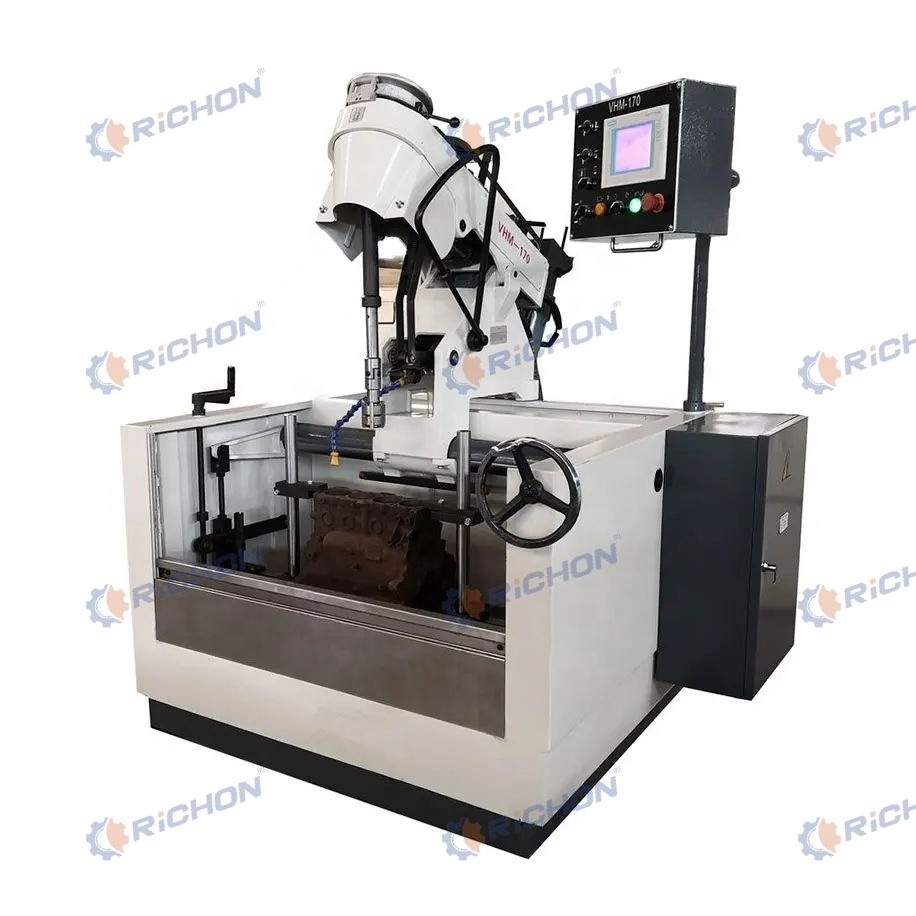

VHM170
SIEMENS controller automatical ----Vertical cylinder honing machine
Automated type
Manual type
The machine is mainly used for
honing single line engine cylinders
and
V-engine cylinders of automobiles motorcycles
and
tractors
and also
for other machine element holes.
|
No.
|
Item
|
Unit
|
Parameters
|
|
1
|
Range of honing hole diameter
|
mm
|
62~175
|
|
2
|
Max. honing hole depth
|
mm
|
300
|
|
3
|
Workpiece size (L*W*H)
|
mm
|
1168*558*673
|
|
4
|
Workpiece weight
|
kg
|
680 (incl. the fixture)
|
|
5
|
Spindle motor
|
kw
|
2.2
|
|
6
|
Spindle speed
|
rpm
|
90~350 stepless, adjustable
|
|
7
|
Stroke motor
|
kw
|
0.75
|
|
8
|
Stroke rate
|
Hz
|
40~80 stepless, adjustable
|
|
9
|
Stroke length range
|
mm
|
0~240
|
|
10
|
Cooling pump motor
|
kw
|
0.12
|
|
11
|
Coolant capacity volume
|
dm3
|
210
|
|
12
|
Floor area (L*W*H)
|
mm
|
2318*1835*2197
|
|
13
|
Machine tool net weight
|
kg
|
860
|
|
14
|
Machine tool weight (with coolant)
|
kg
|
1100
|
|
15
|
Ground load
|
kg/m2
|
800
|
|
16
|
Gross weight of machine tool (with package, without coolant)
|
kg
|
1100
|
RECOMMENDED PRODUCT
COUPONS
Q1:How long guarantee period you offer?/ how is warranty?
A1:12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.cost-value replacing parts available beyond thewarranty period.Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customerrequirements(relative cost born by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet differentrequirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more youtrust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6:Our factory is located in Kunming city, Yunnan province, in the southwest of China.
