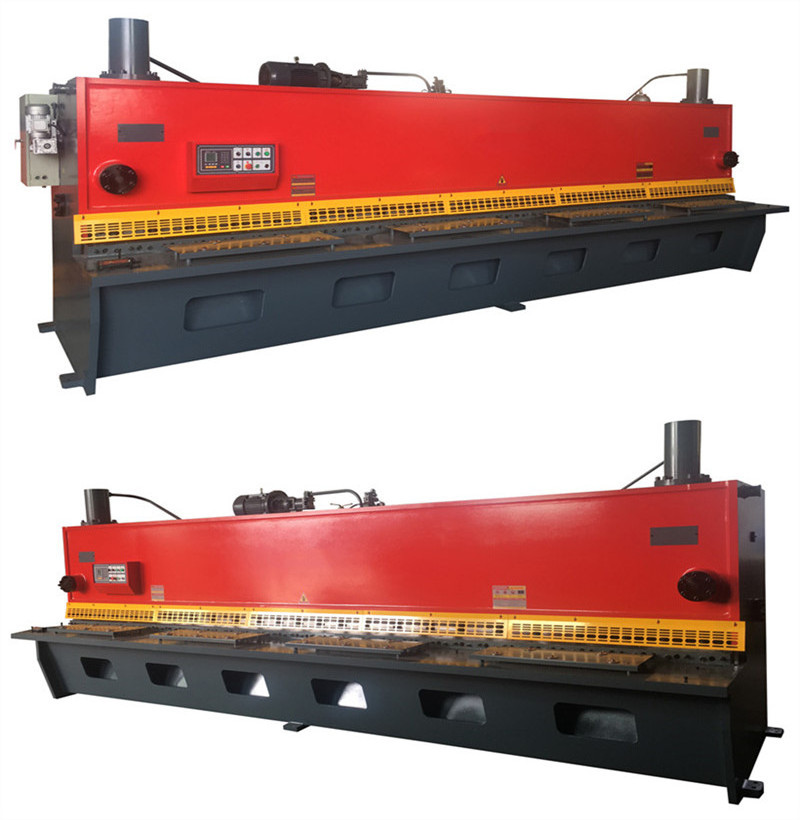

12mm thickness metal sheet Hydraulic guillotine shearing machine 3200mm

Main Features:

1. Main Features:

1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2.Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany, Easy to operate 10ft stainless steel plate cut shearing machine

3.The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity .

4.The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter. QC11K 8* 6000 E21S cnc controller hydraulic guillotine metal sheet shear machine

5.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode. 8mm hydraulic swing beam shearing machine metal cutting machine for Carbon steel

6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation. 12mm thickness metal sheet Hydraulic guillotine shearing machine 3200mm

2. Standard Equipment:

Estun E21sNC control System

Powered Back gaugeX-axis

DELTA Inverter controlled back gauge

HIWIN Ball screws & Polished rod with 0,05mm accuracy.

Squaring Arm and Front Support Arms

Germany Bosch-Rexroth Hydraulic

Germany EMB Tubing connector

Germany Siemens Main Motor

Tele mecanique/Schneider Electrics

Hydraulic &Electrical overload protection

Cutting Line Illumination and wire for shadow line cutting

Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)

3. Safety Equipment:

Safety Standards(2006/42/EC):

1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

Front finger Protection(Safety light curtain)

South Korea Kacon Foot Switch(Level 4 of safety)

Back metal safe fence with CE standards

Safety relay with Monitor the pedal switch and safety protection.

2,Features of this machine
1.The second generation of shear.
2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3.Advanced integrated hydraulic system with and excellent reliabitity quality.
4.Rapidly,accurately and conveniently adjusting the blade clearance by motor
5.The adjustable rake angle can minimize plate deformation.
6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the  accuracy of products can be also guaranteed.
7.Shearing in sections,shadow-line cutting.
8.Counter for the motorized back gauge.
9.Back support device (optional). Hydraulic Guillotine Shearing Machine, Steel Plate Cutting Machine

3 . Machine key components list

We can also change the components according to your demand.

4 .Attachment With the machine
