- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Drilling
-
Power:
-
NO
-
Voltage:
-
NO POWER
-
Weight (KG):
-
100
-
Dimension(L*W*H):
-
1835*1230*1810mm
-
Treatment Capacity:
-
60-320m³
-
Color:
-
Client's Request
-
Certification:
-
API
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JC
-
Model Number:
-
KAJ
-
Application:
-
Drilling
-
Power:
-
NO
-
Voltage:
-
NO POWER
-
Weight (KG):
-
100
-
Dimension(L*W*H):
-
1835*1230*1810mm
-
Treatment Capacity:
-
60-320m³
-
Color:
-
Client's Request
-
Certification:
-
API
High Performance Dredge Gravel Sand Pump centrifugal pump

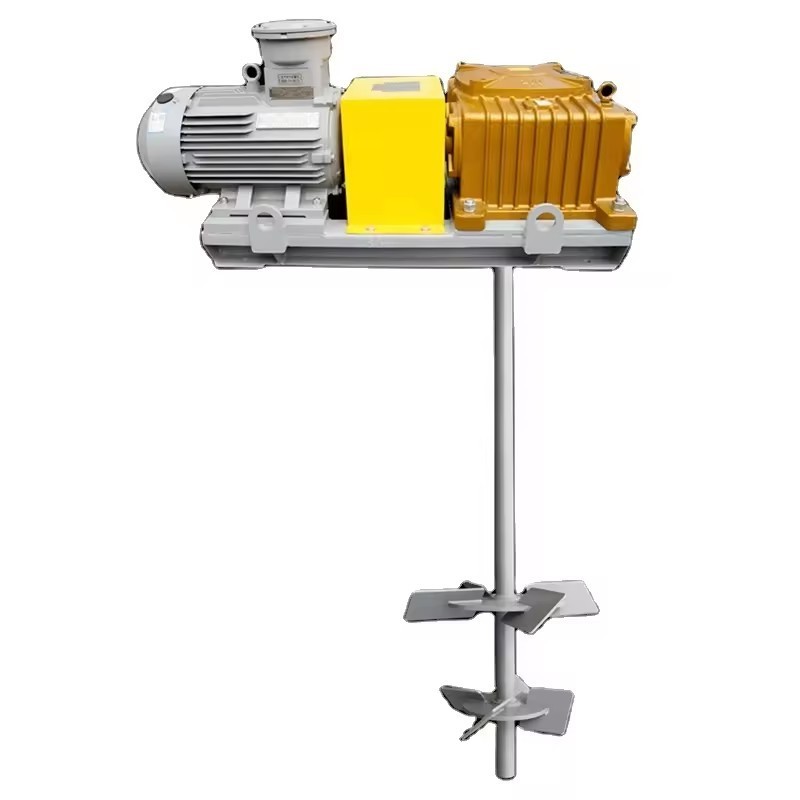

Mud agitator is part of the drilling fluids solids control equipment, which is mainly used to agitate and mix the drilling mud to prevent solids particles from depositing in the circulating tank and to stabilize the performance of drilling fluids. The motor and speed reducer, speed reducer and impeller shaft are connected by steel coupling.
|
SPECIFICATION FOR MUD AGITATOR
|
|
|
|
|
|
|
|
|||||||
|
Model
|
|
MA40
|
MA55
|
MA75
|
MA110
|
MA150
|
MA220
|
|||||||
|
Motor Power (KW) - Grade 4
|
|
4
|
5.5
|
7.5
|
11
|
15
|
22
|
|||||||
|
Motor rated speed
|
50Hz
|
1430
|
1450
|
1450
|
1460
|
1460
|
1470
|
|||||||
|
|
60Hz
|
1716
|
1740
|
1740
|
1752
|
1752
|
1764
|
|||||||
|
Impeller Speed (rpm)
|
50Hz
|
72
|
72
|
72
|
73
|
73
|
73
|
|||||||
|
|
60Hz
|
69
|
69
|
69
|
70
|
70
|
70
|
|||||||
|
Impeller Diameter (mm)
|
Double
|
500
|
650/600
|
700/650
|
800/700
|
850/750
|
1000/900
|
|||||||
|
|
single
|
|
650/700
|
800
|
850
|
900
|
/
|
|||||||
|
Reduction ratio
|
50Hz
|
1:20
|
|
|
|
|
|
|||||||
|
|
60Hz
|
1:25
|
|
|
|
|
|
|||||||
|
Shaft Length (mm)
|
Double
|
1100
|
1100
|
1800/2100
|
1800/2100
|
1800/2100
|
1800/2100
|
|||||||
|
|
Single
|
|
|
1500
|
1500
|
1500
|
/
|
|||||||
|
|
The length of Agitating shaft could customized according to the tank's depth
|
|
|
|
|
|
|
|||||||
|
Weight (kg)
|
|
191
|
275
|
287
|
366
|
459
|
738
|
|||||||
|
External dimension (mm)
|
|
890×500×518
|
1020×600×576
|
1040×600×576
|
1180×660×663
|
1280×710×673
|
1428×860×730
|
|||||||
|
Remark
|
All weight and external dimension excluding Agitating shaft
|
|
|
|
|
|
|
|||||||
