Quick Details
-
Material:
-
PP
-
Weight:
-
/
-
Size:
-
/
-
Power:
-
/
-
Weight (KG):
-
1 kg
-
Filter Media:
-
Polypropylene/bleached cotton/glass fiber
-
Micron Ratings:
-
1.0, 5.0, 10, 20um
-
Inner Core:
-
Polypropylene/Stainless steel
-
Length(Base on DOE Cut Ends):
-
10'', 20", 30'', 40'', 50'', 60'', 70''
-
Endcap:
-
DOE,SOE (226,222)
-
Certification:
-
ISO9001, CE, IFTS, GMP etc.
-
Outer Diameter:
-
63mm (2.5"), 114mm(4.5")
-
Feature:
-
High dirt holding capacity for depth filtration, absolute filters
-
Application 1:
-
Wine, bee, mineral water, pure water, beverage filtration
-
Application 2:
-
Process and waste water pre-fitration in electronics
Quick Details
-
Core Components:
-
Wound Filter Cartridge
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KOSMA filter
-
Material:
-
PP
-
Weight:
-
/
-
Size:
-
/
-
Power:
-
/
-
Weight (KG):
-
1 kg
-
Filter Media:
-
Polypropylene/bleached cotton/glass fiber
-
Micron Ratings:
-
1.0, 5.0, 10, 20um
-
Inner Core:
-
Polypropylene/Stainless steel
-
Length(Base on DOE Cut Ends):
-
10'', 20", 30'', 40'', 50'', 60'', 70''
-
Endcap:
-
DOE,SOE (226,222)
-
Certification:
-
ISO9001, CE, IFTS, GMP etc.
-
Outer Diameter:
-
63mm (2.5"), 114mm(4.5")
-
Feature:
-
High dirt holding capacity for depth filtration, absolute filters
-
Application 1:
-
Wine, bee, mineral water, pure water, beverage filtration
-
Application 2:
-
Process and waste water pre-fitration in electronics

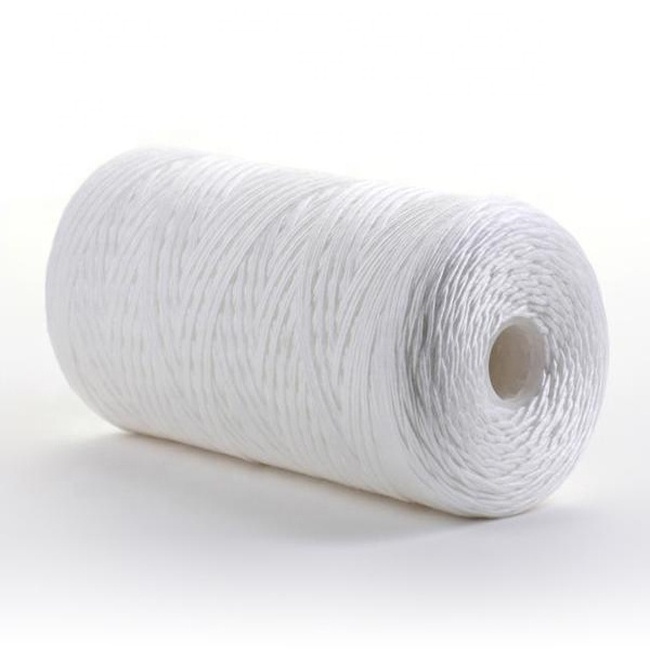

PP/Bleached Cotton/Glass Fiber String Series Wound Filter Cartridge with High Dirt Holding Capacity
Features and Benefits
- Polypropylene, bleached cotton and glass Fiber filter medias for option;
- High dirt holding capacity for depth filtration, protection of absolute filters;
- Many connections(Cut Ends, 226, 222 End caps) are available;
- Wide chemical compatiblity, pH 1-13;
Typical Applications
- Prefiltration for pure water system;
- Prefiltration for pharmaceutical and chemical solution;
- Process and waste water prefiltration in electronics industry;
- Wine,beer,mineral water,pure water,beverage filtration;
Specifications
|
Materials of Construction |
Filter Media |
Polypropylene/bleached cotton/glass fiber
|
| Inner Core |
Polypropylene/Stainless steel
|
|
| Micron Ratings | 1.0, 5.0, 10, 20um | |
| Filtration Effeciency | ≥80% | |
| O-Rings/Gaskets | Silicone,Nitrile,Viton, EPDM, etc. | |
|
Dimensions |
Outer Diameter |
63mm (2.5"), 114mm(4.5")
|
| Inner Diameter | 28mm (1.1") | |
| Length(Base on DOE Cut Ends) | 10'', 20", 30'', 40'', 50'', 60'', 70'' | |
| Filtration Area(m 2 ) | 40m 2 per 10" | |
| Operation Conditions | Max Operation Temperature: | Polypropylene: 80℃ (176℉) at ΔP ≤ 1.0 bar (14.5psi) Bleached cotton: 150℃ (300℉) at ΔP ≤ 1.0 bar (14.5psi) |
| Max Differential Pressure: |
Polypropylene: 4.0 bar (58 psi) at 25℃ (77℉) Bleached cotton: 5.0 bar (72 psi) at 25℃ (77℉) |
|
| PH Value Compatiblity: | 1-13 | |
| Sterilization: |
Not Recommended
|
Table 1: typical water flow rate @ 25 ℃ (77℉)
Ordering Information
| Products | Micron |
OD
|
Adaptor | Length |
Core material
|
O-ring/Gaskets |
|
PSS--PP Wound
|
100-1.0μm |
D63-63mm
|
AA-cut ends
|
10-10" |
P-PP
|
S-silicone,N-nitrile, E-EPDM,T-felon,V-viton
|
|
CSS--Cotton Wound
|
500-5.0μm |
D114- 114mm
|
CN-226/fin | 20-20" |
S-stainless steel
|
|
|
GSS--Glass Fiber Wound
|
1000-10.00μm | Outer Dia. of Glass Fiber wound is only 63mm(2.5'') | BN-222/fin | 30-30" | How to order? Examples | |
| 2000-20.00μm | 40-40" | PP wound, 1.0 μm, length:10", 63mm outside diameter, adaptor: cut ends, PP core, gasket:silicone | ||||
| others-XX | Selection code: PSS100AA10D63PS |
