Quick Details
-
Brand Name:
-
hzbocon
-
Voltage:
-
220 /380 v
-
Power:
-
4.5Kw /AC220V.50Hz, 4.5Kw /AC220V.50Hz
-
Weight:
-
90 KG
-
Dimension(L*W*H):
-
560X560X980(mm)
-
Chamber volume:
-
75L(400X600)mm
-
working pressure:
-
0.22MPa
-
Working temperature:
-
134 Degrees Celsius
-
Max working pressure:
-
0.23 Mpa
-
Heat average:
-
≤±1℃
-
Timer:
-
0~99min or 0~99hour59min
-
Adjustment of temperature:
-
105~134 Degrees Celsius
-
Overall dimension:
-
560X560X980(mm)
-
G.W N.W:
-
90kg/70KG
Quick Details
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
sterilizer
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
hzbocon
-
Voltage:
-
220 /380 v
-
Power:
-
4.5Kw /AC220V.50Hz, 4.5Kw /AC220V.50Hz
-
Weight:
-
90 KG
-
Dimension(L*W*H):
-
560X560X980(mm)
-
Chamber volume:
-
75L(400X600)mm
-
working pressure:
-
0.22MPa
-
Working temperature:
-
134 Degrees Celsius
-
Max working pressure:
-
0.23 Mpa
-
Heat average:
-
≤±1℃
-
Timer:
-
0~99min or 0~99hour59min
-
Adjustment of temperature:
-
105~134 Degrees Celsius
-
Overall dimension:
-
560X560X980(mm)
-
G.W N.W:
-
90kg/70KG
Products Description

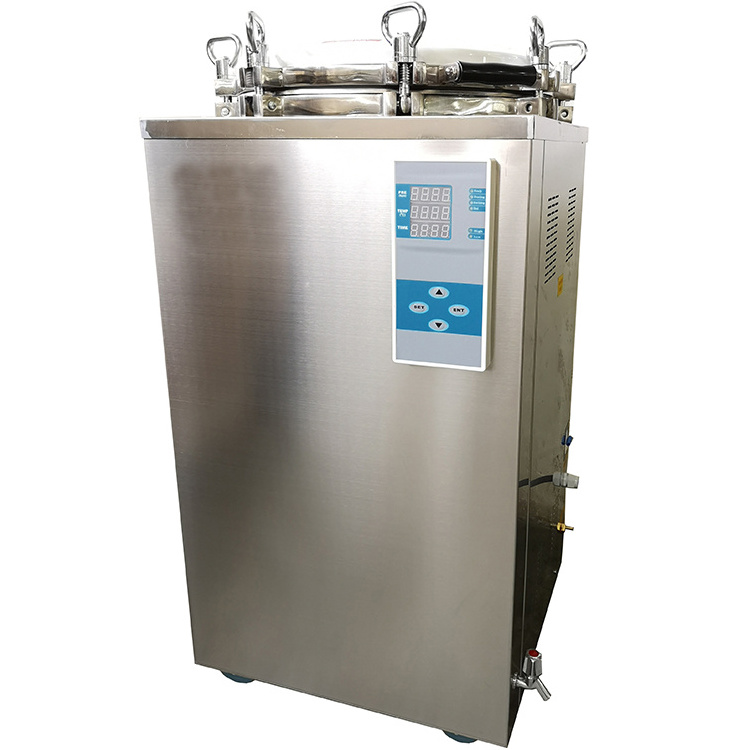

LS-35LD, LS-50LD, LS-75LD, LS-100LD, LS-120LD, LS-150LD counter pressure sterilizer is microcomputer-program -controlled,which is adopts electric heating method. The water is directly injected into the sterilization chamber to heat, and generates the high-pressure steam required for sterilization purpose. After the sterilization is finished, the compressed air is externally supplied for proceed the cooling for 3 minutes, the temperature inside would lower 30~40℃. The sterilizer is
designed to perform both boiling sterilization and rapid cooling pressure sterilization. The boiling range is set at ≤100 °C. The rapid cooling pressure sterilization range temperature is pre-selected from 105 ° C to 134 ° C. The heating tubes are provided with overload protection ,and the buzzer would alarm to indicate the sterilizing end. It is easy to operate, safe and reliable, which is suitable for disinfection and sterilization of food packaging and utensils, equipment and other items and especially suitable applying in food research institutes for sterility testing.
designed to perform both boiling sterilization and rapid cooling pressure sterilization. The boiling range is set at ≤100 °C. The rapid cooling pressure sterilization range temperature is pre-selected from 105 ° C to 134 ° C. The heating tubes are provided with overload protection ,and the buzzer would alarm to indicate the sterilizing end. It is easy to operate, safe and reliable, which is suitable for disinfection and sterilization of food packaging and utensils, equipment and other items and especially suitable applying in food research institutes for sterility testing.
Fully stainless high-alloy steel structure Digital display of working status, touch of key
Auto discharge the cool air, and steam discharging automatically after sterilization
Automatically shut off with beep reminding after sterilization
With two stainless steel sterilizing baskets Easy to operate, safe and reliable
Autoclave sterilizers are an essential tool in many medical, laboratory, and industrial settings. Autoclave sterilizers use heat, pressure, and steam to sterilize items, and are capable of eliminating microorganisms, bacteria, viruses, and other pathogens. Autoclave sterilizers are a safe, efficient, and cost-effective method of sterilizing a variety of items, including surgical instruments, laboratory equipment, and other medical supplies that come into contact with patients.
The process of sterilization using an autoclave can be divided into three distinct stages. Firstly, items to be sterilized are placed into the chamber of the autoclave, and the door is closed and sealed. Secondly, the autoclave is pressurized, which forces steam into the chamber, raising the temperature to a point at which the microorganisms are killed. Lastly, the pressure is released, and the steam is vented, allowing the items to cool and dry.
The use of an autoclave sterilizer is an important step in ensuring patient safety and minimizing the risk of cross-contamination or infection. Autoclave sterilizers effectively kill a wide range of microorganisms, including bacteria, fungi, and viruses, and are capable of eliminating even the most resilient pathogens. Autoclave sterilizers are also highly reliable, providing a consistent level of sterilization, and they can be used to process a wide variety of materials, including metal, plastic, glass, and rubber.
In addition to their effectiveness and reliability, autoclave sterilizers are also cost-effective and easy to use. Autoclave sterilizers require little maintenance and are relatively simple to operate. Autoclave sterilizers can also be used to sterilize a wide range of items in a single cycle, meaning that the cost of sterilizing a single item is lower than with other methods.
Autoclave sterilizers are an essential tool for any medical, laboratory, or industrial setting. Autoclave sterilizers are capable of effectively and efficiently eliminating a wide range of microorganisms, providing a safe and reliable method of sterilization. Autoclave sterilizers are also cost-effective, easy to operate, and require little maintenance. For these reasons, autoclave sterilizers are an invaluable tool in any facility that requires reliable and efficient sterilization.
|
Model technical data
|
LS-35LD(automatic)
|
|
LS-50LD(automatic)
|
|
LS-75LD(automatic)
|
|
LS-100LD(automatic)
|
||||||
|
Chamber volume
|
35L(φ318×450)mm
|
|
50L(φ340×550)mm
|
|
75L(φ400×600)mm
|
|
100L(φ440×650)mm
|
||||||
|
working pressure
|
0.22MPa
|
|
|
|
|
|
|
||||||
|
Working temperature
|
134℃
|
|
|
|
|
|
|
||||||
|
Max working pressure
|
0.23 Mpa
|
|
|
|
|
|
|
||||||
|
Heat average
|
≤±1℃
|
|
|
|
|
|
|
||||||
|
Timer
|
0～99min or 0～99hour59min
|
|
|
|
|
|
|
||||||
|
Adjustment of temperature
|
105～134℃
|
|
|
|
|
|
|
||||||
|
Power
|
2.5Kw/AC220V.50Hz
|
3Kw /AC220V.50Hz
|
|
4.5KW AC220V.50Hz
|
|
|
|
||||||
|
Overall dimension
|
480×460×850(mm)
|
520×520×980(mm)
|
|
560×560×980(mm)
|
|
590×590×1080(mm)
|
|
||||||
|
Transport dimension
|
570×550×970(mm)
|
590×590×1110(mm)
|
|
650×630×1150(mm)
|
|
680×650×1220(mm)
|
|
||||||
|
G.W/N.W
|
56Kg/ 42Kg
|
68Kg/50Kg
|
|
90Kg/70Kg
|
|
105Kg/85Kg
|
|
||||||
SIZE
CONSTRUCTION
OPERATION AND DISPLAY
1) BUTTON “SET”—— Sterilizing temperature / sterilizing time / parameter setting or inquiry For setting the
Sterilizing temperature（115~134 ℃）/sterilizing time（0~99 分），for checking the parameter.
Sterilizing temperature（115~134 ℃）/sterilizing time（0~99 分），for checking the parameter.
“ ▲ ”—— Increase （+） For increase theparameter, and reset during working.
“ ▼ ”—— Decrease（—） For decrease the parameter, and reset during working.
“START”—— For startthe cycle. Indicating lamp Water lamp indicating lamp
Display temperaure and SET parameter Display time and SET parameter Pressbutton Display pressure and SET parameter 9
2）DISPLAY INSTRUCTION
Nixie tube（upper）——display pressure（KPa）
Nixietube（middle）——display temperature（℃）
Nixie tibe（down）——display time（min）
Cycle ——Indicating each step of the sterilizing,including, stand-by lamp, heating lamp, sterilizing lamp and end lamp
Water level —— Indicating present water level,including high Level and low level lamp. If the water level between high and low, then the low level lamp will flash.
3）OTHER INSTRUCTION
Break switch At the lower side of the sterilizer, which is used during the equipment is under standby status.
Drain knob At the lower part of the sterilizer, which is used for the discharge of water from the container
