Quick Details
-
Production Capacity:
-
50 Sets/month
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Dianosaw
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
2400*2200*2750
-
Weight:
-
4200 kg
-
Marketing Type:
-
New Product 2023
-
Function:
-
Cutting Profiling
-
Control system:
-
CNC
-
Cutting length:
-
200-1200mm
-
Max.cutting diameter:
-
60mm
-
Min.cutting diameter:
-
350/2pcs,220/4pcs
-
Max.diameter of blade:
-
440/470mm
-
Total power:
-
29.37kw
-
Overall dimensions(LxWxH):
-
2400x2200x2750mm
Quick Details
-
Type:
-
Stone Polishing Machine
-
Power:
-
11KW*2
-
Cutting thickness (max):
-
130mm
-
Production Capacity:
-
50 Sets/month
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Dianosaw
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
2400*2200*2750
-
Weight:
-
4200 kg
-
Marketing Type:
-
New Product 2023
-
Function:
-
Cutting Profiling
-
Control system:
-
CNC
-
Cutting length:
-
200-1200mm
-
Max.cutting diameter:
-
60mm
-
Min.cutting diameter:
-
350/2pcs,220/4pcs
-
Max.diameter of blade:
-
440/470mm
-
Total power:
-
29.37kw
-
Overall dimensions(LxWxH):
-
2400x2200x2750mm
Product Description
Technical Parameter

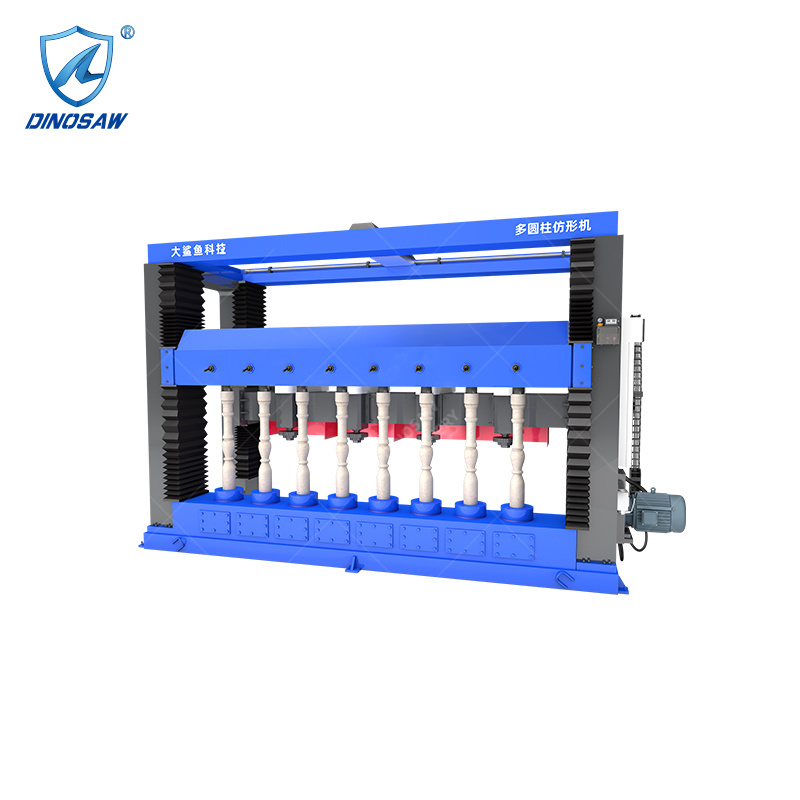

8 Pillars Baluster Cutting Machine
This machine is a patented product of our company. All components are brand-name products, which are easy to operate and maintain. The machine adopts a rectangular structure. It can process various revolving stone or concrete pieces, such as circular rails, balls, column bottoms, column caps, etc., changing the unfavorable effects of manual processing, such as uniform effect, high consumption, and poor precision. And the machine has two control systems: PLC and CNC, we only need to adjust the size, the machine can process 8 pieces at the same time, the product efficiency is very high.
|
Model
|
Unit
|
LGFX-LS8
|
|
Gross power
|
kw
|
35
|
|
Max. processing diameter
|
mm
|
300
|
|
Max. processing height
|
mm
|
1250
|
|
Gross weight
|
kg
|
5000
|
|
Dimensions (L x W x H)
|
mm
|
3480 x 1380 x 2660
|
Product Advantage
The longmen type machine design, the mircrocomputer control and optical fiber monitor. It can cut all kinds of solid of revolution, such as systloidal baluster, pellet, stylobate, cap and column and so on.
As a automatic machine, it has already avoided the defects of manual process: one worker can operate many sets of machines after adjusting the process parameters.
Certificate&Our partener
About Us
Product Processing Line
Packing & Delivery
FAQ
Q：Are you manufacturer or trading company?
A：We have two factories, one for stone processing machines and another for diamond tools. Besides, we are the only new composite technology company in China's stone machinery industry that integrates AI+IOT software development team, electrical engineer team, mechanical design team, and mechanical production team.
Q：What is your maximum processing size?
A：Our biggest model is LGFX-LS8,It can process four pieces of 230mm or process two pieces of 460mm.Can also be customized as per specific requirement.
Q：How long is the warranty period for machine?
A：One year, not including diamond blade,diamond segment etc. After warranty, we will continue to provide service support for client.
Q：Does your machine have remote control system?
A：Yes. Once connected with Internet, our service center engineer can enter the system to help check machine running status and correct setting parameters/datas if needed. Also we can transfer G Code or CAD drawing to the system and help upgrade the system future for free.
Q：How do I install and operator the machine,after receiving it?
A：We will provide an installation video which will make the whole thing as easy as possible for the user. If there is any problem, our engineers can go abroad to help you install and debug the machine, and teach you how to operate and maintain the machine correctly.
