Quick Details
-
Model Number:
-
K090-9-L
-
Protection Level:
-
IP65
-
Operating Temperature:
-
- 20~+70 ° (no icing)
-
Max. Current:
-
3A 240VA
-
Action distance:
-
6±3mm
-
Total trip:
-
28mm
-
Electrical life:
-
More than 150000 times
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
400v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SiRON
-
Model Number:
-
K090-9-L
-
Protection Level:
-
IP65
-
Operating Temperature:
-
- 20~+70 ° (no icing)
-
Max. Current:
-
3A 240VA
-
Action distance:
-
6±3mm
-
Total trip:
-
28mm
-
Electrical life:
-
More than 150000 times
-
Certification:
-
CE
Features
*There are many kinds of actuators, which are convenient to use;
*Conduit design with easier wiring;
*Metal shell, high mechanical strength;
*Pressure resistant, waterproof and oil proof structures;
*The built-in contact seat has a double spring design, which has a long mechanical life;
*Conduit design with easier wiring;
*Metal shell, high mechanical strength;
*Pressure resistant, waterproof and oil proof structures;
*The built-in contact seat has a double spring design, which has a long mechanical life;
Specification
|
Name
|

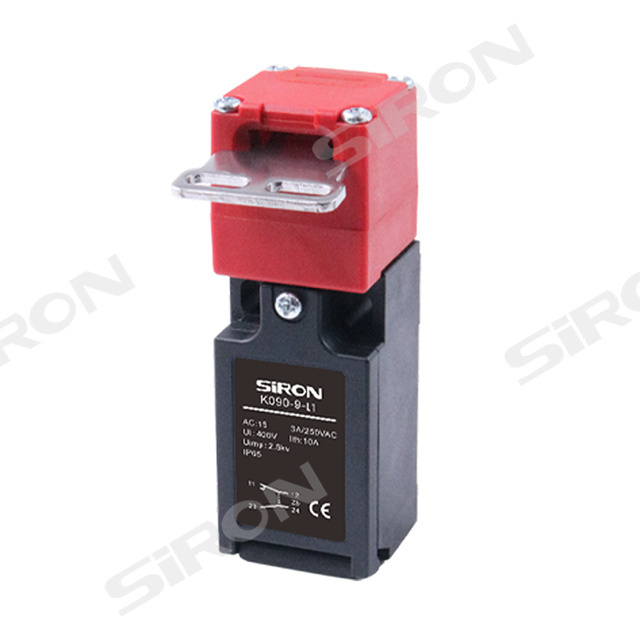

Vertical safety door limit switch
|
|
|
|
|
|
|||||
|
Model
|
K090-9-L1
|
K090-9-L2
|
K090-9-L3
|
K090-9-L4
|
K090-9-L5
|
K090-9-L6
|
|||||
|
Contact form
|
Two normally closed
|
|
|
One normally open and one normally closed
|
|
|
|||||
|
Conduit/
connector size
|
M20×1.5
|
|
|
|
|
|
|||||
|
Key type
|
Flat key
|
90 ° key
|
Swinging key
|
Flat key
|
90 ° key
|
Swinging key
|
|||||
|
Rated current
|
3A 240VAC(A300)
|
|
Operating snap
|
0.1m to 0.5m/s
|
|
Action frequency
|
Electrical: 30 times/minute
|
|
Contact resistance
|
Below 25m Ω (initial stage)
|
|
Insulation resistance
|
Above 100m Ω (below 500VDC)
|
|
Insulation voltage
|
400V
|
|
Dielectric strength
|
AC2500V/Umip 4KV
|
|
Operating insert ionforce
|
14.7N(1500gf)
|
|
Operating pumping power
|
29.42N(3000gf)
|
|
Action distance
|
6±3mm
|
|
Vibration
|
10 to 55Hz 1.5mm double amplitude
|
|
Shock
|
Mechanical durability: 1000m/Sec2 (about 100G'S)
Misoperation durability: 300m/Sec2 (about 30G'S) |
|
Operating temperature
|
When in use: - 20~+70 ° (no icing)
|
|
Operating humidity
|
Below 95% RH
|
|
Electrical life
|
More than 150000 times
|
|
Waterproof level
|
Ip65
|
|
Total trip
|
28mm
|
|
Forced disengagement force
|
58.84N(6000gf)
|
|
Forced departure distance
|
10mm
|
