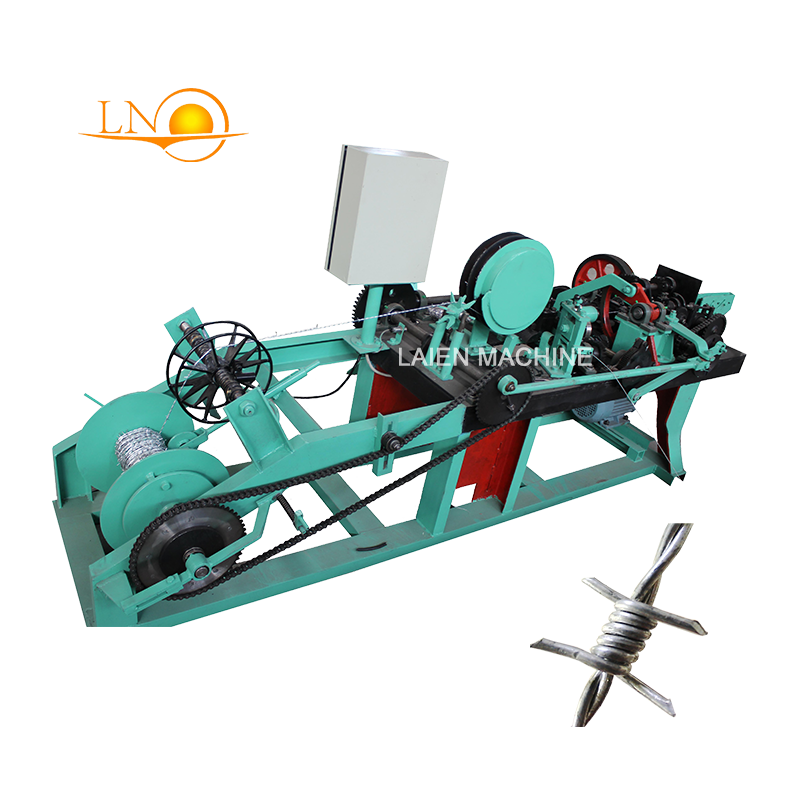

It is the specialized machine for manufacturing barbed wires. The machine has high efficiency and quality with compact structure, low noisy, easy operation and regulation, convenient maintenance and low power consumption, which is suitable for producing all kinds of barbed wires.
The material can be galvanized wire, pvc coated wire,low carbon wire etc.
The products are most used in highway, railway, grassland parapet and other places.
Types of the machines:
CS-A Double twisted barbed wire machine.
CS-B straight and reverse twist Barbed wire machine .
CS-C single twisted barbed wire machine.
|
high quality double twisted barbed wire fence making machine |
|
|
|
|||
|
Model
|
CS-C
|
Motor power
|
2.2kw
|
|||
|
Wire diameter
|
1.5-2.8mm
|
Rated voltage
|
380V 50HZ
|
|||
|
Strand diameter
|
1.2-2.8mm
|
Rated output
|
80kg/h
|
|||
|
Barb pitch spacing
|
3'' 4'' 5'' or 4'' 5'' 6''
|
Weight
|
1200kg
|
|||
|
Wire collection part size
|
1300*800*700mm
|
Outside size
|
1900*1300*980mm
|
|||
1) We are more focus on spare parts processing.It has good quality.
2) High speed for each machine.
3)we have high speed one also.
4) CS-A,CS-B,CS-C are suitable for low-carbon wire,galvanzied wire. For CS-A barbed wire machine,it can accept pvc coated wire.
Item: CS-A
Motor: 3kw
Rated output: 120kg-200kg/h
Weight: 1500kg
Outside size: 1900*1300*980mm
Wire collection part size: 1800*750*750mm
Barb pitch space: 3'' 4'' 5''or 4'' 5'' 6''
Strand diameter: 1.8-3.0mm
Wire diameter: 1.7-2.8mm
Rotating speed of drive shaft: 530r/min
Item:
CS-C
Motor:
2.2kw
Rated output:
120kg/h
Weight:
1200kg
Outside size:
1900*1300*980mm
Wire collection part size:
1300*800*700mm
Barb pitch space:
3'' 4'' 5''or 4'' 5'' 6''
Strand diameter:
1.2-2.8mm
Wire diameter:
1.5-2.8mm
Rotating speed of drive shaft:
450r/min
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* One year warranty for spare parts.
* We will provide you technical support for whole life.
* Engineers available to service machinery overseas.
|
Packaging
|
|
|
|
Size
|
1900*1300*980mm;1800*750*750mm
|
|
|
Weight
|
1500KG
|
|
|
Packaging Details
|
Waterproof cloth inside and outside packed in wooden cases.
|
|
|
Packaging
|
|
|
|
Size
|
2100*1500*1180mm;2000*950*950mm
|
|
|
Weight
|
1500KG
|
|
|
Packaging Details
|
Waterproof cloth inside and outside packed in wooden cases.
|
|
