Quick Details
-
Place of Origin:
-
Guangdong, shenzhen
-
Brand Name:
-
chuangxinjia
-
Model Number:
-
CXJ-XYH-356
-
Product name:
-

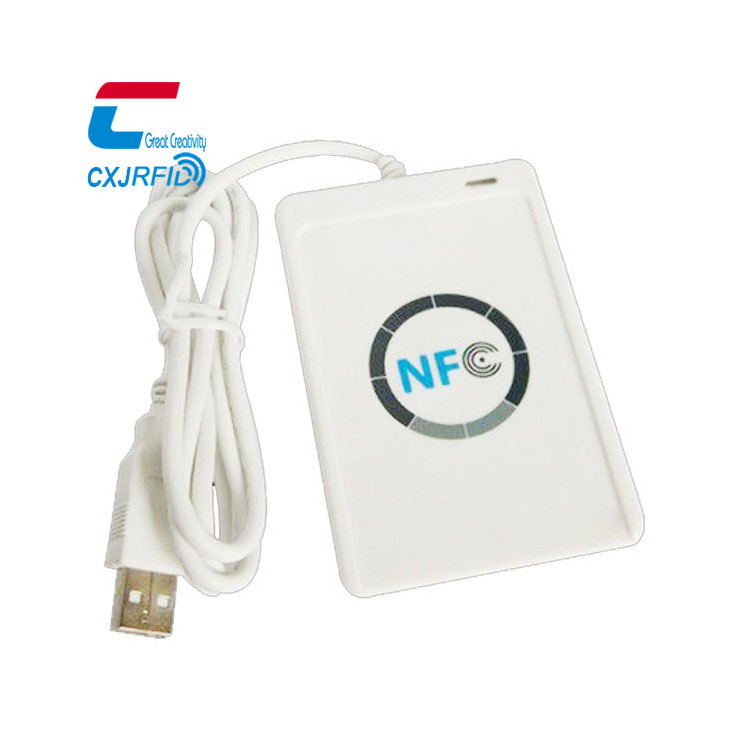

NFC Long Distance Reader
-
Size:
-
98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
-
Material:
-
ABS
-
Weight:
-
70g
-
Supply Current:
-
200mA (operating); 50mA (standby); 100mA (normal)
-
Interface:
-
USB Full Speed
-
Reading distance:
-
Up to 50 mm (depends on the tag type)
-
Working protocol:
-
ISO14443A/B
-
Document:
-
Demo software,API,Development guidance
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Communication Interface:
-
RFID, NFC
-
Frequency:
-
13.56Mhz
-
Place of Origin:
-
Guangdong, shenzhen
-
Brand Name:
-
chuangxinjia
-
Model Number:
-
CXJ-XYH-356
-
Product name:
-
NFC Long Distance Reader
-
Size:
-
98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
-
Material:
-
ABS
-
Weight:
-
70g
-
Supply Current:
-
200mA (operating); 50mA (standby); 100mA (normal)
-
Interface:
-
USB Full Speed
-
Reading distance:
-
Up to 50 mm (depends on the tag type)
-
Working protocol:
-
ISO14443A/B
-
Document:
-
Demo software,API,Development guidance
Product Description
1.
Introduction
The ACR122U is a PC-linked contactless smart card reader/writer developed on the 13.56 MHz contactless technology. It is the world’s first CCID-compliant contactless card reader/writer that follows both ISO 14443 and ISO 18092. This device is designed to support ISO 14443 Type A and B cards and NFC tags.
By making use of up to 424 kbps for NFC tag access and full USB speed of up to 12 Mbps, ACR122U can read and write faster and more efficiently. Furthermore, ACR122U is also PC/SC compliant which allows inter-operability across different applications and platforms. You can experience the convenience in using ACR122U, with its compact size and the various features it offers, for applications such as payment, access control, time and attendance, and mass transit.
By making use of up to 424 kbps for NFC tag access and full USB speed of up to 12 Mbps, ACR122U can read and write faster and more efficiently. Furthermore, ACR122U is also PC/SC compliant which allows inter-operability across different applications and platforms. You can experience the convenience in using ACR122U, with its compact size and the various features it offers, for applications such as payment, access control, time and attendance, and mass transit.
2. Features
* CCID-compliant
* PC/SC-compliant
* Read/write speed up to 424 kbps
* Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
* Supports ISO 14443 Type A and B, all 4 types of NFC (ISO/IEC 18092) tags
* Supports all 3 modes of NFC: reader, card emulation and peer-to-peer modes
* Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)
* USB PnP
* User-controllable bi-color LED
* Compact size: 98 mm (L) x 65 mm (W) x 12.8 mm (H)
* Light Weight: 70 g
* User-controllable buzzer
* PC/SC-compliant
* Read/write speed up to 424 kbps
* Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
* Supports ISO 14443 Type A and B, all 4 types of NFC (ISO/IEC 18092) tags
* Supports all 3 modes of NFC: reader, card emulation and peer-to-peer modes
* Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)
* USB PnP
* User-controllable bi-color LED
* Compact size: 98 mm (L) x 65 mm (W) x 12.8 mm (H)
* Light Weight: 70 g
* User-controllable buzzer
3. Typical Applications
* e-Government
* e-Banking and e-Payment
* e-Healthcare
* Transportation
* Network Security
* Access Control
* Loyalty Program
* e-Banking and e-Payment
* e-Healthcare
* Transportation
* Network Security
* Access Control
* Loyalty Program
