Weight:5 tons
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SUSSMAN
-
Product name:
-

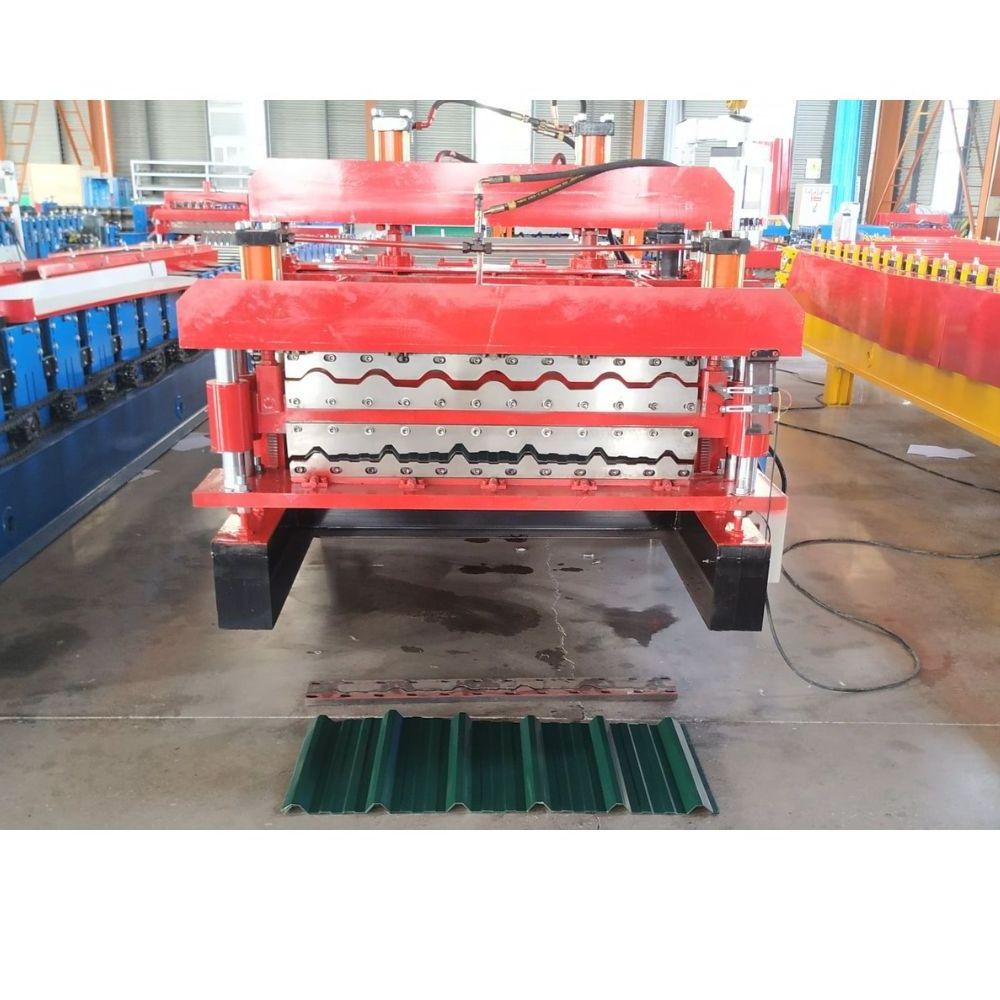

Double Layer Roll Forming Machine
-
Material thickness:
-
0.3-0.8mm galvanized steel
-
Roll station:
-
About 18 stations
-
Working speed:
-
0-12m/min
-
Main motor:
-
7.5kw
-
Hydraulic power:
-
5.5kw
-
Control system:
-
PLC+touch screen
-
Transmission:
-
Chain
Quick Details
-
Weight (KG):
-
8000
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUSSMAN
-
Product name:
-
Double Layer Roll Forming Machine
-
Material thickness:
-
0.3-0.8mm galvanized steel
-
Roll station:
-
About 18 stations
-
Working speed:
-
0-12m/min
-
Main motor:
-
7.5kw
-
Hydraulic power:
-
5.5kw
-
Control system:
-
PLC+touch screen
-
Transmission:
-
Chain
Product Description
Rolling Speed: 12m/min(cutting time is not include)
Steel sheet Thickness: 0.3-0.8mm galvanized sheet, color painted coils
Steel sheet Thickness: 0.3-0.8mm galvanized sheet, color painted coils
Roller Stations: about 18 stations
Roller Material : 45#forge steel, coated with chrome
Shaft Material and DIA:￠75mm,material is 45# forge steel, Chrome with quenching
Maim Motor Power: 7.5kw
Hydraulic Station Power: 5.5kw
Hydraulic Station Power: 5.5kw
Hydraulic Pressure: 12Mpa
Material Of The Stations: Wall plate thickness 16mm
Tolerance: +1.5mm
Power supplier:380V, 50HZ,3 phase or as request
Power supplier:380V, 50HZ,3 phase or as request
Machine weight: about 10 tons
Specification
|
item
|
value
|
|
Applicable Industries
|
Building Material Shops, Home Use, Retail, Construction works
|
|
Showroom Location
|
Canada, United States, Viet Nam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Spain, Kenya, Chile, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Ukraine, Nigeria, Malaysia, Australia
|
|
Condition
|
New
|
|
Type
|
Tile Forming Machine
|
|
Tile Type
|
Steel
|
|
Use
|
ROOF
|
|
Production Capacity
|
0-12 m/min
|
|
Place of Origin
|
China
|
|
|
Jiangsu
|
|
Brand Name
|
SUSSMAN
|
|
Voltage
|
220/380 or as request
|
|
Weight
|
8000kg
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Easy to Operate
|
|
Rolling thinckness
|
0.3-0.8mm
|
|
Feeding width
|
1220
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Marketing Type
|
New Product 2023
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Pressure vessel, Motor, Bearing, Pump, Engine, PLC
|
|
Product Name
|
Roof Panel Roll Forming Machine
|
|
Material Thickness
|
0.3-0.8mm galvanized steel
|
|
Roller Material
|
45# Steel
|
|
Cutting Blade Material
|
Cr12Mov Steel
|
|
Roller Station
|
About 18 stations
|
|
Working Speed
|
0-12m/min
|
|
Main Motor
|
7.5kw
|
|
Hydraulic Power
|
5.5kw
|
|
Transmission
|
Chain
|
|
Application
|
Roof
|
Product Display
5 ton passive decoiler
Insider diameter of the un-coiler: 520-610mm
Weight:5 tons
Weight:5 tons
Hydraulic cutting
Hydraulic power: 5.5kw hydraulic system.
Blade Material: CR12Mov with heat treatment HRC58-62.
Tolerance: +-1.5mm
Control box
Power supplier: 380V, 50 Hz, Three Phase (adjusted with the requestment)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese(as request)
Unit of length: millimeter (switched on the control panel)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese(as request)
Unit of length: millimeter (switched on the control panel)
Passive outbale
It adopts welded steel and supported roller to transmit the products.
Size:6000*1000*1000mm
Size:6000*1000*1000mm
