Quick Details
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
460*180
-
Year:
-
2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUZHONG
-
Voltage:
-
220V-440 customized
-
Dimension(L*W*H):
-
1550*1150*1590mm
-
Weight (KG):
-
667
-
Power (kW):
-
1.1
-

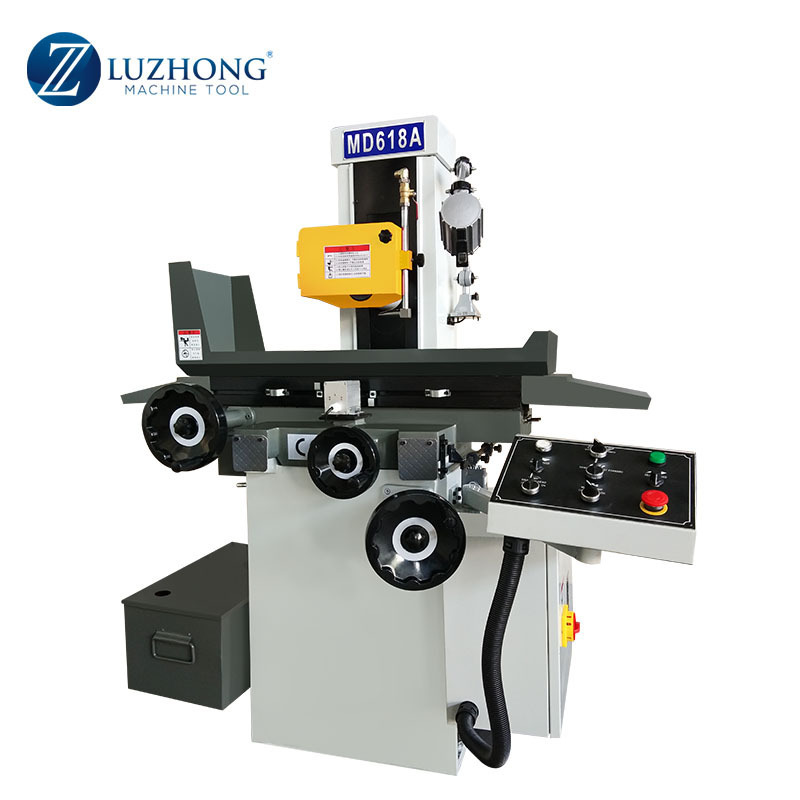

Product name:
-
electric grinding machine
-
Type:
-
Surface Grinding Machine
-
Model:
-
MD618A
-
Keywords:
-
electric universal surface grinding machine
-
Machine Type:
-
Manual Suface Grinding Machine
-
Spindle motor:
-
1.1kw
-
Worktable size:
-
460*180mm
-
Max.travel of table:
-
500*190mm
-
Table T slot(slot number*slot width):
-
1*14
-
Grinding wheel speed:
-
50HZ 2850r/min
Quick Details
-
Grinding Length(mm):
-
460
-
Table Travel (X) (mm):
-
500
-
Table Travel (Y) (mm):
-
190
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
460*180
-
Year:
-
2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUZHONG
-
Voltage:
-
220V-440 customized
-
Dimension(L*W*H):
-
1550*1150*1590mm
-
Weight (KG):
-
667
-
Power (kW):
-
1.1
-
Product name:
-
electric grinding machine
-
Type:
-
Surface Grinding Machine
-
Model:
-
MD618A
-
Keywords:
-
electric universal surface grinding machine
-
Machine Type:
-
Manual Suface Grinding Machine
-
Spindle motor:
-
1.1kw
-
Worktable size:
-
460*180mm
-
Max.travel of table:
-
500*190mm
-
Table T slot(slot number*slot width):
-
1*14
-
Grinding wheel speed:
-
50HZ 2850r/min
Products Description
|
Specifications
|
|
Units
|
MD618A
|
|
Worktable size (L * W)
|
|
mm
|
540×250
|
|
Max. travel of table(L * W)
|
|
mm
|
560×260
|
|
Table T slot (slot number x slot width)
|
|
mm
|
1×14
|
|
The grinding wheel size (o. d * w * i. d.)
|
|
mm
|
φ200×20×Φ31.75
|
|
Distance spindle center line to working table
|
|
mm
|
420
|
|
Grinding wheel speed
|
|
r/min
|
50HZ:2850 60HZ:3360
|
|
Table longitudinal(left and right) speed
|
|
m/min
|
3-20
|
|
The vertical (up and down) feed handwheel feed
|
Handwheel per turn
|
mm
|
1.25
|
|
|
Handwheel per lattice
|
mm
|
0.01
|
|
Transverse (front and rear) feed handwheel feed
|
Continuous(stepless)
|
mm/min
|
300
|
|
|
intermittent(stepless)
|
mm/min
|
0-5
|
|
|
Handwheel per turn
|
mm
|
2.5
|
|
|
Handwheel per lattice
|
mm
|
0.02
|
|
Reversing feeder X-feeder ouput speed
|
Total input power
|
W
|
150
|
|
|
X-feeder output speed
|
r/min
|
0-225
|
|
|
X-feeder size
|
mm
|
280*130*120
|
|
|
Y-feeder output speed
|
r/min
|
0-120
|
|
|
Y-feeder size
|
mm
|
280*130*120
|
|
Spindle motor
|
|
KW
|
1.1
|
|
Cooling motor
|
|
W
|
40
|
|
the process surface of the base level of the parallel degree
|
|
mm
|
300:0.005
|
|
Surface roughness
|
|
μm
|
Ra0.32
|
|
Machine weight
|
|
kg
|
667
|
|
|
|
kg
|
767
|
|
External size (L * w * h)
|
|
mm
|
1550x1150x1590
|
|
Packing size (L * w * h)
|
|
mm
|
1000x1150x1760
|
