Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3300 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
15
-
Place of Origin:
-
China
-
Voltage:
-
380V 3 phase /220V 3 phase
-
Weight (KG):
-
4500
-
Control system:
-
PLC(Support DXF files)
-
Blade motor power:
-
7.5kw 15kw 18.5kw 22kw 26kw
-
Cutting materials:
-
Stone Marble Granite Tile
-
Transmission:
-
XY-axis:rack
-
Max Cutting Length:
-
3600mm
-
Motor:
-
Servo motor with 1800W
-
Working area:
-
2200x3600mm
-
Cutting thickness (max):
-
190mm
-
Head rotation:
-
0-360° at any degree
-
Worktable tilting:
-
0-85° at any degree
Quick Details
-
Working Table Size(mm):
-
2000 3300
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 3400 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3300 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
15
-
Place of Origin:
-
China
-
Voltage:
-
380V 3 phase /220V 3 phase
-
Weight (KG):
-
4500
-
Control system:
-
PLC(Support DXF files)
-
Blade motor power:
-
7.5kw 15kw 18.5kw 22kw 26kw
-
Cutting materials:
-
Stone Marble Granite Tile
-
Transmission:
-
XY-axis:rack
-
Max Cutting Length:
-
3600mm
-
Motor:
-
Servo motor with 1800W
-
Working area:
-
2200x3600mm
-
Cutting thickness (max):
-
190mm
-
Head rotation:
-
0-360° at any degree
-
Worktable tilting:
-
0-85° at any degree
B cheap price 4 axis 5 axis bridge saw cutting machine cnc stone cutting machine for marble granite quartz stone
|

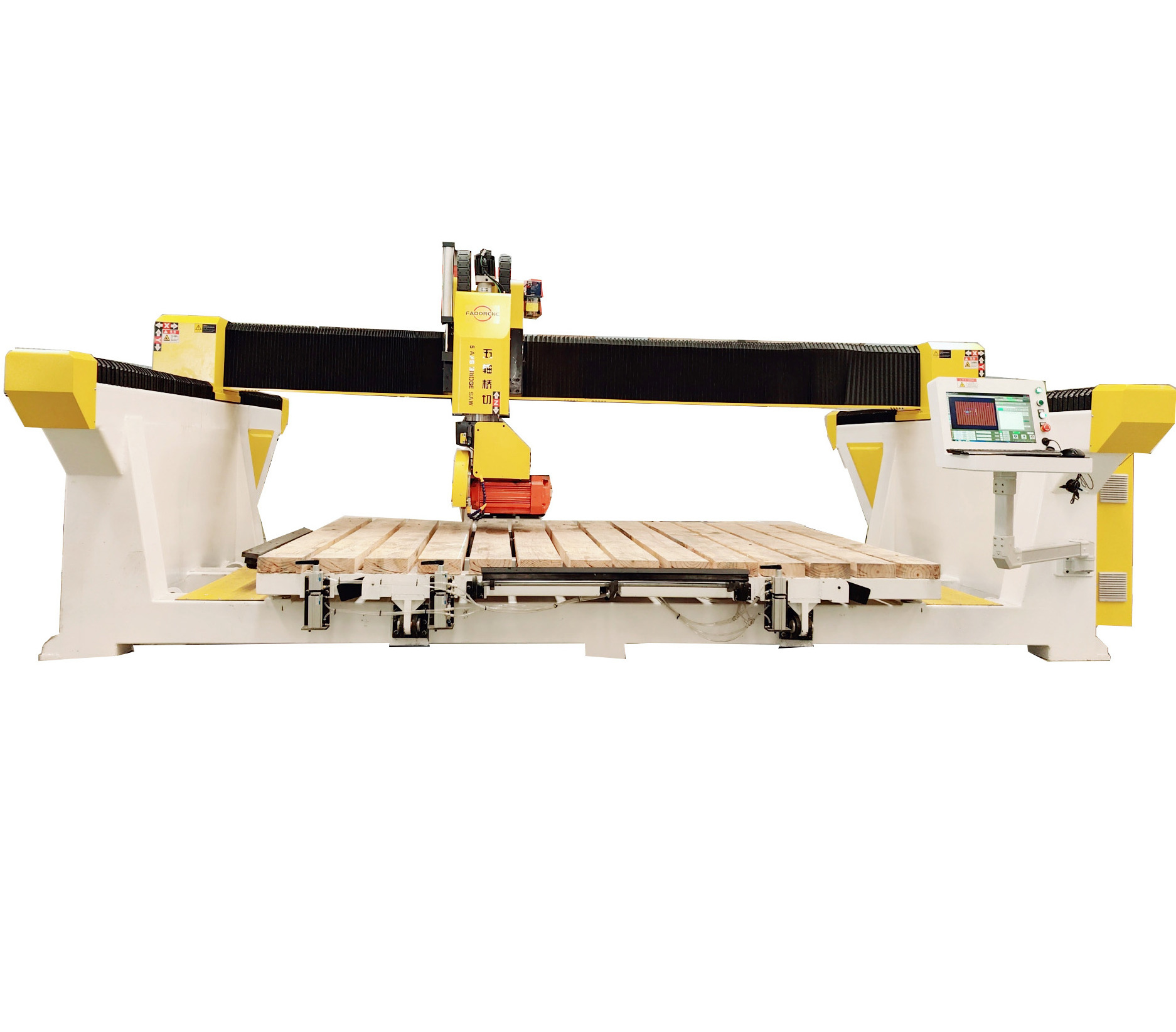

FA-B 5 axis CNC stone bridge saw |
|
|
|
Working travel |
X, Y, and Z |
3300*2000*400mm |
|
|
C axis |
±360° |
|
|
A axis |
0-90° |
|
Low-voltage electronics |
Xaxis |
30m/min |
|
|
Yaxis |
30m/min |
|
|
Zaxis |
15m/min |
|
Servo motor |
XYZAC |
All with servo motor ,Z axis with brake |
|
Guide rail |
X, Y, and Z Taiwan Hiwin |
|
|
Rack |
X,Y |
2MT-WIN |
|
Saw motor |
7.5KW,11KW , 15KW ,18.5kw 22 kw rated: 3000r/min |
|
|
Control system |
Customized system with PLC ,keyboard ,Mouse(built-in CAM software) |
|
|
Programming method |
CAD image input & Manual programming |
|
|
Water consumption |
2 m3/h |
|
|
Diameter Blade saw |
400mm/500mm/600mm |
|
|
Gross Weight |
5000kg |
|
|
Package Dimension (L x W x H) |
5500x2200x2200 |
|
Characteristic:
1. Powerful
15
kw 18.5 kw 22kw
motor with adjustable speed.
2. Blade can tilt 45° automtically for chamfering cutting.
3. Worktable can tilt 0-85°, easy for slab loading
4 . Full graphic operation with photo typesetting. What you see is what you will get.
5 . Support cutting, milling, edge grinding, drilling and laser fixed pointing drawing.
6.
Worktable can rotate 0-360°, pause at every 45° automatically or stop at any degree by remote control.
7
. With less electricity and more efficiency, the cost is decreased much.
8
. High quality accessories and electric parts are used to secure long service life and low cost.
