Quick Details
-
Product name:
-
21*15 KCD1 Rocker switch
-
Fuction:
-
SPST ON-OFF-ON
-
Rating:
-
6A 250VAC/10A 125VAC
-
Actuator color:
-
Red, Orange, Green, Blue
-
Certificate:
-
CE, CQC
-
Standard:
-
IEC Standard
-
Contact Resistance:
-
35mΩ max
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Type:
-
Rocker Switch
-
Product name:
-
21*15 KCD1 Rocker switch
-
Fuction:
-
SPST ON-OFF-ON
-
Rating:
-
6A 250VAC/10A 125VAC
-
Actuator color:
-
Red, Orange, Green, Blue
-
Certificate:
-
CE, CQC
-
Standard:
-
IEC Standard
-
Contact Resistance:
-
35mΩ max

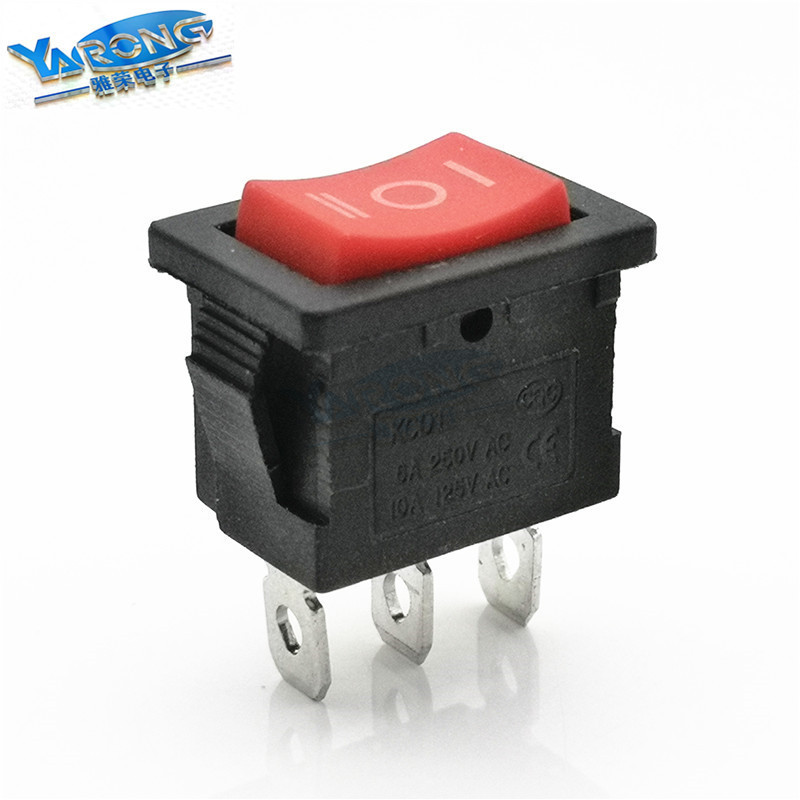

21*15 KCD1 Rocker switch
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
|
RATING: |
6A 250VAC;10A 125VAC;16A 12VDC |
|
MECHANICAL LIFE: |
>50000 CYCLES |
|
ELECTRICAL LIFE |
>10000 CYCLES |
|
CONTACT RESISTANCE |
< 50MΩ |
|
INSULATION RESISTANCE |
>1000MΩ |
|
WITHSTAND VOLTAGE |
>1500V/MINUTE |
|
AMBIENT TEMPERATURE |
-10°C~+85°C |
|
STORAGE TEMPERATURE |
-25°C~+85°C |
