- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1180*540mm
-
Panel Efficiency:
-
18.2%
-
Product name:
-

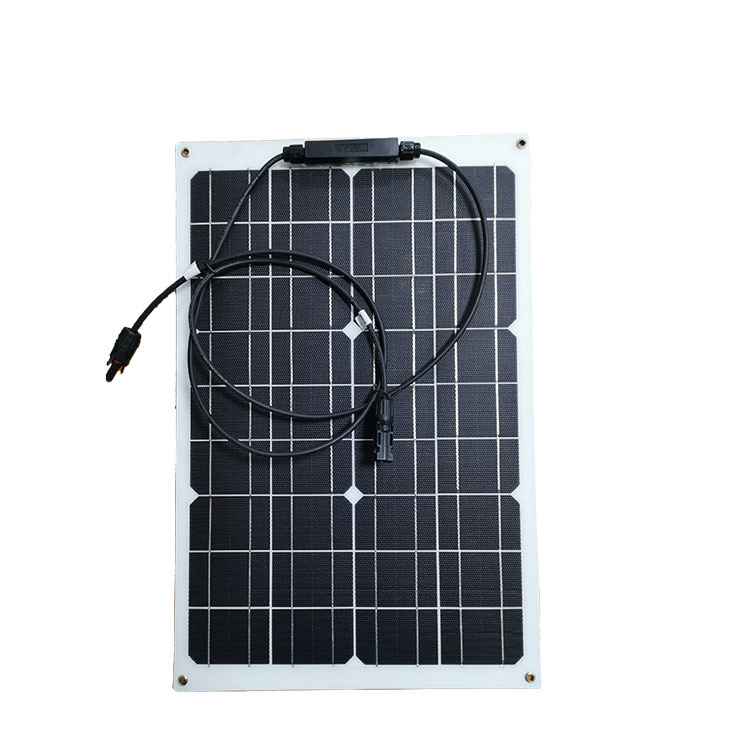

30w small flexible solar panel
-
Power:
-
30W
-
Maximum working voltage:
-
18V
-
Maximum working current:
-
1.67A
-
Weight:
-
1.0kg (2.20 lbs)
-
Open Circuit Voltage (V):
-
22.3V
-
Short Circuit Current (a):
-
1.8A
-
Panel size:
-
525*345*3mm
-
Material:
-
ETFE or PET (optional)
-
System voltage:
-
600V
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Brand Name:
-
FGET
-
Model Number:
-
30W-FG15
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1180*540mm
-
Panel Efficiency:
-
18.2%
-
Product name:
-
30w small flexible solar panel
-
Power:
-
30W
-
Maximum working voltage:
-
18V
-
Maximum working current:
-
1.67A
-
Weight:
-
1.0kg (2.20 lbs)
-
Open Circuit Voltage (V):
-
22.3V
-
Short Circuit Current (a):
-
1.8A
-
Panel size:
-
525*345*3mm
-
Material:
-
ETFE or PET (optional)
-
System voltage:
-
600V
Mono 85 150W 100 Triangular Charger 12V 1Kva 160W 130 60Watt 24 28W 30Watt Foldable Solar Panel 100W 120W Watt W
The flexible solar panels are constructed with highly efficient solar cells supported in a unique polymer that allows for flexibility and significant weight reduction. These panels have no aluminium or steel backing like other semi-flexible panels, which means they are extremely lightweight.
We manufacture each flexibale solar panel using a top-grade, lightweight polymer material, allowing for easy transport, installation, and flexibility up to 30 degrees. Each panel comes with MC4 male and female connectors that can connect easily to solar compatible devices.
Product Description
Features
Specification
|
Type
|
Mono
|
|
Power
|
30W
|
|
Size
|
525*345*3mm
|
|
Weight
|
1.0kg (2.20 lbs)
|
|
Effectiveness
|
18.2%
|
|
Maximum working voltage
|
18V
|
|
Maximum working current
|
1.67A
|
|
Open circuit voltage
|
22.3 V
|
|
Open circuit current
|
1.8A
|
|
System voltage
|
600 V
|
|
Flexible Solar Panel Date Sheet
|
|
|
|
|
|
|||||
|
Model
|
Power (w)
|
Voltage (v)
|
Material
|
Weight (kg)
|
Size (mm)
|
|||||
|
15W
|
18V
|
PET/ETFE
|
0.8kg (1.76 lbs)
|
380*280*3mm
|
||||||
|
20W
|
18V
|
PET/ETFE
|
1.0kg (2.20 lbs)
|
580*280*3mm
|
||||||
|
30W
|
18V
|
PET/ETFE
|
1.0kg (2.20 lbs)
|
525*345*3mm
|
||||||
|
50W
|
18V
|
PET/ETFE
|
1.4kg (3.08 lbs)
|
630*540*3mm
|
||||||
|
60W
|
18V
|
PET/ETFE
|
1.9kg (4.19 lbs)
|
1040*340*3mm
|
||||||
|
75W
|
18V
|
PET/ETFE
|
1.9kg (4.18 lbs)
|
830*515*3mm
|
||||||
|
80W
|
18V
|
PET/ETFE
|
2.2kg (4.85 lbs)
|
1000*515*3mm
|
||||||
|
90W
|
18V
|
PET/ETFE
|
2.5kg (5.51 lbs)
|
1050*540*3mm
|
||||||
|
100W
|
18V
|
PET/ETFE
|
2.8kg (6.17 lbs)
|
1180*540*3mm
|
||||||
|
120W
|
18V
|
PET/ETFE
|
3.0kg (6.61lbs)
|
1330*520*3mm
|
||||||
|
150W
|
18V
|
PET/ETFE
|
4.3kg (9.48 lbs)
|
1470*670*3mm
|
||||||
|
180W
|
18V
|
PET/ETFE
|
4.3kg (9.48 lbs)
|
1470*670*3mm
|
||||||
|
200W
|
36V
|
PET/ETFE
|
5.6kg (12.35 lbs)
|
1580*808*3mm
|
||||||
|
250W
|
36V
|
PET/ETFE
|
5.6kg (12.35 lbs)
|
1320*990*3mm
|
||||||
Details Images
Material
PET/ETFE
EVA
Solar Cell
TPT Anti-Corrosion Frame
EVA
Solar Cell
TPT Anti-Corrosion Frame
SUNPOWE Solar Cell
Efficiency 23%
Bend 180 degrees
Bend 180 degrees
Junction Box
Welding diodes
Waterproof
Waterproof
Stainless Ring
Anti-corrosion
Durable
Durable
Connector
Standard MC4
Maximum 10 pcs in series
Maximum 10 pcs in series
More Connector
Fast Charge USB
DC barrel 5.5*2.5/2.1mm, USA Plug
12V Clip
DC barrel 5.5*2.5/2.1mm, USA Plug
12V Clip
Recommend Products
Mono and Poly Panels
There are Mono and Poly solar panels, range from 5W to 410W for choose, It widely used for home solar energy systems and all kinds of solar projects.
Production Process
Cell sorting
Cell sorting and cutting
Aotomatic Stringing
Battery chip receiving area
Laying
Solar Panel Kanban Inspection
Solar panel EL test
Laminate solar panel
Fully automatic lamination of solar panels
Fitted Frame
Clearing and Label
Package
About us
Future Green Technology Co., Ltd is a comprehensive hi-tech enterprise of R&D, manufacturing and trade which is located in Guangzhou city, Guangdong Province, China. We have more than 10 professional engineers and technical persons and its technical indicators of various solar panels have reached or exceeded national standards by introducing a number of international or domestic key equipment and technologies. Our company’s products have achieved the certificates as ISO 9001:2015, CE, MSDS and TESTING REPORT. Production licenses including: solar panels, flexible solar panels, folding solar panels, solar batteries, lead acid batteries, AGM batteries, GEL batteries and UPS batteries.
With high quality of the products, we own a high reputation among customers. In philosophy of quality, reputation, honesty, mutual benefit, we will provide high-quality and efficient services no matter what size of the clients and how long we cooperate. Full of confidence and enthusiasm, we are willing to work with you to create a new brilliance.
With high quality of the products, we own a high reputation among customers. In philosophy of quality, reputation, honesty, mutual benefit, we will provide high-quality and efficient services no matter what size of the clients and how long we cooperate. Full of confidence and enthusiasm, we are willing to work with you to create a new brilliance.
We supply solar panels, panel solar, solar panels prices, solar panel system, flexible solar panel, solar energy, solar power, solar cell, agm battery, rechargeable batteries, 12v battery, and battery.
Certifications
FAQ
Q1: How to choose the right Panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.
Q4: How to get samples ?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.
Q4: How to get samples ?
A4: We provide free sample for most of products, and you just need to arrange the delivery things.
Q5: What is the warranty for solar panels?
A5: 25 years warranty on TYL Solar product.
Q6: How to solve the technical problem?
A6: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q5: What is the warranty for solar panels?
A5: 25 years warranty on TYL Solar product.
Q6: How to solve the technical problem?
A6: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q7: Are you
factory
?
A7: We are manufacturer in solar products area more than 10 years .
A7: We are manufacturer in solar products area more than 10 years .
