Quick Details
-
Material:
-
aluminum brushed
-
Suitable Size:
-
17 inch LCD screen
-
Panel Thickness:
-
5mm
-
Panel Size:
-
540*160*5mm
-
Box Size:
-
520*138*625mm
-
LCD mounting space:
-
405*75mm
-
Control system:
-
Touch Switch/Remote Control/RS232 control
-
Color:
-
silver/black/gold
-
Application:
-
conference system
Quick Details
-
Type:
-
Audio Conference System, Network Conference System, Video Conference System, Conference System
-
Function:
-
Presentation
-
Style:
-
lifting LCD monitor with mic
-
Material:
-
aluminum brushed
-
Suitable Size:
-
17 inch LCD screen
-
Panel Thickness:
-
5mm
-
Panel Size:
-
540*160*5mm
-
Box Size:
-
520*138*625mm
-
LCD mounting space:
-
405*75mm
-
Control system:
-
Touch Switch/Remote Control/RS232 control
-
Color:
-
silver/black/gold
-
Application:
-
conference system

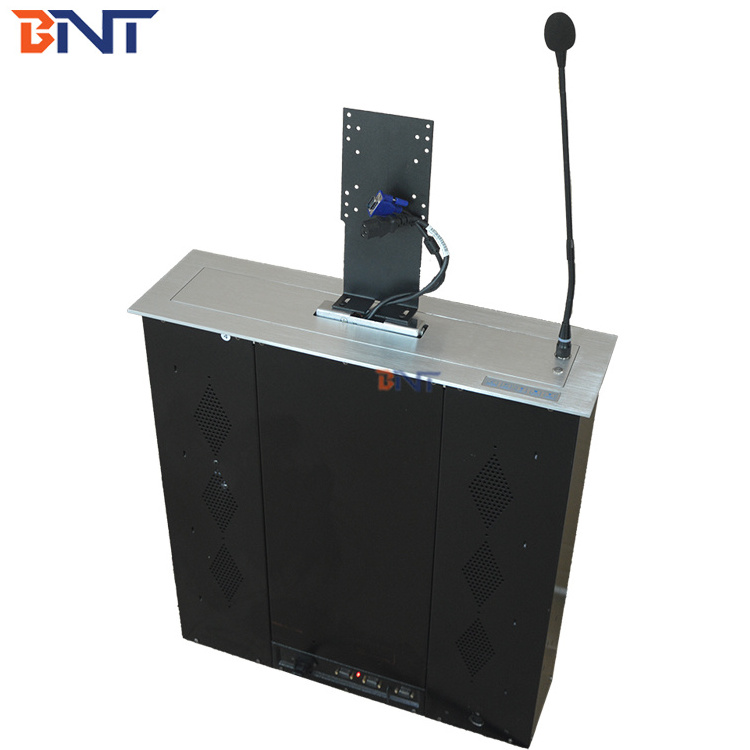

Aluminum Motorized Microphone Lift for Voting Conference System
Introduction:
Microphone Lift is advance hiding equipment designed for audio video system in office furniture. The microphione would be rising down into the desk and hidden under the office table when unused; Conference Microphone inside the motorized microphone lift would be rising up from table automatically by touch switch or remote control and present the workable screen on the desktop if used.
Feature:
1, The panel of microphone lift is aluminum alloy, with aluminum wire drawing process on surface.
2, The microphone lift mechansim adopts synchronous orbit lifting principle.
3, Desktop microphone lift works smoothly and quietly. Low noise which less than 30db.
4, Microphone lift provides protecting function of microphone by cutting the electricity off automatically.
5, microphone lifting mechansim would be adjustable elevation angle of LCD monitor for protecting your eyes from the direct light.
5, Microphone Lifting system is controlled by two big AC motors. One controls opening and closing the panel, one controls lifting the microphone up and down.
6, Control system: Touch Switch on panel, RF remote control, RS232 AND RS485 central control.
Characteristic
1, high quality aluminum alloy finishing with motors
2, A=A strong carton with foam cushion and waterproof film
3, white/black/gold color is available for color selection
4, Power plug and voltage could be changed accordingly.
5, OEM with logo on product and packing is available
6, Customized made is available
Application:
Microphone lift is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.
Parameter:
| Item Series | LCD Monitor Lift |
| Item Model | BLL-17 |
| Style | LCD lift without monitor |
| Products consitute | LCD monitor lift+ Remote control |
| Material | Aluminum alloy draw bench panel |
| Panel size | 540*160*5mm |
| Box size | 520*138*625mm |
| Panel thickness | 5mm |
| Lift mount size | 405*75mm |
| Packing size | 60*27*78mm |
| Voltage | 110V,220V,240V |
| Power | 20~25W |
| Tilting angle | 0~15° |
| Single trip time | 30s |
| Color | Silver /Black matt/ Gold |
| Remote distance | 10m |
| Control Way | Touch key-press/ Remote control/RS485 central control |
| Running Way | Tubu motor with rack driving |
| Protection way | Cable Manager/Protection finger from nipping |
| Power Protection way | Monitor turn off automatically |
Professional Service:
1, Any of inquiries will be response within 48 hours
2, Sizable accessories of products for replacement
3, Sample is available.
Warranty:
Study the user’s manual carefully before installation.
All of our products provide 12 months warranty! The warranty period starts from the goods receipt by initial consignee.
Payment:
T/T, L/C, Western Union, Money Gram, Crash is acceptable
