Quick Details
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
5000*4000*3000
-
Power (kW):
-
21
-
Weight (KG):
-
3500 KG
-
Item:
-
polystyrene foam pre-expander filling equipment
-
Model:
-
YG-12
-
Power:
-
23kw
-
Pouring flow:
-
150-400g/s
-
Injection time accuracy:
-
0.1s-99.99s
-
Host drive mode:
-
Explosion-proof motor + magnetic coupling + polyurethane special pump
-
Raw material injection pressure:
-
8-15mpa
-
Temperature control accuracy:
-
±2°
-
Application:
-
Vehicle seats, motorcycle seats and so on
-
Flowmeter:
-
Optional
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUGONG
-
Machine Type:
-
pu foaming machine
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
5000*4000*3000
-
Power (kW):
-
21
-
Weight (KG):
-
3500 KG
-
Item:
-
polystyrene foam pre-expander filling equipment
-
Model:
-
YG-12
-
Power:
-
23kw
-
Pouring flow:
-
150-400g/s
-
Injection time accuracy:
-
0.1s-99.99s
-
Host drive mode:
-
Explosion-proof motor + magnetic coupling + polyurethane special pump
-
Raw material injection pressure:
-
8-15mpa
-
Temperature control accuracy:
-
±2°
-
Application:
-
Vehicle seats, motorcycle seats and so on
-
Flowmeter:
-
Optional
continuous styrofoam melting expanding machine polystyrene foam pre-expander filling equipment

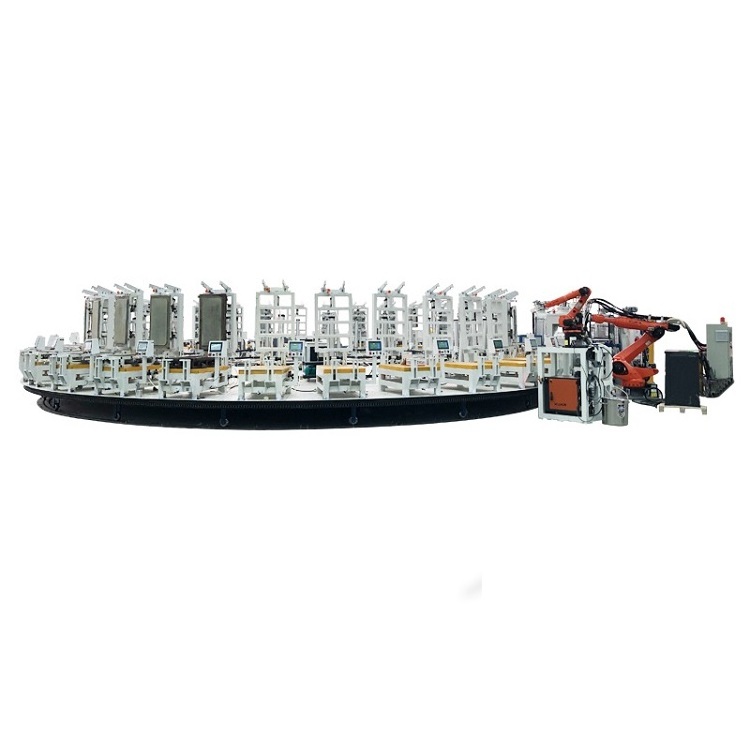

Disc pu foam production line is a multi-purpose mold transfer line, suitable for mass production of multiple varieties. Such as car, motorcycle seat, car interior parts PU foam. The diameter of the turntable ranges from 2 meters to 12 meters according to customer needs. The turntable is driven by a reducer, and the speed is steplessly adjusted by a frequency converter. A hydraulic or pneumatic mold base is placed on the turntable to automatically open and close the mold. Use robot intelligence or manual pouring. The structure is simple, the production efficiency is high, the maintenance is convenient, and it is widely used.
Product Description
1. Firm structure: sturdy mechanical structure, stable operation, silent design, long service life and labor saving.
2. Adjust the spacing: The diameter of the disc production line is determined according to the customer's workshop spacing and the number of molds.
3. Follow-up device: The turntable is equipped with water, electricity and air follow-up devices, which can continuously supply the water and electricity needed by the mold.
4. Positioning start and stop: Turntable power and electronic control system can freely control the speed of the turntable and fixed-point positioning start and stop.
5. Automatic docking: The electric control system of the turntable can dock with external equipment (foaming machines, robots, etc.) to achieve automation.
Specification
|
Model
|
Disc Dia.
|
Mold Station QTY
|
Installation Size
|
Total Power
|
|
YGM-7
|
7m
|
26
|
7*7*0.4m
|
21kw
|
|
YGM-8
|
8m
|
30
|
8*8*0.4m
|
21kw
|
|
YGM-9
|
9m
|
35
|
9*9*0.4m
|
22kw
|
|
YGM-10
|
10m
|
40
|
10*10*0.4m
|
22kw
|
|
YGM-12
|
12m
|
45
|
10*10*0.4m
|
23kw
|
Application and foaming molds
