Quick Details
-
Warranty(Year):
-
1-Year
-
Product Weight（kg）:
-
16
-
Input Voltage(V):
-
100-240V -50/60Hz
-
Working Temperature(℃):
-
-10 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Anmingli
-
Emitting Color:
-
RGB
-
Source:
-
512Pcsx1.5W RGB Leds + 512Pcs*0.5WWhite Leds
-
Pixel Patterns:
-
Pre-programmed dynamic and static patterns
-
Protocols:
-
DMX512, RDM,Art-Net, Kling-Net
-
DMX Channels:
-
8CH/12CH/73CH/132CH
-
Display:
-
Blue TFT touch display
-
Firmware Upgrade:
-
Yes, via RJ45 Cable only
-
BeamAngle:
-
without lens 120°, with lens 60 °
-
Special Features:
-
Multi-layer pixel FX control
-
Auto Mode:
-
Built-in programs with execution speed adjustment
-
Power Connection:
-
Seetronic Powerkon True IP65 in/out
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Type:
-
LED Matrix Light
-
Application:
-
Garden
-
Warranty(Year):
-
1-Year
-
Product Weight（kg）:
-
16
-
Input Voltage(V):
-
100-240V -50/60Hz
-
Working Temperature(℃):
-
-10 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Anmingli
-
Emitting Color:
-
RGB
-
Source:
-
512Pcsx1.5W RGB Leds + 512Pcs*0.5WWhite Leds
-
Pixel Patterns:
-
Pre-programmed dynamic and static patterns
-
Protocols:
-
DMX512, RDM,Art-Net, Kling-Net
-
DMX Channels:
-
8CH/12CH/73CH/132CH
-
Display:
-
Blue TFT touch display
-
Firmware Upgrade:
-
Yes, via RJ45 Cable only
-
BeamAngle:
-
without lens 120°, with lens 60 °
-
Special Features:
-
Multi-layer pixel FX control
-
Auto Mode:
-
Built-in programs with execution speed adjustment
-
Power Connection:
-
Seetronic Powerkon True IP65 in/out
Product Description

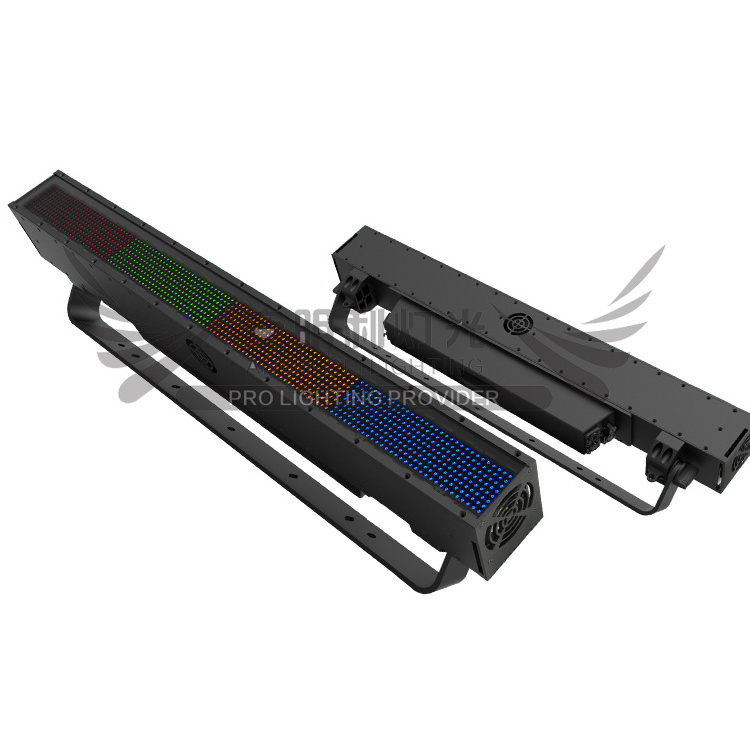

AL-005IP
Waterproof LED Pixel Mapping Strobe Bar DJ Stage Equipment
ELECTRICAL
• Power Supply: 100-240V – 50/60Hz
• Power Consumption (at 230V):Strobe: 1200 W Static:950 W
• Power Consumption (at 120V):Strobe: 1200 W Static: 850 W
• Output (at 230V):3 units on a single power line
• Output (at 120V):2 units on a single power line
|
SPECIFICATIONS
|
|
|
|
|
||||
|
Source
|
|
512Pcs*1.5W RGB Leds + 512Pcs*0.5WWhite Leds
|
|
|
||||
|
CT:W
|
|
6250 K
|
|
|
||||
|
|
|
Strobe without lens (peak) 136’000 lm; Static ON without lens 28’834; Strobe with lens (peak) 46’200; Static ON with lens 27’188
lm |
|
|
||||
|
Source Life Expectancy
|
|
>30.000 h
|
|
|
||||
|
• Lux:(120°) 1139 lux, (60°) 4152 lux @3m Full
• Lux:(120°) 410.1 lux, (60°) 1495 lux @5m Full
|
|
|
|
|
||||
|
BeamAngle:without lens 120°, with lens 60 °
|
|
|
|
|
||||
|
CONTROL
|
|
|
|
|
||||
|
Protocols
|
|
DMX512, RDM,Art-Net, Kling-Net
|
|
|
||||
|
DMX Channels
|
|
8CH/12CH/73CH/132CH
|
|
|
||||
|
RDM
|
|
RDM ready for fixture remote monitor and settings
|
|
|
||||
|
Display
|
|
Blue TFT touch display
|
|
|
||||
|
Firmware Upgrade
|
|
Yes, via RJ45 Cable only
|
|
|
||||
Certifications
