MF-24 3" High Compressed Air Filter For Gas Pump Use

FOB Reference Price: Get Latest Price

≥2 Pieces

US $20

≥10 Pieces

US $19

≥50 Pieces

US $16

≥100 Pieces

US $12

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: OEM

Weight:: 0.5 kg

Item:: Air Filter for Side Channel Blowers

Shape:: Cylindrical

Thread type:: Inner thread

Installation:: Air inlet tube

Port size:: G3

Rated airflow:: 900 L/min

Filter media:: Air

Temperature range:: -15 ~90 Celsius

Function:: Dust Filtration

Certification:: CE

Quick Details

Applicable Industries:: Vacuum System

Efficiency:: 99%

Porosity:: 100 mesh/15 um

Place of Origin:: Guangdong, China

Brand Name:: OEM

Weight:: 0.5 kg

Item:: Air Filter for Side Channel Blowers

Shape:: Cylindrical

Thread type:: Inner thread

Installation:: Air inlet tube

Port size:: G3

Rated airflow:: 900 L/min

Filter media:: Air

Temperature range:: -15 ~90 Celsius

Function:: Dust Filtration

Certification:: CE

Product Description

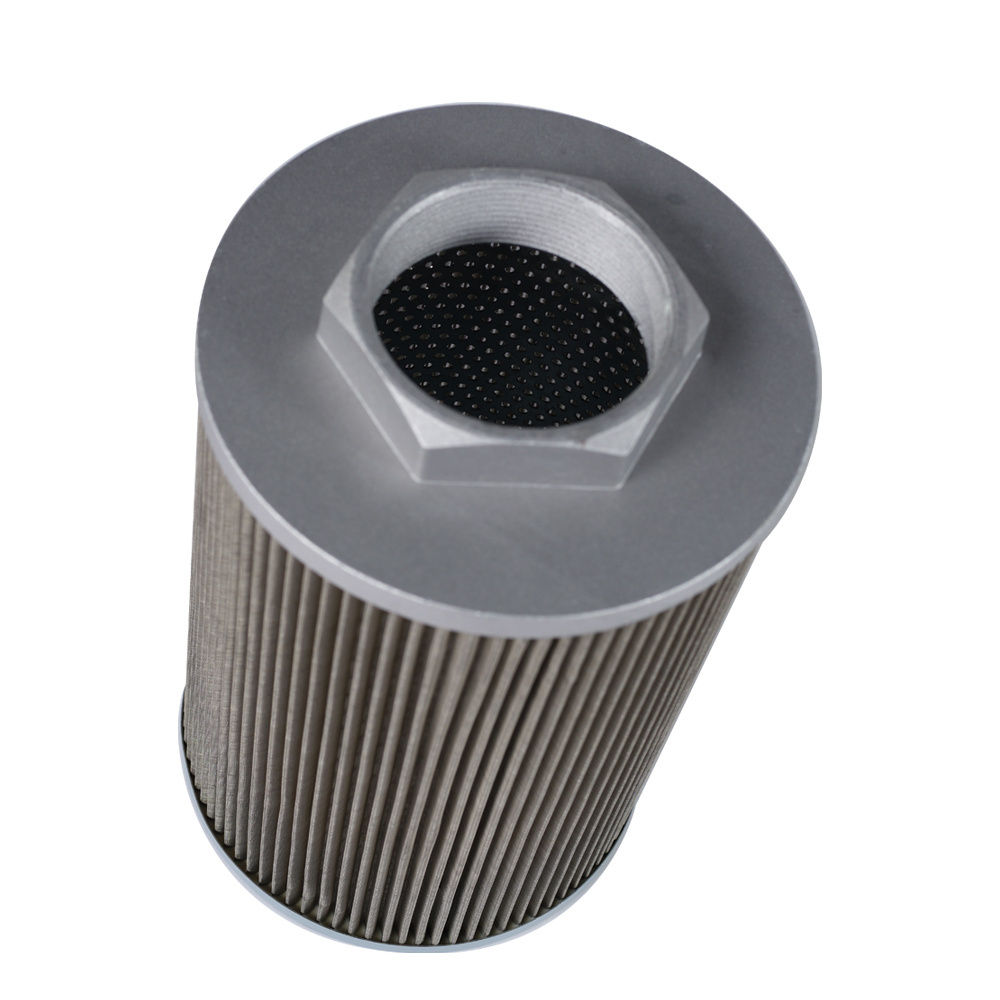

Air filter for side channel blowers

The MF filter is used for the inlet of side channel blowers. When the blower is only used for blowing, please install this device to ensure the safety of the blower. The filter consists of a cylindrical stainless steel mesh with high air permeability and does not affect the airflow. The impeller of blower has a high rotation speed when operating. To prevent small objects such as particles from entering the blower due to the high suction, which affects the life of the blower.

You're recommended to install an air filter on the blower.

Features:

1. E asy to install and remove

2. E asy to clean, and maintenance-free

3. 100 mesh f iltration accuracy

4. Aluminum alloy interface / stainless steel mesh / iron core

5. The air flow capabilities range from 110 to 1000 L/min

Model Number	PT	D(mm)	L(mm)	H(mm)	B(mm)	Filter fineness(mesh)	Airflow(L/min)	Weight(kg)
MF-08	1''	58	170	155	42	100	110	0.2
MF-10	1 1/4''	71	186	170	54	100	210	0.35
MF-12	1 1/2''	85	196	182	65	100	285	0.49
MF-16	2''	103	215	202	75	100	395	0.65
MF-20	2 1/2''	148	274	252	97	100	750	1.2
MF-32	4''	208	380	357	142	100	1000	2.45
