Quick Details
-
Application:
-
to support floor formwok
-
Design Style:
-
construction
-
Type:
-
steel prop, Spanish Type, Italian Type, Middle east Type
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WUFANG
-
Product name:
-
Steel Prop
-
Material:
-
Q235 Steel
-
Surface treatment:
-
Painted, Powder Coated, Pre-galvanized, Electro Galvanized, HDG
-
Base Plate:
-
Square base plate, flower base plate, U-head, etc
-
Tube Diameter:
-
40/48*1.6-2.5mm, 48*56*1.6-2.5mm, 48/60*1.6-4.0mm
-
Adjustable Length:
-
1.7-3M, 2-3.6M, 2.2-4M, 3-5M, etc
-
Packing:
-
loose packing, steel strip or pallet
-
MOQ:
-
1000pcs
-
Bearing Capacity:
-
10~30KN
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, NONE
-
Project Solution Capability:
-
graphic design, Others
-
Application:
-
to support floor formwok
-
Design Style:
-
construction
-
Type:
-
steel prop, Spanish Type, Italian Type, Middle east Type
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WUFANG
-
Product name:
-
Steel Prop
-
Material:
-
Q235 Steel
-
Surface treatment:
-
Painted, Powder Coated, Pre-galvanized, Electro Galvanized, HDG
-
Base Plate:
-
Square base plate, flower base plate, U-head, etc
-
Tube Diameter:
-
40/48*1.6-2.5mm, 48*56*1.6-2.5mm, 48/60*1.6-4.0mm
-
Adjustable Length:
-
1.7-3M, 2-3.6M, 2.2-4M, 3-5M, etc
-
Packing:
-
loose packing, steel strip or pallet
-
MOQ:
-
1000pcs
-
Bearing Capacity:
-
10~30KN
Product Specification

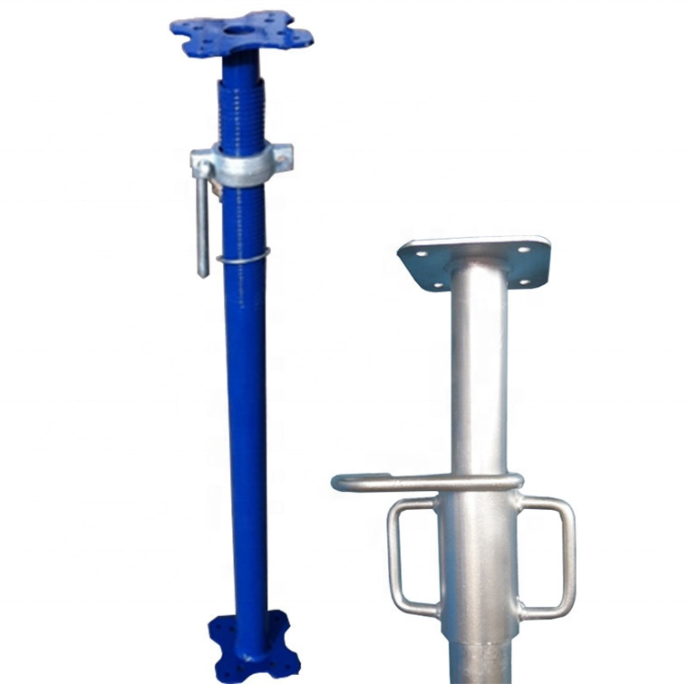

Adjustable shoring props is applied to concrete formwork. It consists of the inner tube, outer tube, and welding plate on end. The outer tube has a screwed pipe on the head so that the props can be adjusted in length.
|
Light Duty Cup Nut Steel Prop
|
|
|
|
|
||||
|
Adjustable Height
|
Outer Tube
|
Inner Tube
|
Top & Base Plate
|
Unit Weight
|
||||
|
1700 - 3000 mm
|
48 x 1.8 mm
|
40 x 1.8 mm
|
120 x 120 x 4 mm
|
7.5 kg/pc
|
||||
|
2000 - 3600 mm
|
48 x 1.8 mm
|
40 x 1.8 mm
|
120 x 120 x 4 mm
|
8.5 kg/pc
|
||||
|
2200 - 4000 mm
|
48 x 1.8 mm
|
40 x 1.8 mm
|
120 x 120 x 4 mm
|
9.4 kg/pc
|
||||
|
Middle Duty Cup Nut Steel Prop
|
|
|
|
|
||||
|
Adjustable Height
|
Outer Tube
|
Inner Tube
|
Top & Base Plate
|
Unit Weight
|
||||
|
1700 - 3000 mm
|
56 x 1.8 mm
|
48 x 1.8 mm
|
120 x 120 x 4 mm
|
8.8 kg/pc
|
||||
|
2000 - 3600 mm
|
56 x 1.8 mm
|
48 x 1.8 mm
|
120 x 120 x 4 mm
|
10.3 kg/pc
|
||||
|
2200 - 4000 mm
|
56 x 1.8 mm
|
48 x 1.8 mm
|
120 x 120 x 4 mm
|
11.0 kg/pc
|
||||
|
Heavy Duty Cast Nut Steel Prop
|
|
|
|
|
||||
|
Adjustable Height
|
Outer Tube
|
Inner Tube
|
Top & Base Plate
|
Unit Weight
|
||||
|
1700 - 3000 mm
|
60 x 1.8 mm
|
48 x 1.8 mm
|
120 x 120 x 4 mm
|
8.5 kg/pc
|
||||
|
2000 - 3600 mm
|
60 x 1.8 mm
|
48 x 1.8 mm
|
120 x 120 x 4 mm
|
9.7 kg/pc
|
||||
|
2200 - 4000 mm
|
60 x 1.8 mm
|
48 x 1.8 mm
|
120 x 120 x 4 mm
|
10.7 kg/pc
|
||||
Product Advantages
Adjustable steel props provide the most economic method for supporting to all kinds of shuttering work and formwork. Steel Prop is a labor and time saving device to support shuttering and formwork.
*
D
urable, reusable and safety:
Steel props
are of
large bearing capacity
and can be used repeated times
* Can be extended to a desired length: S teel p rops are adjustable to various height requirements.
* Improve working efficiency and save labor cost: Quick and east to erect even by unskilled labors
* Large and safety operating area
* Compact for economical transportation and storage
* Can be extended to a desired length: S teel p rops are adjustable to various height requirements.
* Improve working efficiency and save labor cost: Quick and east to erect even by unskilled labors
* Large and safety operating area
* Compact for economical transportation and storage
Packing & Loading
Applications
♦steel Props are mainly used for supporting slab formwork.
♦Numerous practical features ensure fast and safe handling.
