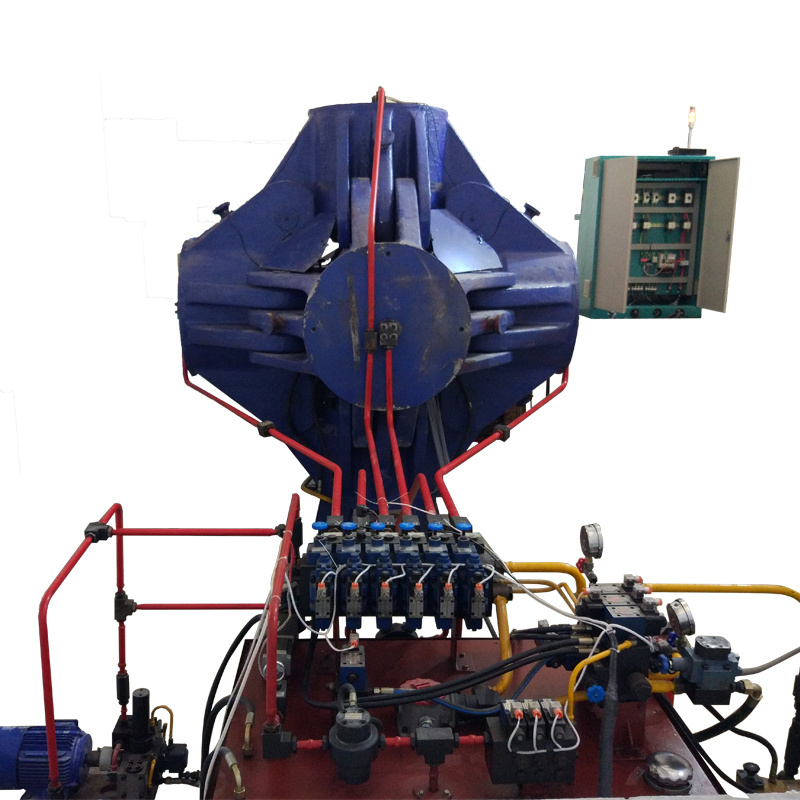

HPHT hydraulic cubic press QMYG850 Diamond Making Machine

HPHT hydraulic cubic press QMYG850 Diamond Making Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $200000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: HPHT hydarulic cubic press

Application:: Diamond and superhard materials synthetic

Model:: QMYG850

Diameter of cylinder:: 850mm

Design pressure:: 120MPa

Opening height:: 1080mm

Core for diamond:: 53mm

Weight:: 86.5 ton

Size:: 3312mm*3312mm*3862mm

Certification:: ISO CE

Quick Details

Place of Origin:: Henan, China

Brand Name:: Qiming

Weight (KG):: 82500

Product name:: HPHT hydarulic cubic press

Application:: Diamond and superhard materials synthetic

Model:: QMYG850

Diameter of cylinder:: 850mm

Design pressure:: 120MPa

Opening height:: 1080mm

Core for diamond:: 53mm

Weight:: 86.5 ton

Size:: 3312mm*3312mm*3862mm

Certification:: ISO CE

Product Description

Cubic press is a kind of superhigh pressure equipment for synthesis superhard materials; it has been widely used in Chinese superhard material industry. Qiming design cubic press is well known as the safest, most stable equipment with most convenient operation & maintenance, and highest economic profile. Cubic press is essential equipment to produce synthetic diamond, CBN, PDC, PCD, and PCBN.

Model	QMYG850
Diameter of cylinder	850(mm)
Working pressure	95(MPa)
Distance of travel	91(mm)
Opening height	1080(mm)
Overall dimension	3312x3312x3862

Detailed Images

All the main units are precision machined by types CNC vertical lathes and miling machines in our factory . And Qiming factory has advanced heat treatment workshop to heat treating every main units.

Company Introduction

Luoyang Qiming Superhard Material Co., Ltd. was founded in 1999, which used to be a subsidiary company of CRRC. Qiming is one of the earliest enterprises engaged in the production of synthetic diamond; our main business is research, produce & sale synthetic diamond and equipment. About 20 years’ synthetic diamond producing experience in Luoyang-cradle of heavy industry, the main business of Qiming was turned to develop and manufacture specialized HPHT equipment in 2008. At present, the most advanced cubic press series from Qiming have been widely used and gained solid reputation by massive loyal clients from all over the world. With the rapid development, we have expanded our industrial cluster area to 100,000 m², which improved the production of HPHT cubic press to over 500 sets yearly. We will open up the future and create brilliant with a new look.

Our Official website

http://www.qmdiamond.com/

After Sales Service

After sales Service & Warranty

After sales service: Customized factory layout design; optimized equipment configuration; p rofessional on-site installation and regular operation training.

Warranty: All main units has 1 year warranty, which including: hinge beam, working cylinder, piston, limited ring, hinge pin, sealing cover.

Production Range

PDC

The full name of PDC is "Polycrystalline diamond composite", which apply to the head of drill and superhard cutting tool.

PCBN

The full name of PCBN is "Polycrastalline Cubic Boron Nitride". Normally it is apply to superhard cutting tool and punching hole drill etc.

Diamond

There are more and more jewerly level synthetic diamonds produced now. With the synthetic technique progress the quality of diamond is getting better and better.
