Quick Details
-
Model Number:
-
BRI-P226
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BRILLIANT
-
Theory:
-
PIR
-
Output:
-
0-10V dimming signal
-
Power Source:
-
220-240V/AC
-
Power Frequency:
-
50Hz
-
Detection Distance:
-
6m Max (<24 C)
-
Detection Angle:
-
360°
-
Certificate:
-
CE
-
Mounting height:
-
2.2-4m
-
Ambient Light:
-
3-2000LUX (adjustable)
-
Time Delay:
-
10s~7min(adjustabe)
-
Warranty:
-
5 Years
Quick Details
-
Use:
-
For commercial lighting automation
-
Mounting Type:
-
Indoor and outdoor installations
-
Description:
-
CONTROL LIGHT
-
Model Number:
-
BRI-P226
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BRILLIANT
-
Theory:
-
PIR
-
Output:
-
0-10V dimming signal
-
Power Source:
-
220-240V/AC
-
Power Frequency:
-
50Hz
-
Detection Distance:
-
6m Max (<24 C)
-
Detection Angle:
-
360°
-
Certificate:
-
CE
-
Mounting height:
-
2.2-4m
-
Ambient Light:
-
3-2000LUX (adjustable)
-
Time Delay:
-
10s~7min(adjustabe)
-
Warranty:
-
5 Years
Specifications
|
Power Sourcing
|
|
220V/AC ~ 240V/AC
|
|
|
|||
|
Power Frequency
|
|
50
|
|
|
|||
|
Ambient Light
|
|
3-2000LUX(adjustable)
|
|
|
|||
|
Detection Distance
|
|
6m max
|
|
|
|||
|
Rated Load
|
|
1200W Max.Tungsten
300W Max. Frucrescent
|
|
|
|||
|
Time Delay
|
|
min: 10sec ± 3 sec, max: 7 min ± 2 min (adjustable)
|
|
|
|||
|
Detection Angle
|
|
360°
|
|
|
|||
|
Working Temperature
|
|
-10℃~+40℃
|
|
|
|||
|
Relative Humidity
|
|
< 93% RH
|
|
|
|||
|
Installation Height
|
|
2.5m to 3.5m
|
|
|
|||
|
Power Consumption
|
|
0.45W (static 0.1W)
|
|
|
|||
|
Detection Motion Speed
|
|
0.6 to 1.5m / s
|
|
|
|||
Products Description

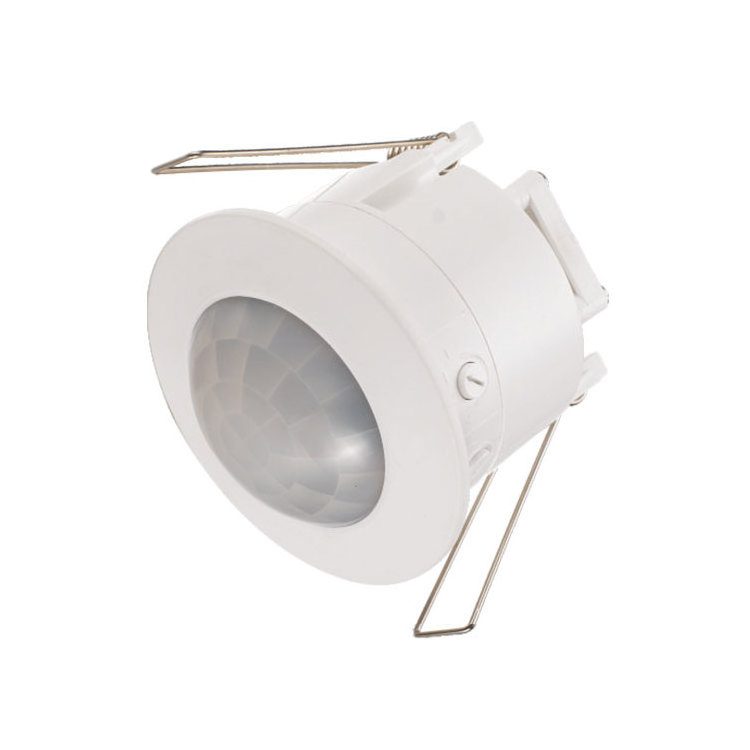

The motion detector adopts good sensitivity detector, integrated circuit. It gathers automatism, convenient safe, saving-energy and practical functions. It utilizes the infrared energy from human as a control signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.
Wiring
Functions
