Quick Details
-
Production Capacity:
-
100%
-
Power:
-
3.0KW
-
Dimension(L*W*H):
-
1150X1100X1300mm
-
Application:
-
Aluminium Window Fabrication
-
Power supply:
-
380v, 50Hz
-
Input power:
-
3.0kw
-
Corner combining pressure:
-
26-41.6KN
-
Rated pressure:
-
20Mpa
-
Capability of oil box:
-
60L
-
Profile width:
-
90mm
-
Casing movement journey:
-
95mm
-
OVERALL DIMENSION:
-
1150x1100x1300mm
Quick Details
-
Brand Name:
-
MINGMEI
-
Voltage:
-
AC 380V, 50 Hz
-
Weight:
-
550 kg, 550kgs
-
Production Capacity:
-
100%
-
Power:
-
3.0KW
-
Dimension(L*W*H):
-
1150X1100X1300mm
-
Application:
-
Aluminium Window Fabrication
-
Power supply:
-
380v, 50Hz
-
Input power:
-
3.0kw
-
Corner combining pressure:
-
26-41.6KN
-
Rated pressure:
-
20Mpa
-
Capability of oil box:
-
60L
-
Profile width:
-
90mm
-
Casing movement journey:
-
95mm
-
OVERALL DIMENSION:
-
1150x1100x1300mm

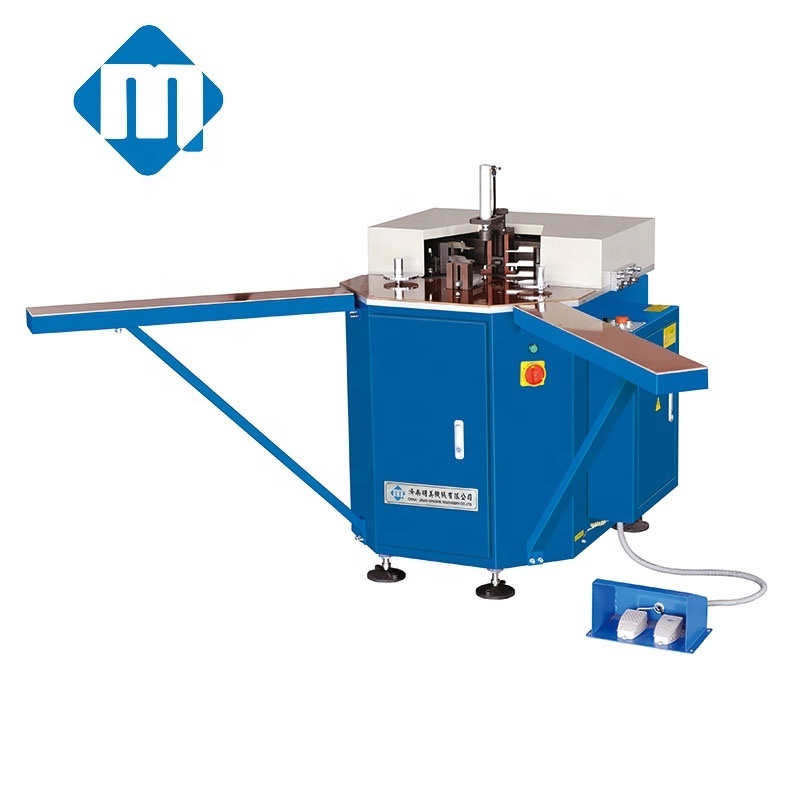

Aluminum windows corner combining machine/aluminum profile combining machine
1). Strengthened machine structure and rack to make it work more stable and low malfunctions.
2). Auto up-down inner localization to make work-piece clamping convenient.
3). Special hydraulic station with big power and big crimping power, that can process profile with big cross-section and big thickness.
4). Special high speed hydraulic system to supply fast crimping and high efficiency.
Technical Parameters
|
Brand Name |
Mingmei |
|
Model |
LMB-120B |
|
Power supply |
380V 50Hz |
|
Input power |
3.0kw |
|
Corner combining pressure |
26-41.6KN |
|
Rated pressure |
20Mpa |
|
Capability of oil box |
60L |
|
Profile width |
90mm |
|
Casing movement journey |
95mm |
|
Over all dimension: (L × W ×H) |
1150*1100*1300mm |
|
Weight: |
550Kg |
