Quick Details
-
Max. Lifting Height:
-
6m
-
Span:
-
5m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dejun
-
Weight (KG):
-
500 kg
-
Product name:
-
swing arm wall mounted jib crane with electric hoist
-
Type:
-
Standing BX
-
Lifting mechanism:
-
Elctrical Hoist
-
Control method:
-
Ground
-
Color:
-
Customer's Requirements
-
Crane feature:
-
swing arm wall mounted jib crane
-
Power Source:
-
3P 220--480V 50/60HZ
-
Rotation angle:
-
180 /270 Customized
-
Working Duty:
-
A3
-
Usage:
-
Workshop Workstation Construction Application
Quick Details
-
Application:
-
workshop, yard, warehouse
-
Rated Loading Capacity:
-
1 ton
-
Rated Lifting Moment:
-
10kn
-
Max. Lifting Height:
-
6m
-
Span:
-
5m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dejun
-
Weight (KG):
-
500 kg
-
Product name:
-
swing arm wall mounted jib crane with electric hoist
-
Type:
-
Standing BX
-
Lifting mechanism:
-
Elctrical Hoist
-
Control method:
-
Ground
-
Color:
-
Customer's Requirements
-
Crane feature:
-
swing arm wall mounted jib crane
-
Power Source:
-
3P 220--480V 50/60HZ
-
Rotation angle:
-
180 /270 Customized
-
Working Duty:
-
A3
-
Usage:
-
Workshop Workstation Construction Application

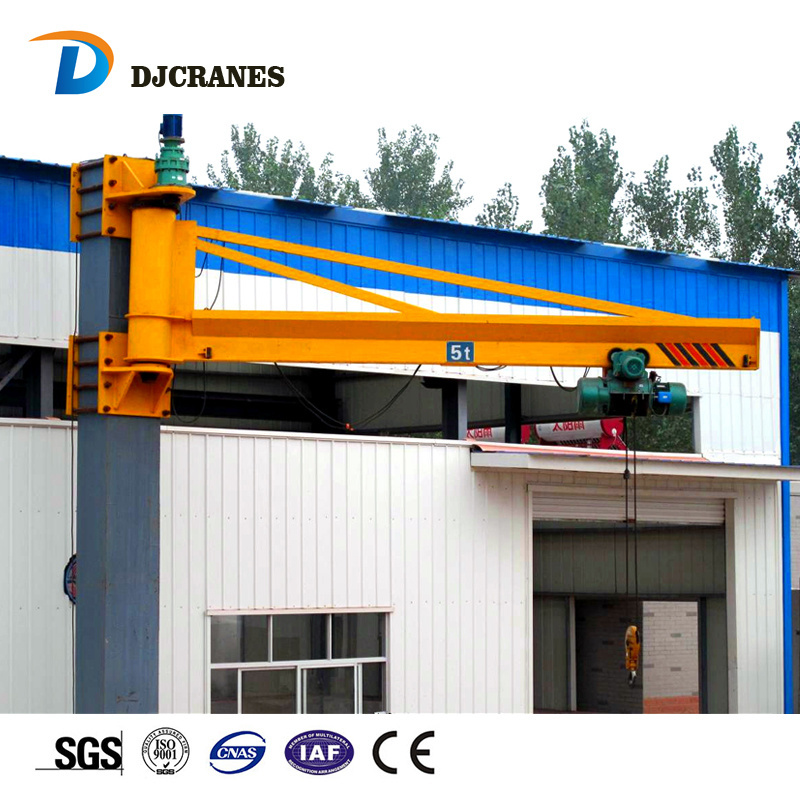

BX type 1 ton swing arm wall mounted jib crane with electric hoist
Swing Arm Wall Mounted Jib Crane Introduction
BX type wall mounted jib crane can be a tie-rod jib crane, which has a tie-rod mounted to the structure of your building, without taking any of your square feet of your plant. The wall mounted jib crane is the most economical crane for material handling. The lifting capacity of the wall mounted jib crane is 0.25 to 1 ton and the working class is A3.
Components of swing arm wall mounted jib crane
BX type wall mounted jib crane is mainly made of supporting column, jib device, and electric hoist, etc.
Application of swing arm wall mounted jib crane
BX type wall mounted jib crane is usually applicable to short distance, frequent and intensive material handling operations, in the places, such as, workshops, warehouses, docks, storage, ports, and assembly line, etc.
Advantages of swing arm wall mounted jib crane
1. Energy saving and labor saving
2. High performance and efficiency, lifting heavy weights effortlessly
3. Less space occupation
4. Easy operation and low maintenance
5. Durable and long serving life
BX type 1 ton swing arm wall mounted jib crane with electric hoist' s main parameters in follow:
| BX type 1 ton swing arm wall mounted jib crane with electric hoist | ||||
| Lifting height | h(m) | 5 | 5.5 | 6 |
| Effective radius | R(m) | 4 | 5 | 5.5 |
| Lifting speed | m/min | 8 | 8 | 8 |
| Travelling speed | m/min | 20 | 20 | 20 |
| Rotating speed | ° | arbitrarily | arbitrarily | arbitrarily |
| Overall height | H(m) | 2.56 | 2.56 | 2.56 |
| Overall length | L(m) | 4.525 | 5.025 | 5.525 |
| Total weight | kg | 768 | 782 | 810 |
