- Product Details
- {{item.text}}
Quick Details
-
Car Make:
-
automotive
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JL
-
Model Number:
-
1/8" hose
-
Warranty:
-
5 Years
-
material:
-
EPDM, PVA, low carbon steel
-
MOQ:
-
1000pcs
-
Work temperature:
-
-55℃ to 125℃
-
salt spray:
-
ove 80hours
-
burst pressure:
-
over 60Mpa
-
whip:
-
over 50hours
-
tensile:
-
over 2300N
-
xpansion:
-
Low volumetric expansion: 0.45ml/m under 6.9Mpa
-
brake fluid:
-
Brake fluid: DOT3, DOT4
-
quality:
-
Guaranteed: 100000kms or 5 years
Quick Details
-
OE NO.:
-
OEM No.
-
Usage:
-
OEM & Aftermarket
-
Size:
-
hose 3.2x10.5mm
-
Car Make:
-
automotive
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JL
-
Model Number:
-
1/8" hose
-
Warranty:
-
5 Years
-
material:
-
EPDM, PVA, low carbon steel
-
MOQ:
-
1000pcs
-
Work temperature:
-
-55℃ to 125℃
-
salt spray:
-
ove 80hours
-
burst pressure:
-
over 60Mpa
-
whip:
-
over 50hours
-
tensile:
-
over 2300N
-
xpansion:
-
Low volumetric expansion: 0.45ml/m under 6.9Mpa
-
brake fluid:
-
Brake fluid: DOT3, DOT4
-
quality:
-
Guaranteed: 100000kms or 5 years

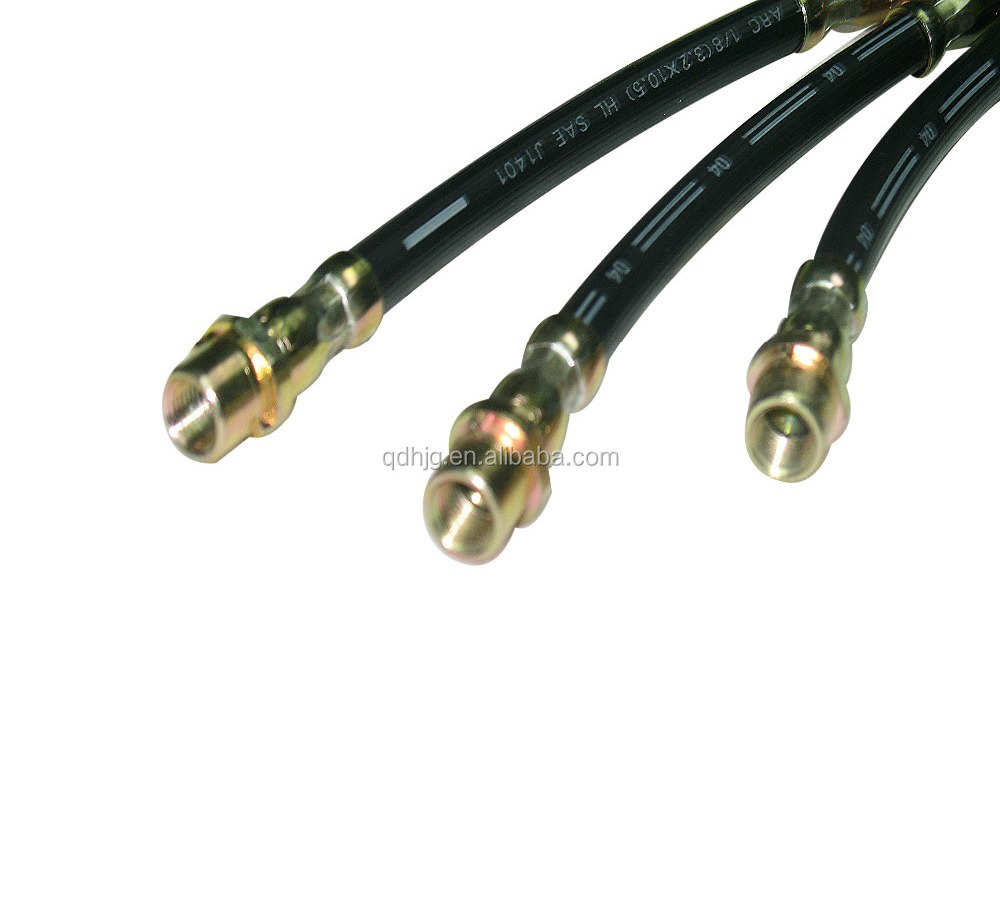

Hydraulic brake hose assembly
U sed for OEM and aftermarket for any vehicles; Designing and researching hose assemblies according to customers’requirements and international safe standards; Tested 100% against SAE J1401 before shipment.
Features
|
Pressure test |
No leakage in 2 min under pressure of 19.6±0.48 Mpa |
|
Volumetric expansion |
Less than 0.68cm 3 /m under 6.9Mpa; less than 0.79cm3/m under 10.3Mpa |
|
Burst test |
No leakage more than 60 Mpa |
|
Low temperature |
No visible crack without magnification within 72 hr under -55 deg C |
|
Whip test |
No damage after 35 hrs’ rotating at 800rpm |
|
Tensile test |
No breakage or rupture with 2310 N tensile stress |
|
Ozone test |
No cracks when examined under 7X magnification under 50 deg C in 50Mpa±5Mpa |
|
Water absorption test |
No leakage under 60 Mpa; no damage within 50hrs; no breakage or rupture with 2080 N tensile stress |
|
Guaranteed for |
100000kms or 5years |
Packaging & Shipping
N eutral packing or as customer demands.
S hipping via sea, air or express DHL, TNT, etc.
Our Services
* High Quality and Reasonable Price
* On Time Delivery
* Free Sample
* One Year Warranty
M ain markets
Russia, America, Germany, UK, Portugal, Italy, Turkey, Brasil, Venezuela, Peru, Chile and so on, over 60 countries
FAQ
Payment: T/T or Western Union or Escrow.
