Quick Details
-
Model Number:
-
FD-139-2
-
Brand Name:
-
Fuxin
-
Material:
-
polyformaldehyde
-
Inlet Size:
-
G1/2''-1''
-
Outlet Size:
-
G1/2''-1''
-
Working pressure:
-
0.05Mpa-0.8Mpa
-
Flow rate:
-
3-45 L/Min
-
Medium:
-
Water
-
Voltage:
-
DC12V/DC24V/DC36V/AC36V/AC110V/AC220V/AC380V
-
Seal Material:
-
NBR EPDM / SILICONE
-
MOQ:
-
1 Piece
Quick Details
-
Port Size:
-
G1/2''
-
Warranty:
-
12 months
-
Place of Origin:
-
ZHE
-
Model Number:
-
FD-139-2
-
Brand Name:
-
Fuxin
-
Material:
-
polyformaldehyde
-
Inlet Size:
-
G1/2''-1''
-
Outlet Size:
-
G1/2''-1''
-
Working pressure:
-
0.05Mpa-0.8Mpa
-
Flow rate:
-
3-45 L/Min
-
Medium:
-
Water
-
Voltage:
-
DC12V/DC24V/DC36V/AC36V/AC110V/AC220V/AC380V
-
Seal Material:
-
NBR EPDM / SILICONE
-
MOQ:
-
1 Piece
Product Description

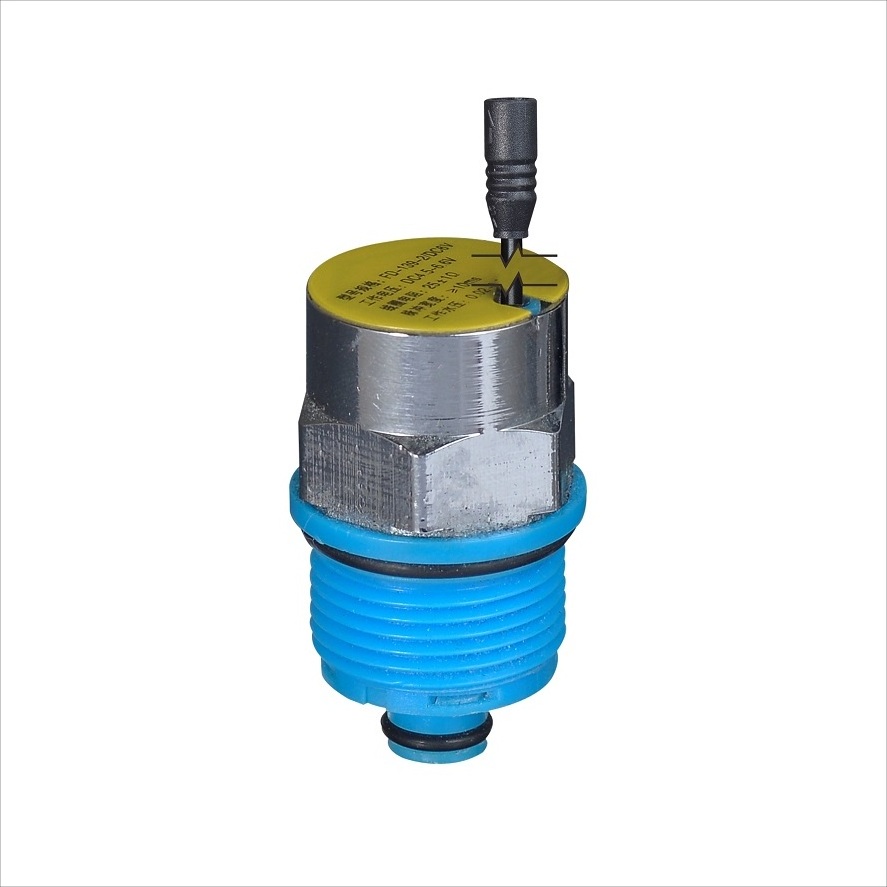

The valves are applied in the automatic system for Infrared faradic sanitary of faucet, Urinal flusher and so on. There are three cavities in the valve body to adjust the pressure ,reduce the resistance when the valve core is moving in the cavity ,also absorb the impact of medium to valve body while switching. Which improve the stability of valve and extend the service life, narrow the pulse width upon the max or min pressure . Special self-clean feature makes the easy anti-blocking ability .
Specification
|
Rated Voltage
|
DC 6V
|
DC 12V
|
DC 24V
|
||
|
Coil resistance
|
17Ω ±0.5Ω(20ºC)
|
36Ω± 5Ω(20ºC)
|
130Ω ±5Ω(20ºC)
|
||
|
Min current
|
250mA
|
300mA
|
166mA
|
||
|
Switch mode
|
DC pulse(latching type)
|
AC and DC continuous(normal closed type)
|
|
||
|
Pulse width
|
≥30ms
|
|
|
||
|
Operating pressure
|
0.02Mpa-0.8Mpa
|
|
|
||
|
Media temperature
|
1ºC--75ºC
|
|
|
||
|
Responding time
|
Open ≤0.15s close≤0.5s
|
|
|
||
